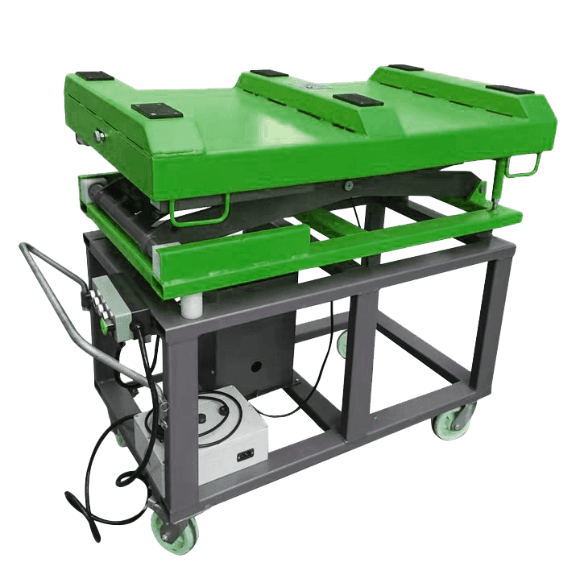

COMPARELAUNCH EV BATTERY PACK LIFTING PLATFORM TLT615D
The LAUNCH TLT615D is a compact EV battery pack lifting platform optimized for workshops with limited space.
It serves perfectly for EV battery pack replacements and routine maintenance.
The ergonomic design includes a mechanical safety lock and a durable tubular steel
build to ensure safe and efficient lifting operations.
- Country of Origin: China
- Working for battery-pack removal and used as specialty lifting bracket.
- Easy to lift and lower with electrical controller, secured by mechanical safety lock.
- Durable and rigid tubular steel features tear resistance, high abrasion resistance, shock absorption buffer.
- The maximum lifting weight is 1500kg, and the maximum lifting height is 1850mm.
| Name | - |
|---|---|
| Supply Voltage | AC 220V 50Hz |
| Operating Voltage | DC 24V |
| Power | 2.2kw |
| Rated Weight | 1500kg |
| Lowest Height | 1200mm |
| Highest Height | 1850mm |
| Platform Width | 800mm |
| Platform Length | 1380mm |
| Ascending Time | ＜30S |
| Descending Time | ＜40S |
