Brand: UltraTecno
COMPAREMachine High-Power Ultrasonic Cleaning

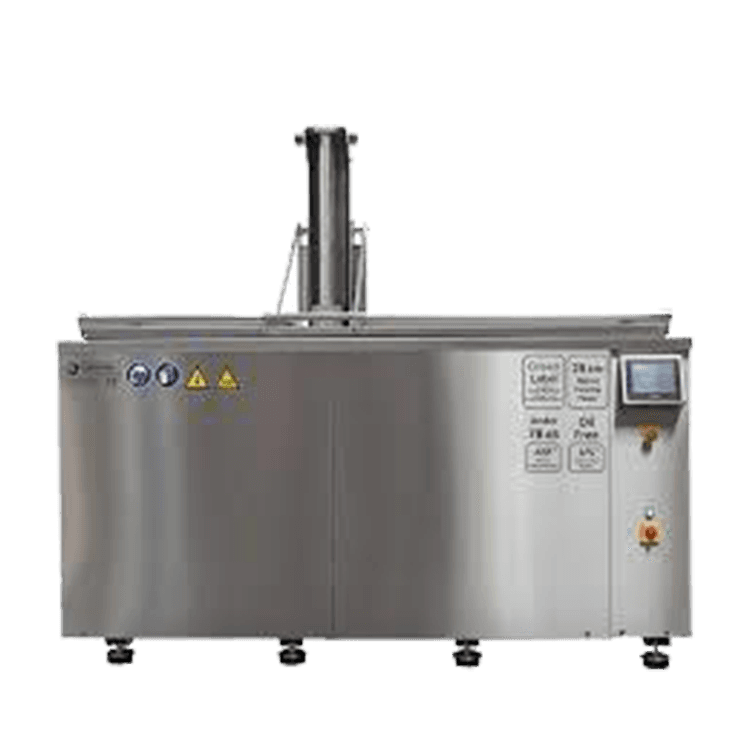

The ULTRATECNO ACM-3000NW is categorized as a High-Power Ultrasonic Cleaning Machine, representing the definitive solution for comprehensive industrial cleaning processes. This machine is engineered specifically for large components, providing generous usable dimensions of 1565 mm x 1350 mm x 1000 mm. The total volume capacity is 3,644 L, with the main tank volume reaching 3,295 L. To achieve and maintain optimal cleaning performance, it is crucial to ensure at least 100–150 mm of free space around the parts to guarantee proper ultrasonic diffusion and prevent overloading.
- MODEL:ULTRATECNO ACM-3000NW
- Country of Origin:Italy
• Advanced Noise Reduction: It integrates the patented ARF® (Acoustic Reduction Filter) System, successfully reducing noise levels to <78 dB(A).
• Highly Efficient Oil Separation: Features the LFS® (Laminar Flow System) for oil separation, which utilizes an auxiliary tank and the floating skimmer FOE®. The LFS® system includes a stainless-steel EBARA CDX recirculation pump.
• Digital Power Control: Equipped with a Digital and synchronised 28 kHz ultrasonic generator offering 15 power levels and 4 frequency-sweeping modes.
• Intuitive User Interface: A multilanguage, inset 7” colour HMI touch screen allows for manual and automatic preset cycles, alongside full parameters customization.
• Smart Management Functions: The software includes tools such as a Cleaning chemical calculator, Energy consumption monitor, and a comprehensive Preventive maintenance schedule program.
• Durable Construction: Built with Full stainless-steel construction (AISI 304L, with 3 mm tank thickness). Transducer plates are made from AISI 316L and are immersed and side-mounted.
• Safety and Insulation: Features an automatic, insulated top lid with a 60 mm insulation and an NBR seal, complete with an anti-drop safety lock. It also includes an inductive safety water level sensor and 50 mm thick thermal and acoustic insulation.
| Name | - |
|---|---|
| Technical Specification | Value and Source Details |
| Ultrasonic Frequency | 28 kHz. |
| Ultrasonic Power | 10.000 W (10 sets, each containing 16 ceramic transducers). |
| Electric Heating System | 24 kW (4 ceramic heaters in stainless-steel housing). |
| Lifting Platform | Hydraulic system with vertical agitation function, offering a maximum load of 1.000 kg. |
| Tank Construction Material | AISI 304L, 3 mm tank thickness. |
| Temperature Sensor | PT 100. |
| Transducer Plate Material | AISI 316L, immersed and side-mounted. |
| External Dimensions / Weight (with Lid Open) | 2255 × 2180 × 3280 mm / 1,800 kg |
