Brand: SPANESI
COMPARESPANESI Universal Jig System
Model : Universal Jig System
Country of Origin : Italy

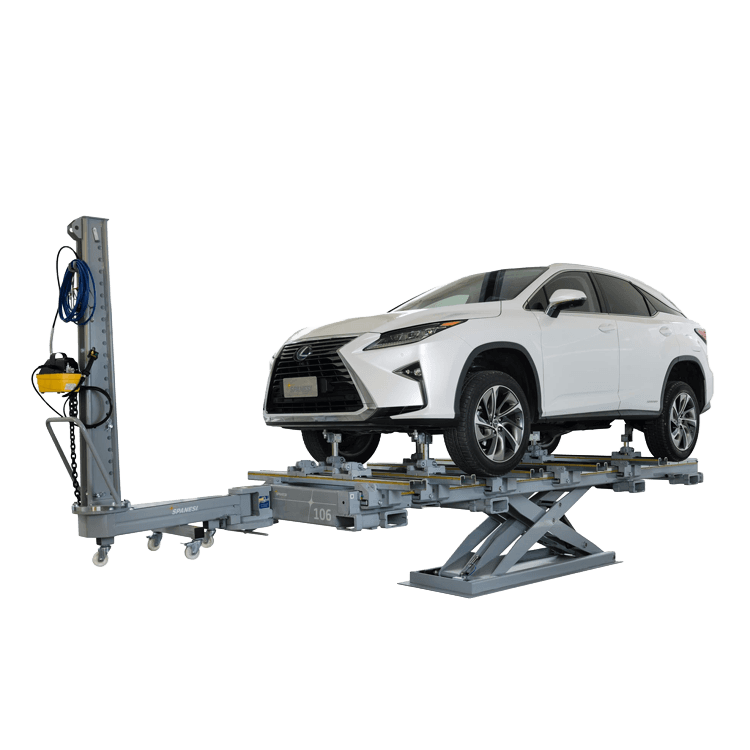

The SPANESI Universal Jig System is a professional vehicle body straightening and chassis repair solution designed to restore damaged vehicles to original OEM specifications with maximum precision. Combining lifting, pulling, and structural repair in a single workstation, it is an ideal solution for modern collision repair centers and body shops.
Equipped with a powerful 6-ton pulling tower with 360° pulling capability, the system allows technicians to repair structural damage from any direction. It also supports integration with the SPANESI Touch Electronic Measuring System for real-time structural measurements, ensuring faster repairs, greater accuracy, and improved workshop productivity.
Professional Body Repair System
Designed for repairing small and medium structural damage while restoring vehicle chassis to OEM specifications.
360° Pulling Tower
Heavy-duty pulling column with 6-ton pulling force, allowing repairs from any angle around the vehicle.
Real-Time Electronic Measuring
Compatible with the SPANESI Touch measuring system for live X, Y, and Z structural measurements during pulling operations.
Universal Clamping System
Supports both universal and OEM-specific clamps for secure vehicle positioning and accurate repairs.
Above & Below Floor Installation
Available with Minibench above-floor systems or Ponybench BT Plus below-floor installations to suit different workshop layouts.
Electro-Hydraulic Operation
Powered by a reliable electro-hydraulic lifting system with a remote control unit for smooth and safe operation.
Wide Vehicle Compatibility
Suitable for passenger cars, SUVs, 4×4 vehicles, and light commercial vehicles.
Compact Space-Saving Design
Provides maximum repair capability while occupying minimal workshop space.
| Name | - |
|---|---|
| APPLICATION | Vehicle body straightening and chassis repair |
| LIFT CAPACITY | Up to 3,500 kg (depending on model) |
| LIFT TYPE | Electro-hydraulic pantograph lift |
| MOUNTING | Above-floor or below-floor installation |
| COMPATIBLE SYSTEMS | SPANESI Touch Electronic Measuring System |
| CONSTRUCTION | Heavy-duty steel structure |
| DIMENSIONS | Vary depending on model |
| SYSTEM TYPE | Universal Jig Body Repair System |
| MATERIAL | Heavy-duty steel |
| ADJUSTABILITY | Universal & OEM-specific clamping system |
| USE | Body repair, chassis straightening, structural repair |
| CERTIFICATIONS | OEM Compatible |
| PULING FORCE | 6 Ton |
| ACCESSORIES | Pulling tower, universal clamps, support buffers, control unit |
| Base Length | 1912 mm (Minibench) / 2210 mm (Ponybench BT Plus) |
| Base Width | 700 mm (Ponybench BT Plus) |
| Base Height | 100–108 mm (depending on model) |
| Maximum Load Capacity | 3,500 kg |
| Maximum Pulling Force of Tower | 6 Ton |
| Tower Rotation Angle | 360° |
| Air Pressure | Not Required |
