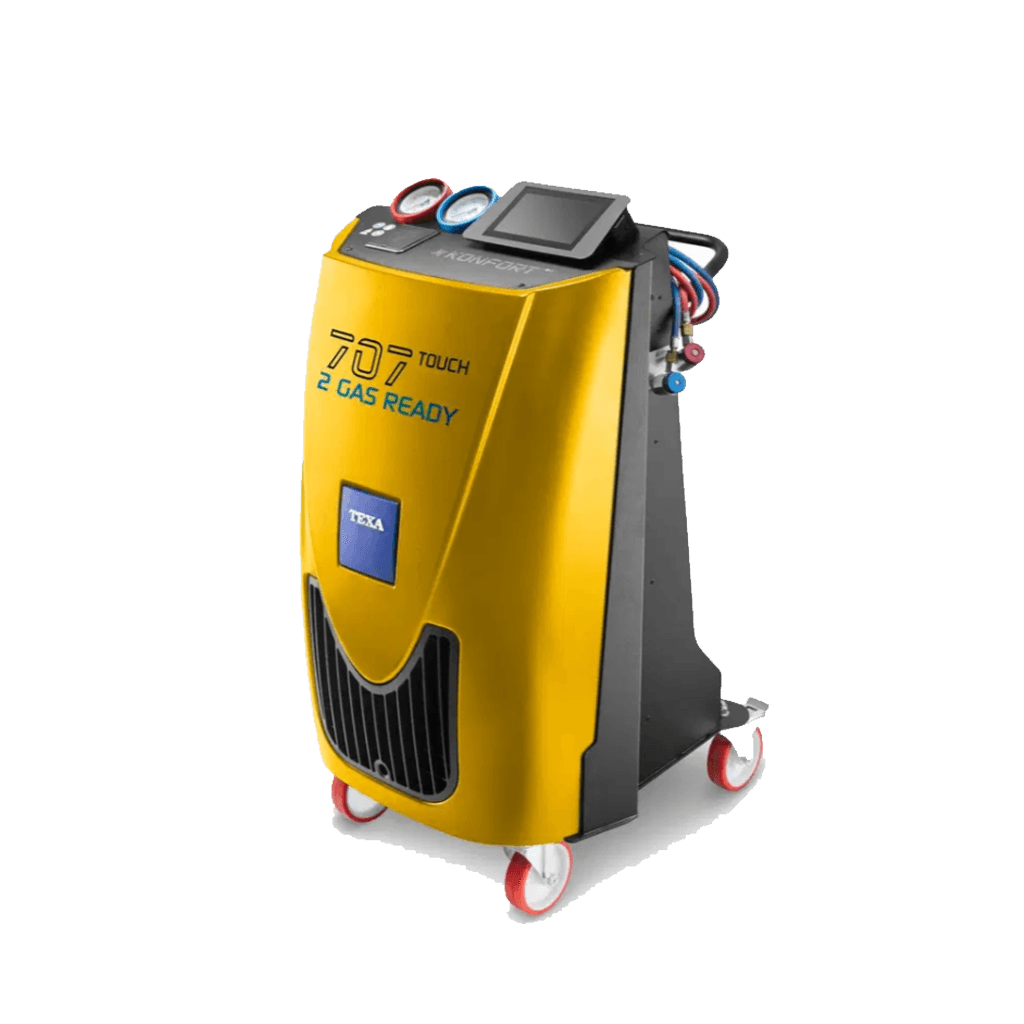

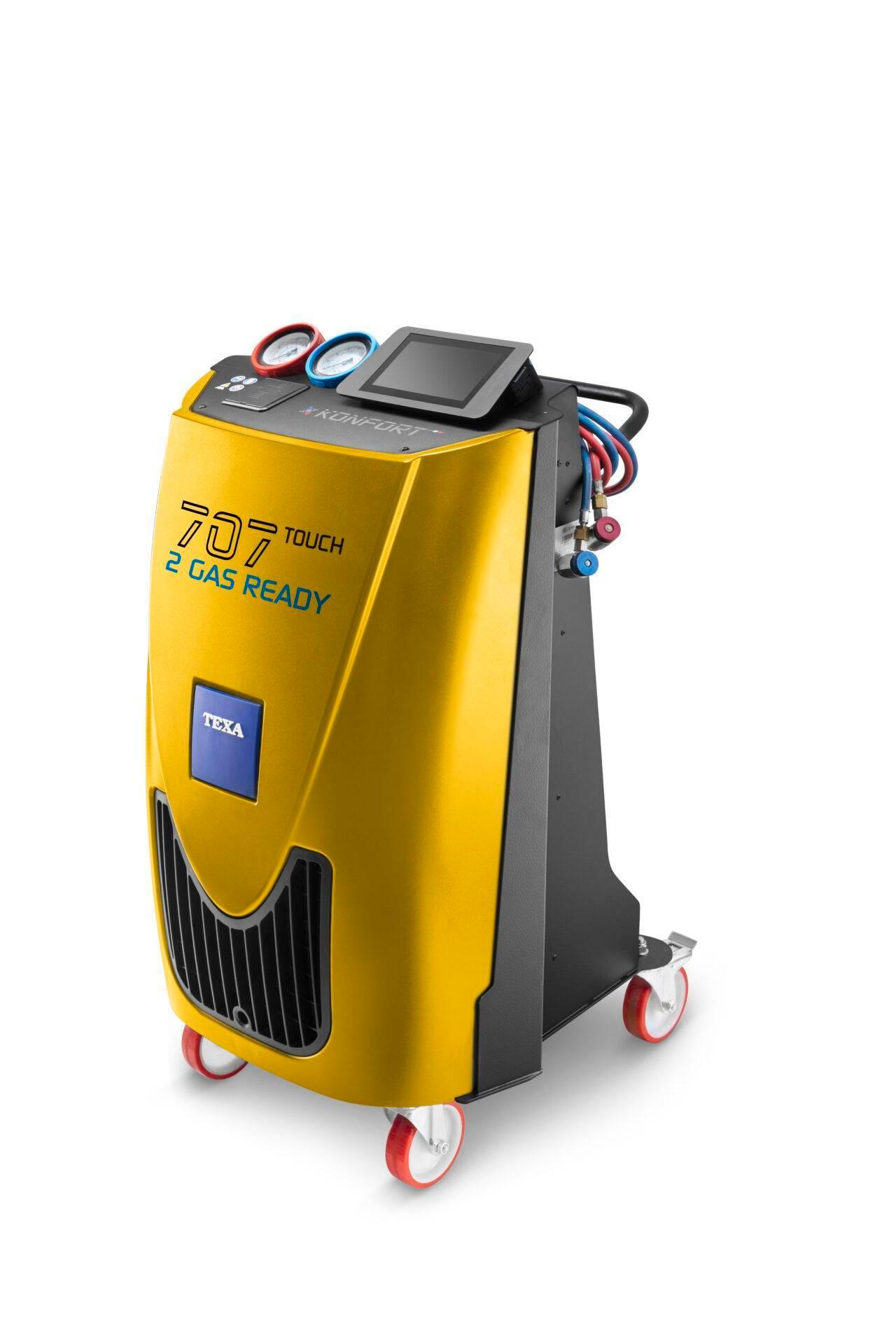

COMPARETEXA FREON CHARGING MACHINE 707 TOUCH
The KONFORT 707 TOUCH is a user-friendly yet advanced air-conditioning servicing station
designed for R1234yf (and optionally R134a). Highlight features include a 7″ glove-compatible touchscreen,
fully automatic functions (leak detection, refrigerant recovery,oil/UV tracer injection),
and portability enhanced by an SD-based database and caster wheels—available in standard or Off-Road
versions with enhanced stability for outdoor use .
- Country of Origin: ITALY
- Compatible with R1234yf refrigerant (R134a optional).
- 7″ multi-touch color screen, glove-friendly, Android-based.
- Automatic leak detection and high-efficiency refrigerant recovery (>95%) .
- Timed oil and UV tracer injection, plus maintenance logging and service alerts.
- 10 kg refrigerant tank with a single-stage 100 l/min vacuum pump.
- Stable and mobile: features scale-lock system, 4 caster wheels; Off-Road version adds foam-filled wheels and front metal bar for uneven terrain.
- Multi-language interface, SD card service/database management, automatic line-length compensation.
| Name | - |
|---|---|
| Display | 7” TFT IPS 1024×600 400CD |
| GPU | Qualcomm© Adreno™ 308 Graphics Processing Unit (GPU) with 64-bit addressing |
| Touch | Capacitive touch panel, USB/12C interface |
| CPU | SC200R Series Snapdragon QCM2150 Quad-core ARM Cortex-A53 64-bit CPU @ 1.3 Ghz STM32F103 – ARM Cortex M3 32-bit CPU |
| RAM | 2 GB LPDDR3 |
| HAM:Hard disk | 16 GB eMMC |
| Operating system | Android 10.0 |
| Audio peripheral | devices 1 speaker CES-703116-28PM 8ohm 2W |
| Wi-Fi | 802.11a/b/g/n, 150 Mbps, STA/AP/P2P 2402-2480 MHz 5 Ghz |
| Bluetooth | 2.1+EDR/3.0/4.1 LE/4.2 BLE 2400-2483,5 MHz |
| RF power | 20 dBm |
| I/O peripheral | devices USB 2.0 x1 |
| Electronic refrigerant scale (Precision) [g] | ± 10kg |
| Electronic oil and UV tracer scales (Resolution) [g] | - |
| High pressure gauge [mm] | Ø 80 |
| Low pressure gauge [mm] | Ø 80 |
| Tank capacity [kg] | 10kg |
| Vacuum pump | 100 l/m, double stage, final pressure 0,05 mbar |
| Recovery efficiency | > 95 % (SAE J2788 / SAE J2843) |
| Power supply voltage [V] | 230 V |
| Frequency (Hz) | 50 (50/60) |
| Power [W] | 770W |
| Operation temperature (TS) [°C] | 5 ÷ 40 |
| Storing temperature [°C] | – 25 ÷ 60 |
| Primary battery | 3 V CR2032 |
| Secondary battery | NiMh 2,4 V – 600 mAh |
| Pressure transducer | Kl. 1.0 |
| Service pipes’ length [m] | 3 m |
| Filter assembly | 1 combined filter + mechanical filter |
| Compressor (airtight) [cc] | 12 |
| Ambient temperature sensor (Resolution) [°C] | 1°C |
| Refrigerant purity [kg] | 150 (SAE J2099) |
| Maximum operating pressure (PS) [bar] | 20bar |
| Safety device calibration [bar] | 20bar |
| Dimensions [mm] | H: 1095 L: 598 P: 706 |
| Weight [kg] | 75kg |
