Brand: CARBON ZAPP

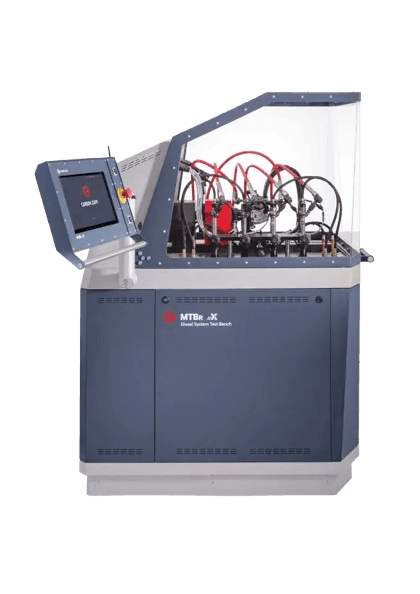

COMPAREMTBR|X-A Advanced Diesel & Gasoline Injection Test Bench
Model: MTBR | X-A
Country of Origin: Greece
Integrated Platform for Diesel & Gasoline Injection Systems Testing and Programming
The MTBR | X-A is a comprehensive solution designed for advanced automotive service centers, combining mechanical power, high diagnostic accuracy, and modern cloud technology to test and program fuel injection systems for passenger cars, trucks, and heavy-duty engines.
The machine is equipped with an advanced Air Cooling system, ensuring continuous operation for extended working hours. With a maximum operating pressure of up to 2800 bar, it is fully prepared to handle the latest CRDi, GDi, and EU6 technologies—both current and future.
Injector Testing & Programming :
- Simultaneous testing and coding of up to 4 injectors within 6 to 12 minutes .
- Supports: Diesel injectors (CRi / CRiN) Gasoline direct injection injectors (GDi) .
- Full support for advanced EU6 technologies, including: ( VCC – NCC – iART – F2X ) .
- Testing of HEUI and EUI/EUP systems (via Cambox module) according to OEM standards .
Pump Testing :
- Testing of diesel pumps (CRp) .
- Testing of gasoline pumps (GDp) for all major brands .
- The first system capable of fully diagnosing and testing GDi pumps .
- Support for advanced EU6 pumps and heavy-duty pump applications .
Advanced Diagnostics & High Accuracy :
- Live Response Time measurement at every test phase .
- BIP measurement for solenoid coils in heavy-duty systems .
- NOP (Nozzle Opening Pressure) measurement for HEUI injectors without dismantling .
- Suction performance and low-pressure testing for precise pump fault diagnosis .
CloudX Smart Technology :
- Real-time database updates via internet connection .
- Direct factory diagnostics and support (X-Connect) .
- Remote test report generation .
- Multi-device management from a single platform .
- Full cloud-based backup of data and reports .
Design & User Interface :
- 15.6-inch touchscreen running on Android OS .
- Ergonomic design with 240° component accessibility .
- Intelligent organization for hoses and accessories .
- Dedicated waste fluid drainage area .
- Smart maintenance alerts for filters and oil service intervals .
Supported Brands & Systems :
The MTBR | X-A supports testing and programming of components from leading global brands, including:
Bosch – Denso – Delphi – Continental / VDO – Caterpillar – Cummins – John Deere – Isuzu – Hino – Komatsu .
Supported Brands & Systems :
The MTBR | X-A supports testing and programming of components from leading global brands, including:
Bosch – Denso – Delphi – Continental / VDO – Caterpillar – Cummins – John Deere – Isuzu – Hino – Komatsu .
| Name | - |
|---|---|
| Model Code | CZ-008713 |
| Power Supply | Three-phase, 50–60 Hz |
| Dimensions (W x D x H) | 750 x 700 x 1610 mm |
| Weight | 465 kg |
| Operating Pressure | Up to 2800 Bar |
| Motor Speed | 0–6,500 rpm |
| Motor Power | 12.5 HP with thermal protection |
| Max Operating Temperature | 50°C |
| Test Oil Tank Capacity | 38 liters |
| Waste Oil Tank Capacity | 15 liters |
