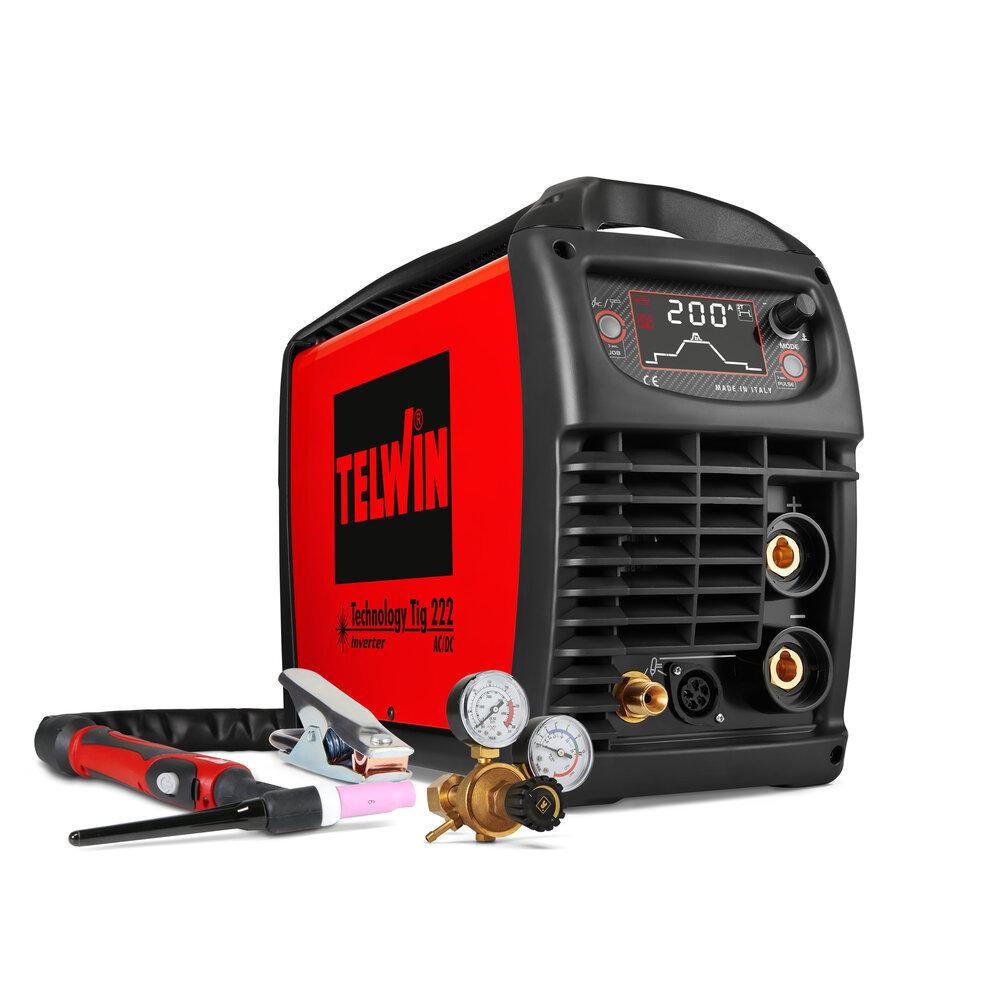

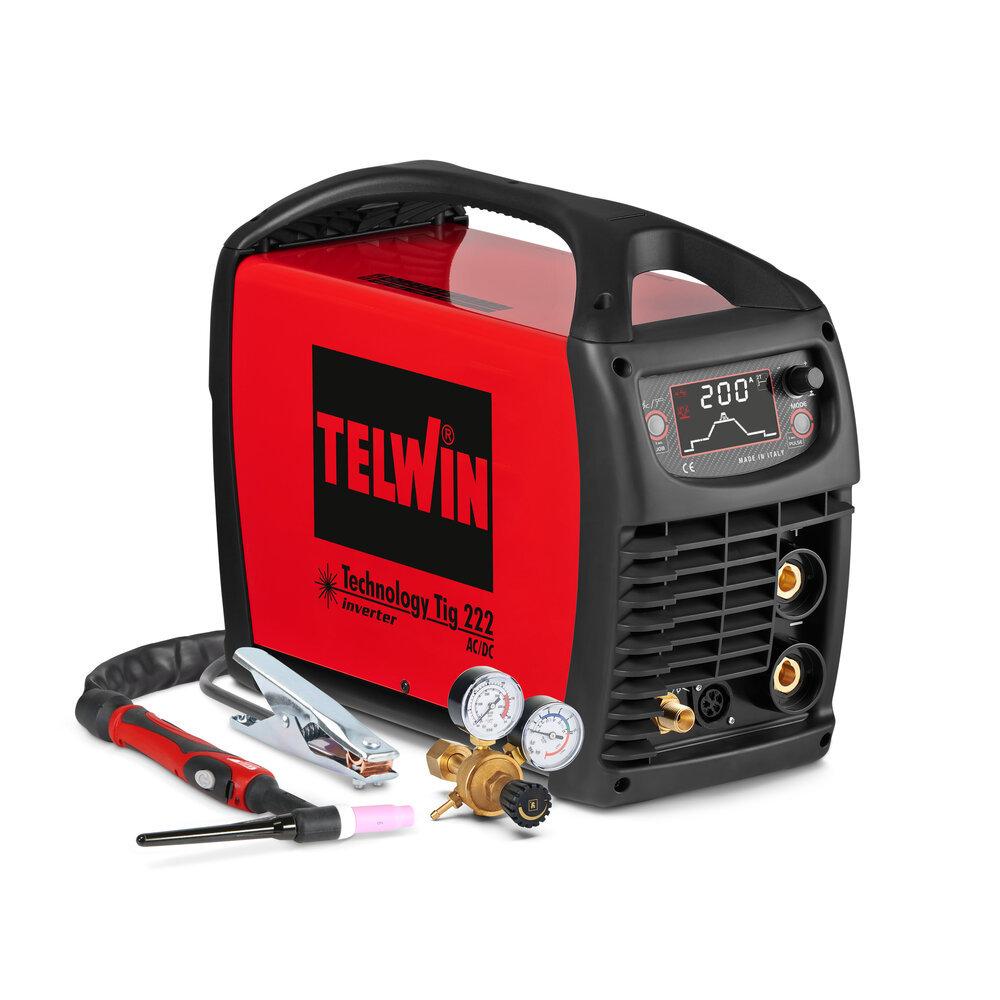

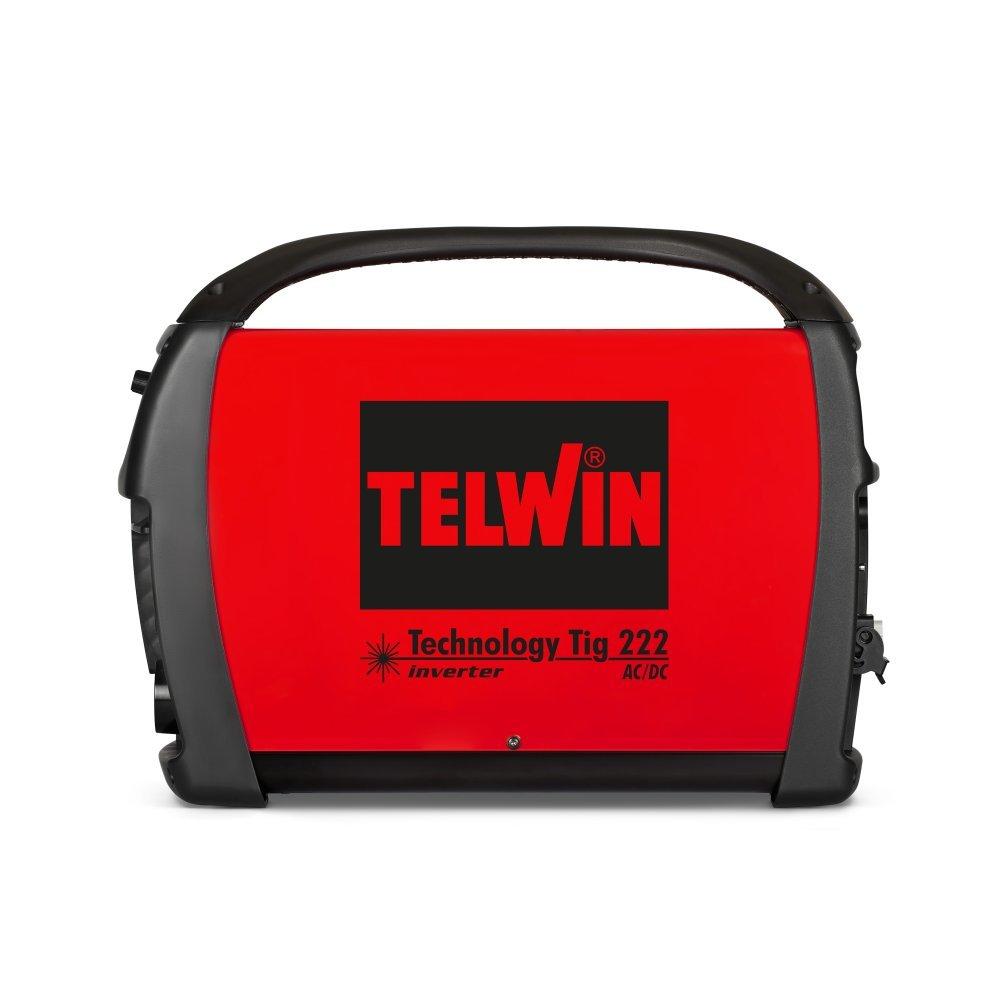

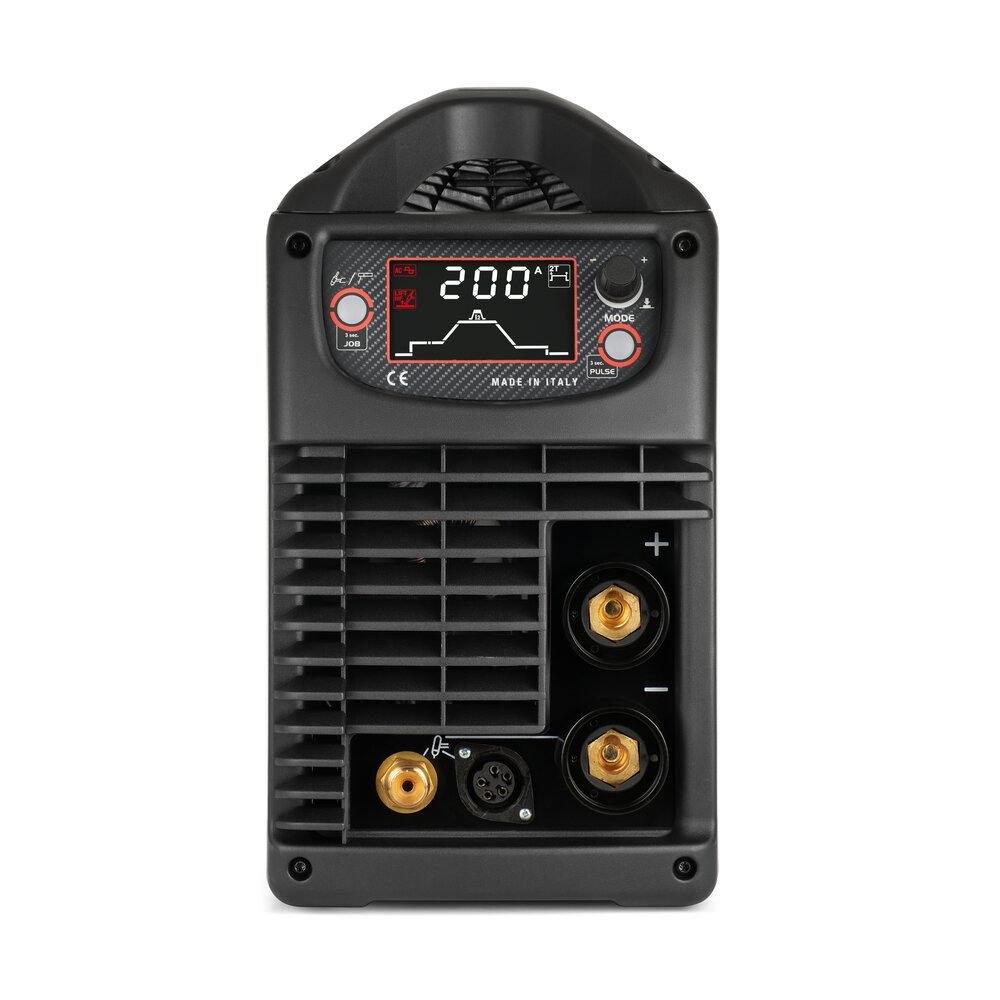

COMPARETELWIN Technology TIG 222 AC/DC + ACC
This inverter welding machine supports TIG welding in AC/DC (HF or LIFT ignition),
TIG PULSE (PULSE and EASY PULSE), and MMA. It includes advanced utility functions such as THINSPOT for
spot welding thin sheets, and MIX AC-DC to preheat thick workpieces before AC welding.

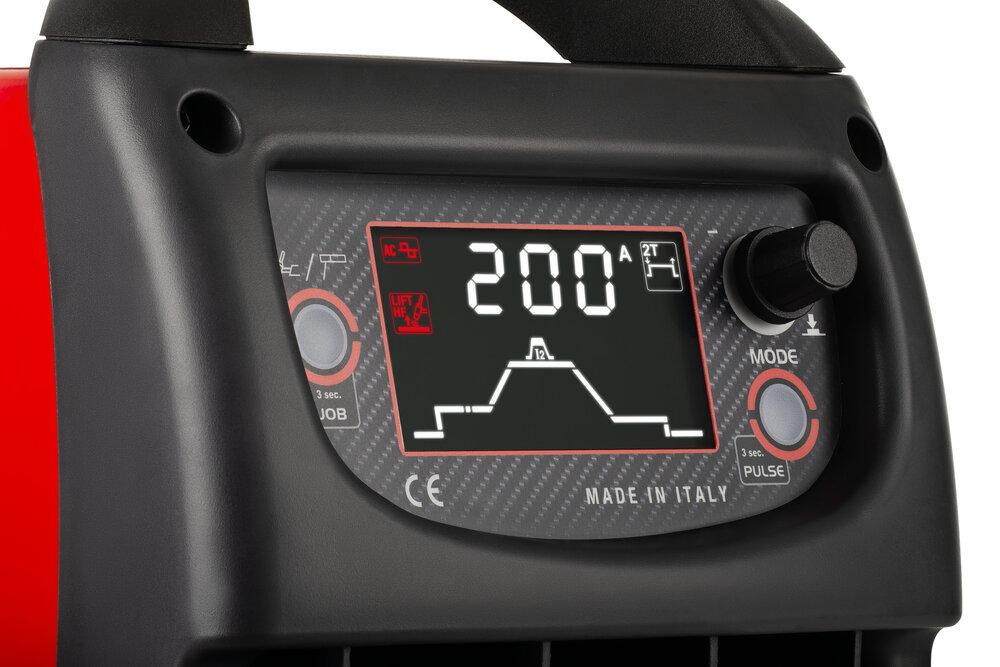

The LCD interface simplifies programming and parameter adjustment, and users can save up to 10 custom
welding programs. It is compatible with PRO torches and supports remote control operation.
Built with a dedicated air-tunnel ventilation system to shield electronics from dust and ensure
long-term reliability.
- Country of Origin : Italy
- TIG and MMA modes including PULSE and EASY PULSE for ultra-thin welding .
- Advanced THINSPOT and MIX AC-DC utilities .
- LCD display for simplified parameter control and interaction .
- 10 customizable welding programs .
- Remote control compatibility and PRO torch support.
- Dust-safe air tunnel cooling system .
- Multiple protections: thermal, over/under voltage, overcurrent, VRD device .
| Name | - |
|---|---|
| MAIN VOLTAGE | 230V SINGEL PHASA |
| MAIN FREQUENCY | 50/60HZ |
| MAX NO_LOAD VOLTEGE | 66V |
| RATED POWER x= 50% | 0.69 |
| MAX SPOT WELDING | 33A |
| CURRENT CONTROL RANGE (DC) | 5-200A |
| CURRENT | 125A |
| ABSORBED CURRENT 60% | 24A |
| MAX ABSORBED POWER | 5.2KW |
| ABSORBED POWER at 60% | 3.8KW |
| EFFICIENCY | 82% |
| D.USBLE ELECTRODES | 1.6-4MM |
| PROTECTION DEGREE | IP23 |
| DIMENSIONS | 47x19x35 cm |
| WEIGHT | 16.55 kg |
