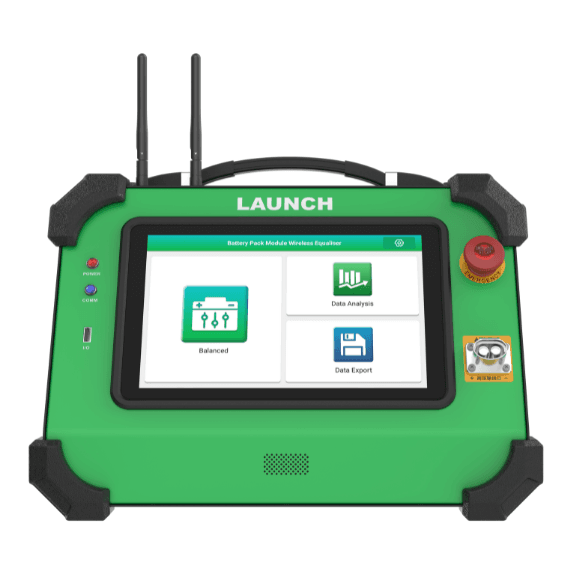

COMPARELAUNCH EV Battery Pack Cell Wireless Equalizer(24 Channels) EVB624
The EVB624 is a modular, wireless battery cell equalizer for EV battery packs,
designed to balance up to 24 individual cells using separate charging and discharging units,
with wireless communication for expandable networked balancing.
It ensures uniform cell voltage after battery replacement or routine maintenance.
- Country of Origin: China
Charging Unit + 6 Discharging Units
- Separate charging and discharging design, with balancer channels freely combinable, supporting simultaneous balancing of up to 24 battery cells. (Each discharge unit supports 4 channels).
- Wireless networking communication facilitates the expansion of balancer channel quantity.
- Compatible with all common lithium battery types on the market.
- Supports two modes: charge&discharge balance and discharge balance.
- High-precision voltage acquisition module for safe and precise balancing control.
- Each battery cell is wired separately and independently, effectively avoiding connection errors.
- Safety Protections:
Overvoltage, undervoltage, overcurrent, output short circuit, reverse connection, overtemperature, etc.
| Name | - |
|---|---|
| Display | 10.1″ LCD touch screen |
| Input Power | AC 90–264 V, 50/60 Hz |
| Voltage Range (Charge/Discharge) | DC 2.89–4.2 V |
| Voltage Accuracy | ≤±1% at 48–112 V DC; ≤±0.5 V at 10–48 V DC |
| Current Range | 1–10 A |
| Current Accuracy | ≤±1% @ output > 4 A |
| Channels | 4 per unit, total up to 24 |
| Connectivity | Wi-Fi, Bluetooth |
| Dimensions | 215 × 100 × 130 mm |
