Brand: SPANESI

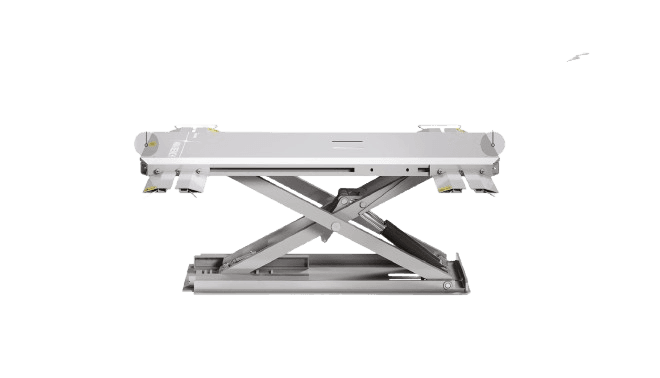

COMPARESpanesi Minibench Automotive Straightening & Lifting Bench
Model : Spanesi Minibench
Country of Origin : Italy
The Spanesi Minibench is a professional multi-purpose straightening and lifting bench designed for fast and accurate repair of light to medium collision damage. Its compact yet rugged construction saves valuable workshop space while delivering exceptional performance. Equipped with a hydraulic pantograph lifting system and a 6-ton pulling tower with 360° rotation, it provides maximum flexibility during structural repairs. When integrated with the Spanesi Touch electronic measuring system, it enables real-time vehicle body measurements to restore vehicles to OEM specifications.
Multi-Purpose Workstation
Functions as a vehicle lift, straightening bench, or a complete repair station when combined with the Spanesi Touch measuring system.
Compact Space-Saving Design
Built with a durable compact frame that maximizes workshop space without compromising performance.
6-Ton Pulling Force
Equipped with a professional pulling tower delivering up to 6 tons of pulling force with full 360° rotation.
Pantograph Hydraulic Lift
Provides stable, smooth, and reliable lifting for efficient repair operations.
Real-Time Electronic Measuring
Compatible with the Spanesi Touch measuring system for live structural measurements during the repair process.
Wide Vehicle Compatibility
Suitable for passenger cars, SUVs, 4×4 vehicles, and light commercial vehicles.
Easy Vehicle Loading
Features low-profile loading ramps and rounded edges for safe and convenient vehicle access.
Sliding Floor Plates
Includes four movable floor plates to accommodate different vehicle lengths.
Universal Clamping System
Supports both universal and OEM clamps without requiring additional trolleys.
Separate Electro-Hydraulic Control Unit
The control unit is positioned separately for easier access and improved operator convenience.
| Name | - |
|---|---|
| APPLICATION | Collision repair, body straightening, lifting, and structural repair |
| LIFT CAPACITY | 2,200–2,500 kg |
| LIFT TYPE | Hydraulic Pantograph Lift |
| MOUNTING | Floor-mounted |
| COMPATIBLE SYSTEMS | Compatible with SPANESI Touch Electronic Measuring System and OEM Clamps |
| CONSTRUCTION | Heavy-duty compact steel structure |
| DIMENSIONS | 1912 mm length × 100 mm minimum height × 1350 mm maximum lifting height |
| SYSTEM TYPE | Hydraulic Straightening Bench |
| MATERIAL | High-strength steel |
| ADJUSTABILITY | Adjustable sliding side plates and multi-direction pulling tower |
| USE | Vehicle lifting, body repair, chassis straightening, and maintenance |
| CERTIFICATIONS | CE Certified |
| PULING FORCE | 6 Ton |
| ACCESSORIES | Hydraulic lift, electro-hydraulic power unit, pulling tower, 4 support buffers, 4 sliding floor plates, 4 universal clamps |
| Base Length | 1,912 mm |
| Base Width | Approx. 1,000 mm |
| Base Height | 100 mm (minimum) |
| Maximum Load Capacity | 2,500 kg |
| Maximum Pulling Force of Tower | 6 Ton |
| Tower Rotation Angle | 360° |
| Air Pressure | Not Required |
