Brand: HAMMER
COMPAREchassis straightening device
Model : Ul-906
Country of Origin : China

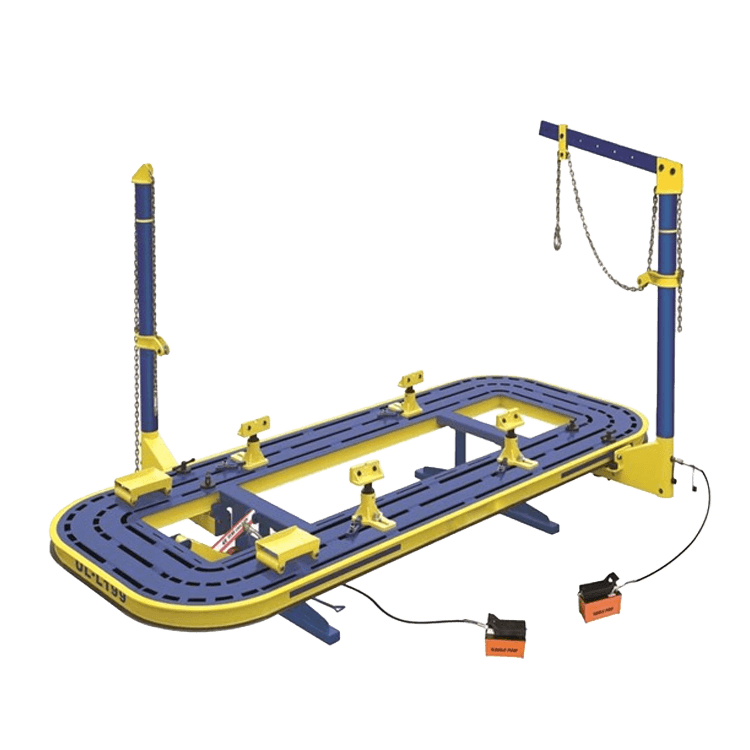

The HAMMER Chassis Straightening Bench is a heavy-duty vehicle frame repair system designed for accurate chassis straightening and structural collision repair. Suitable for passenger cars, pickup trucks, and minibuses, it provides exceptional stability, lifting capacity, and pulling performance for professional body repair workshops.
Built with a high-strength steel structure, the system features a 360° rotating pulling tower, durable hydraulic lifting platform, and maintenance-free hydraulic pump to ensure safe operation, reliable performance, and efficient repairs across a wide range of vehicle chassis.
Heavy-Duty Chassis Repair
Designed for repairing and straightening different types of vehicle chassis with high precision.
Wide Vehicle Compatibility
Suitable for passenger cars, pickup trucks, and minibuses.
360° Pulling Tower
Heavy-duty pulling tower rotates up to 360° for flexible pulling from multiple directions.
High-Strength Steel Construction
Manufactured from premium steel to provide superior strength, stability, and long service life.
Advanced Hydraulic System
Equipped with a high-quality hydraulic unit that delivers reliable lifting performance with minimal maintenance requirements.
Flexible Clamping System
Specially designed clamps provide secure vehicle positioning and accommodate different chassis designs.
Hydraulic Lifting Platform
Features a heavy-duty hydraulic platform with flexible connections for safer and more convenient vehicle operation.
Stable Base Design
60 mm thick rectangular platform with multiple anchoring points for maximum rigidity during pulling operations.
| Name | - |
|---|---|
| APPLICATION | Chassis straightening and collision repair |
| LIFT CAPACITY | Up to 3.5 Tons |
| LIFT TYPE | Hydraulic Lift |
| MOUNTING | Floor Mounted |
| COMPATIBLE SYSTEMS | Passenger Cars, Pickup Trucks, Vans & Microbuses |
| CONSTRUCTION | Heavy-duty Rectangular Frame |
| DIMENSIONS | 5200 × 2140 × 520 mm |
| SYSTEM TYPE | Hydraulic Chassis Straightening System |
| MATERIAL | High-strength Steel |
| ADJUSTABILITY | 360° Rotating Pulling Towers with Adjustable Clamps |
| USE | Chassis Straightening, Collision Repair & Vehicle Lifting |
| CERTIFICATIONS | — |
| PULING FORCE | 95 kN |
| ACCESSORIES | Hydraulic Power Unit, Pulling Towers, Clamps & Flexible Connections |
| Base Length | 5200 mm |
| Base Width | 2140 mm |
| Base Height | 520 mm |
| Maximum Load Capacity | 3.5 Tons |
| Maximum Pulling Force of Tower | 95 kN |
| Tower Rotation Angle | 360° |
| Air Pressure | — |
