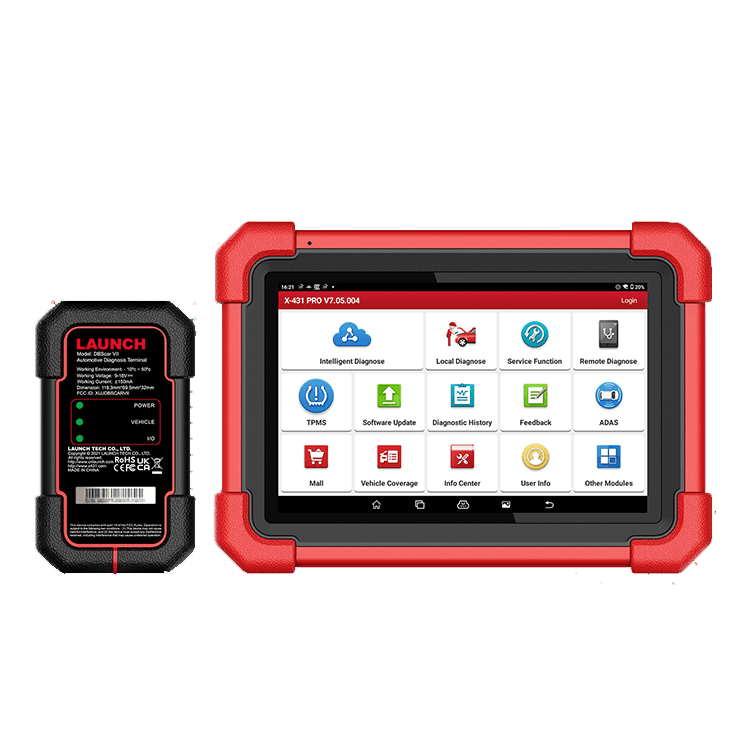

LAUNCHX-431 PRO3 SE

Key Features & Capabilities

Operating System & Processor:

Android 10.0 with a Quad-Core 2.0 GHz processor for fast and smooth diagnostics.

Memory & Storage:

4GB RAM and 64GB internal storage for handling large datasets and advanced software without lag.

Display:

10.1-inch touchscreen with 1280×800 resolution, sunlight-readable, protected by Gorilla Glass for durability.

Battery:

High-capacity 6300mAh (47.88 Wh) battery for extended operation.

Connectivity & Protocols:

Supports Wi-Fi dual-band, Bluetooth, USB, and wired connections, covering modern protocols including CAN, CAN FD, and DoIP.

Diagnostic Functions:

DTC reading and clearing, live data streaming, bi-directional control, coding, and matching.

Guided Functions:

Step-by-step instructions for specific vehicle models for precise service execution.

Remote Diagnosis:

Supports remote diagnostics for efficient workflow management.

Add-on Module Compatibility:

Works with VSP-600 (Videoscope), BST360 (Battery Tester), X-431 TSGUN (TPMS programming), and ADAS calibration tools.

Service Functions

The device offers 39 comprehensive service functions, including but not limited to:

• Oil Maintenance Reset
• Brake Reset
• Injector Coding
• ABS Bleeding
• Battery Matching
• Steering Angle Reset
• Electric Throttle Relearn
• TPMS & Tire Sensor Reset
• ADAS Calibration
• Seat Calibration & Sunroof/Window Programming



Add-on Modules

• VSP-600:

Videoscope for inspecting tight spaces in the engine or vehicle components without disassembly.

• BST360:

Battery tester for checking battery, charging system, and alternator condition.

• X-431 TSGUN:

TPMS programming and sensor diagnostics.

• O2-2 Scopebox:

Oscilloscope for advanced electrical signal analysis.

• S2-2 Sensorbox:

Sensor performance simulation and testing.

• X-431 Key Programmer:

Key programming module.

• Wi-Fi Printer:

Instant wireless report printing.

• X-431 ADAS Calibration Tools:

Advanced driver-assistance system calibration.

These modules transform the X-431 PRO3 SE into a complete vehicle diagnostic system, capable of handling everything from basic system checks to advanced programming and calibration.
