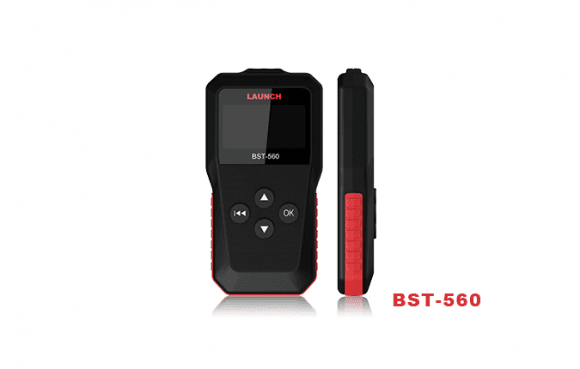

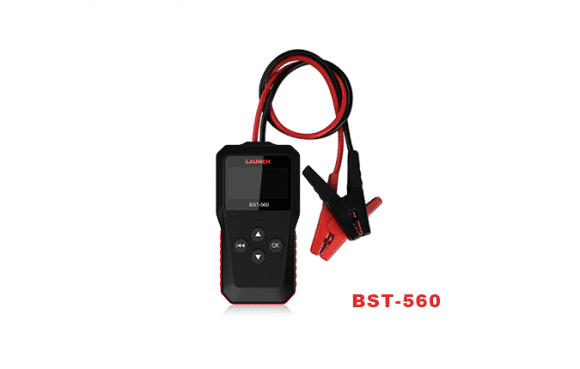

COMPARELAUNCH Portable BST-560/BST-860 Batter Tester
BST560 and BST860 support vehicle battery health check,
starting test and charging test without heating, discharge, spark and operating risks.
BST860 has built-in thermal printer which can print the test report immediately.
Country of Origin: China
- Generate the health report within 3 seconds and intuitively display all data on the color screen.
- The reports can be printed anytime by built-in thermal printer. (BST-860 only)
- Available to the batch inspection of battery by testing continuously and repeatedly.
- Applicable vehicles include car, motorcycles, lawn mowers and other gardening machines, group 31, commercial vehicles 4D/8D.
- Safety always comes first. No heating, no discharge, no spark and no operating risks.
- 6 kinds of tests
- Ripple Detection
- Battery Test
- Electric Current Test
- Starter Test
- Charging System Test
- Voltage Test
- Supported battery standards
CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, GB
- Applicable Battery Types
- BST-860: 12V and 24V batteries (Lead-acid battery, Gel battery and AGM battery)
- BST-560: 12V batteries (Lead-acid battery, Gel battery and AGM battery)
| Name | - |
|---|---|
| Working Temperature | -18℃~50℃ |
| Test Cable | 80mm standard cable |
| Case Material | ABS acid-proof plastic, industrial case design |
| Dimension | 188*95*41 mm |
| Weight | 450g |
| Display Screen | 4-line graphic LCD display with backlight |
