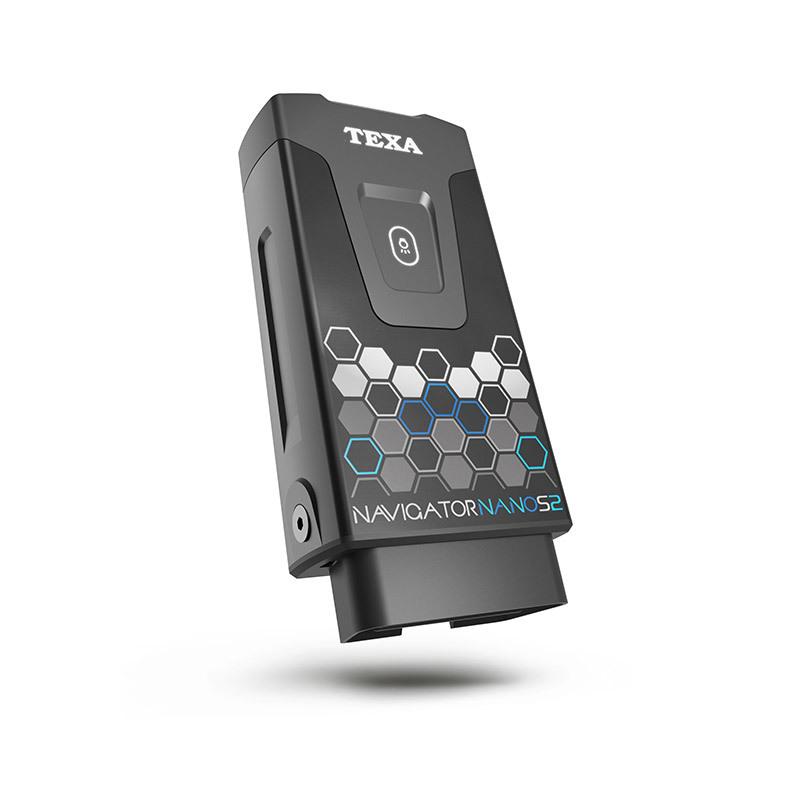

COMPARETEXA NAVIGATOR NANO S2
The Navigator Nano S2 is TEXA’s ultra-compact diagnostic interface designed
for cars and light commercial vehicles.
Equipped with advanced Bluetooth 5.0, CAN-FD, and DoIP support,
it provides full wireless diagnostics through the IDC6 software—all packed into a rugged,
pocket-sized design.
Country of Origin: ITALY
- Ultra-compact, rugged diagnostic interface for cars & light commercial vehicles.
- Powered by CORTEX M7 STM32H735AGI6 processor and 8 GB eMMC storage.
- Bluetooth 5.0 Class 1 wireless connection for fast, reliable pairing.
- Supports CAN-FD (3 channels) and DoIP diagnostics.
- Works with IDC6 CAR software for full diagnostics, coding, and service resets.
- Built-in RGB LEDs and buzzer for clear status feedback.
- Powered directly from vehicle’s 12 V OBD socket (uses ~250 mA).
| Name | - |
|---|---|
| PROCESSOR | CORTEX M7 STM32H735AGI6 up to 550 |
| RAM | 16 Mbit flash NOR organized as 1M x 16bit |
| WIRELESS PERIPHERAL DEVICES (built-in) | Bluetooth 5.0 class1 Operating frequency band: 2402 … 2480 MHz Maximum radio frequency power transmitted: 10 dBm |
| INTERNAL BATTERY | Lithium polymer, single cell 3.7 V 130 mA/h LP401429-PCM-LD |
| ABSORPTION | 12 V direct voltage , 250 mA |
| OPERATING TEMPERATURE | 0 °C … 40 °C |
| OTHER FUNCTIONS | Diagnostic connector: OBD Supported protocols: Blink codes K, L (with 60 mA current protection) ISO9141-2, ISO14230 CAN_FD 11898-2:2016 3 channels CAN ISO 11898-3 CAN SAE J2411 Single Wire SAE J1850 PWM e VPW Ethernet DoIP ISO13400-3 Power supply connector: OBD |
| Internal Flash memory | 1MB FLASH |
| External Flash memory | 16 Mbit flash NOR organized as 1M x 16bit |
