Brand: HAMMER

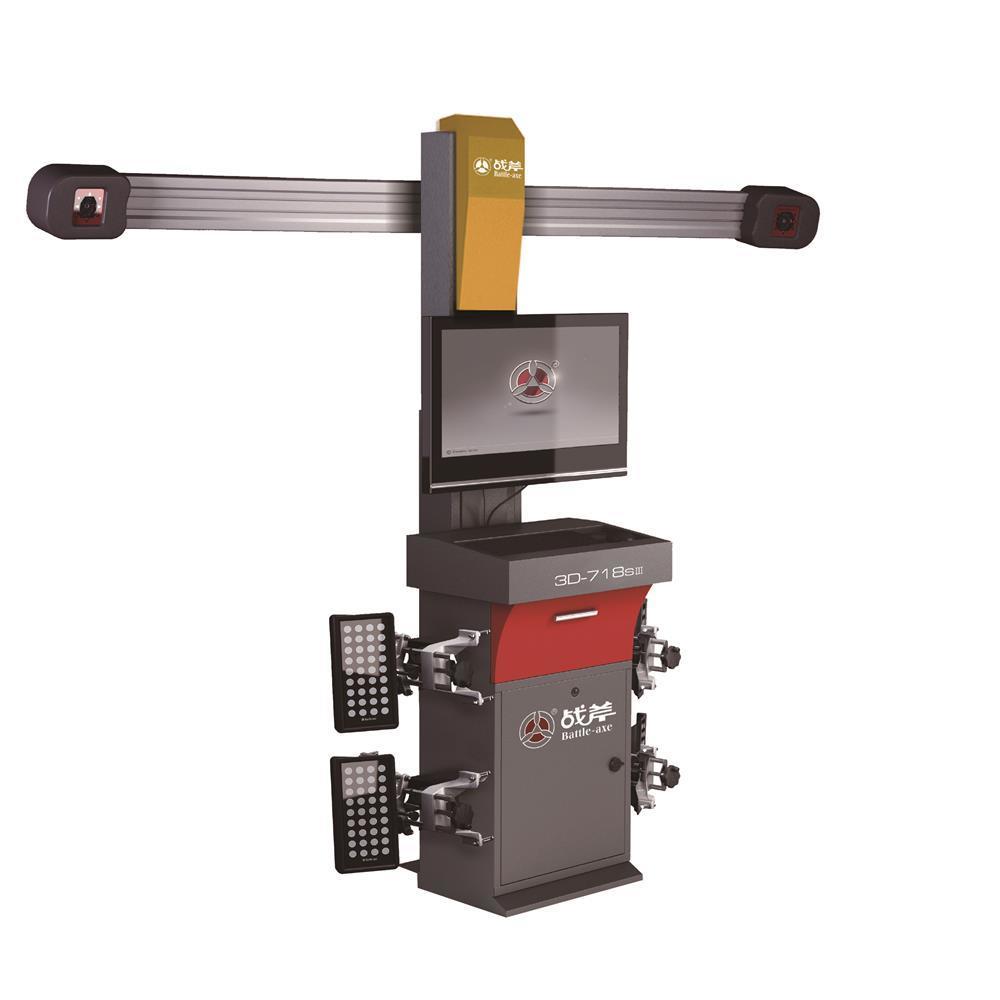

COMPAREHAMMER 3D-718s III
The 3D-718s III Wheel Aligner is a state-of-the-art alignment system featuring 3D
measurement technology with 5-megapixel cameras.
It measures the vehicle body with superior accuracy and balance,
utilizing two high-resolution cameras and four durable reflectors.
Unlike traditional systems, this technology eliminates electronic sensors,
reducing errors and minimizing maintenance needs.
Quick-install clamps and built-in camera calibration data simplify setup and ensure reliable operation.
The software is user-friendly, completing measurements in just two minutes.
The system supports multiple languages, including Arabic, and provides 3D animations for technicians,
making angle adjustments clear and precise.
A comprehensive car database is included with lifetime free updates.
- Country of Origin: China
3D Wheel Alignment Technology
- Based on measuring the vehicle body for greater accuracy and stability.
Camera Measurement System
- Equipped with two high-resolution 5 MP cameras working with four high-quality targets (reflectors), representing a revolution in alignment measurement methods.
Reflectors
- No electronic circuits or sensors, eliminating failures and preventing reading errors common in older systems.
- Durable and impact-resistant.
- The system can operate even with only two reflectors in case two are damaged or lost.
Clamps
- Quick–lock clamps for easy and fast installation.
Calibration
- Calibration data is stored inside the cameras, so no recalibration is required even when cameras are replaced.
Software
- User-friendly interface allows completing the alignment measurement in just 2 minutes.
Device Features
Data Display
- Shows front and rear wheel alignment readings on a single screen.
- Dynamic 2D vehicle display, allowing technicians to choose their preferred view.
3D Vehicle Display
- Provides animated 3D graphics to guide technicians step-by-step through different alignment adjustments.
Comprehensive Vehicle Database
- Includes a complete database of all vehicle types.
- Lifetime free updates included.
Advantages of 3D Alignment Technology
- No electronic sensors.
- No need for regular calibration.
- Low maintenance cost.
- Higher wheel alignment precision for maximum accuracy.
| Name | - |
|---|---|
| Camber angle measurement accuracy | ± 200.05° |
| Caster angle measurement accuracy | ± 200.03° |
| Toe-in angle measurement accuracy | ± 200.03° |
| Toe-out angle measurement accuracy | ± 200.05° |
| Operating voltage | 220V |
| Camera resolution | 5 Megapixels |
