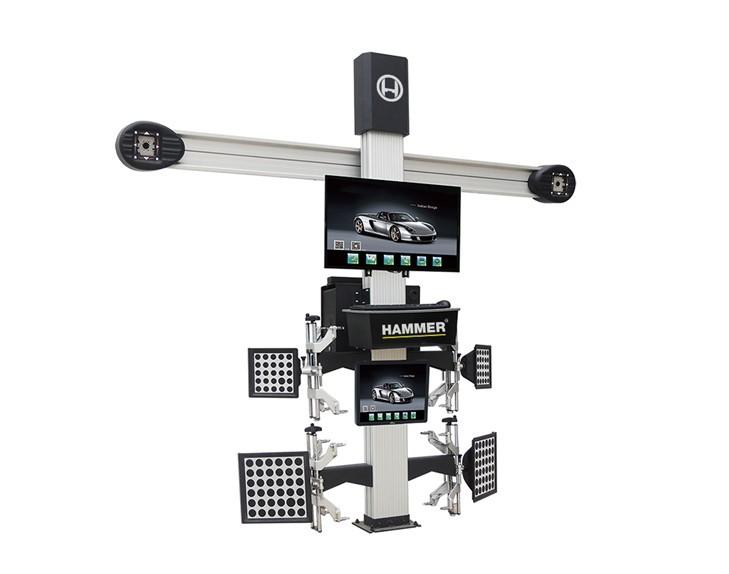

HAMMER G 300

3D Measurement Technology:

Relies on measuring the vehicle body, which is more accurate and stable.

Camera-Based Measurement System:

Uses two high-resolution 5-megapixel cameras that work with 4 high-quality reflectors, representing a revolution in measurement methods.

Reflectors:

Contain no electronic circuits or sensors, reducing malfunctions and preventing reading errors that are common with electronic circuits in older devices.

Calibration:

The device rarely requires calibration, only in very limited cases.

Software:

Easy to use — the measurement process can be completed in just two minutes.

Device Features:

Data Display:

• Displays wheel alignment readings for both front and rear wheels on a single screen.
• Dynamic 2D display of the vehicle, allowing the technician to switch between display modes.

3D Vehicle Display:

• Provides 3D animations to clearly demonstrate alignment adjustment methods for different vehicle angles in detail.

Multi-Language Support:

• Supports  Arabic and 11 other languages.

Comprehensive Vehicle Database:

• Includes a database for all vehicles, licensed by AUTODATA International.

Wheel & Chassis Dimension Measurement:

• Measures caster angle and front axles, enabling the technician to analyze and understand suspension and chassis conditions for precise wheel alignment.
• Allows measurement of chassis dimensions and comparison with vehicle data to better understand the actual condition of the chassis.
• Features mid-lift correction for easy camber angle adjustment.
• Can measure tire diameter to assess tire condition and air pressure.

Advantages of 3D Technology:

• No electronic sensors.
• No need for regular calibration.
• Low maintenance costs.
• More accurate wheel alignment compared to traditional systems.

Measurement Process:

• For most vehicles, alignment measurement is performed by rolling backward in a single step.

Wheel Diameter Reading:

• Helps the customer evaluate tire condition and air pressure.

Database:

• Supports  more than 20,000 models, with free updates for 3 years.

Unique Calibration System:

• Can detect and calibrate incorrect clamp and reflector installation during operation.

Caster Angle Measurement:

• Accurately      measures kingpin angle and caster.

Vehicle Size Measurement:

• Measures chassis dimensions, helping customers identify the actual condition of the vehicle chassis.

Measurement Results Display:

• Allows switching between different display modes according to customer preference.

Mid-Lift Functionality:

• The device can work with mid-lift operation during alignment.

Voice Guidance:

• Provides voice instructions for steps and procedures to make alignment operations easier.
