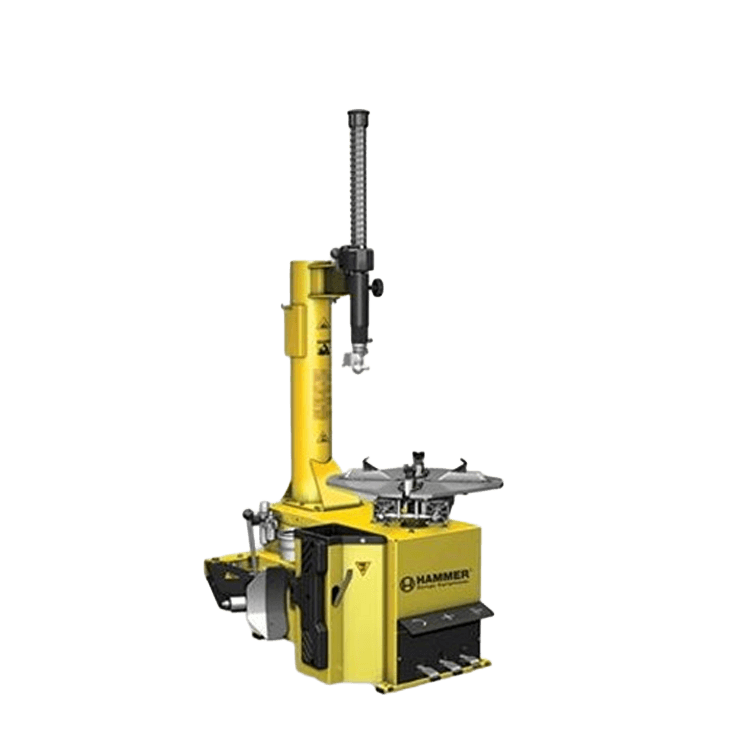

COMPAREHAMMER ETC-S1
Semi-automatic tire changer machine.
Equipped with a horizontally moving arm and suitable for cars.
Compatible with cars and motorcycles with a wheel diameter of up to 39 inches,
and rim widths ranging from 10 inches to 24 inches.
- Country of Origin: China
- Fixed vertical arm.
- Horizontal moving arm.
- Manual lock for the operating arm.
- 24-inch turntable.
- Air-operated bead breaker.
- Pedal unit designed for easy removal and maintenance.
Machine Body Advantages:
Strong and durable body, chemically treated to resist rust and weather conditions.
Air System & Mechanical Advantages:
High-quality air system components, with external parts made in Japan and a large-diameter bead breaker for superior strength.
Specially designed gearbox with specifications that outperform similar models.
Electrical Advantages:
High-quality electrical system components with a powerful, highly efficient motor.
| Name | - |
|---|---|
| Horizontal Arm Movement System | Manual |
| Maximum Wheel Width | 34 cm |
| Operating Pressure | 10 bar |
| Maximum Pressure | 3.5 bar |
| Maximum Torque | 1200 N·m |
| Operating Voltage | 220 V – Single Phase / 380 V – Three Phase |
| Motor Power | 550 / 750 W |
| Machine Dimensions | 97 × 76 × 94 cm |
| Total Weight | 233 kg |
| Maximum Wheel Diameter | 60 cm |
