COMPARELAUNCH TLT235SC

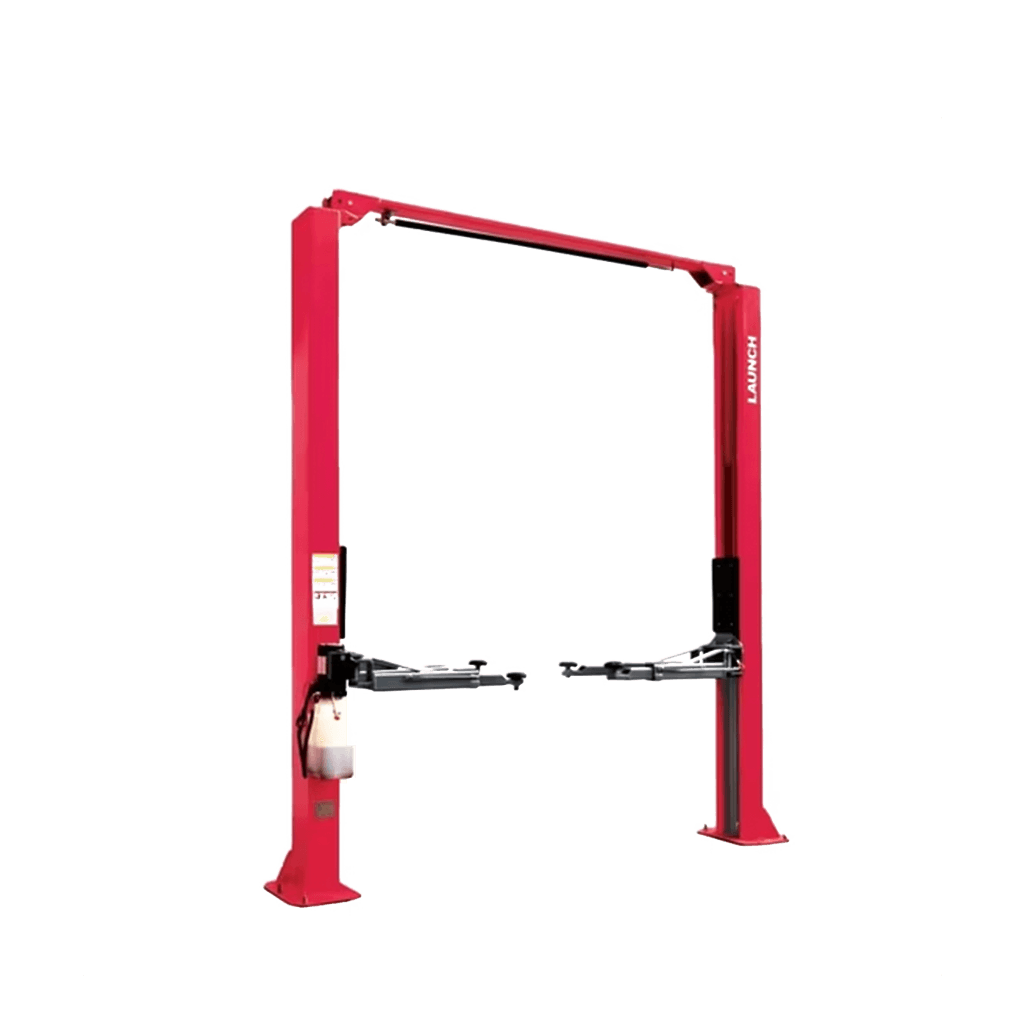

The TLT235SC is a professional-grade two-post hydraulic lift equipped with
dual cylinders and a robust chain drive system, ensuring smooth, stable lifting and lowering.
Built for durability and precision, it features:
- Symmetrical arm design
- Double-sided manual safety lock release
- Multiple safety mechanisms
Ideal for workshops servicing passenger cars and light-duty vehicles up to 3500 kg.
Country of Origin: China
- Bilateral manual safety unlocking system.
- The cable and oil pipe are fully concealed; with decent and elegant appearance.
- Double hydraulic cylinder and high strength chain drive makes stable and smooth lifting and lowering.
- Wire rope equalization system forces synchronous movement of two carriages and effectively prevents vehicle from tilting.
- 24V low voltage control box IP54 level ensures operator’s safety.
- 24V cylinder travel limit switch effectively protects cylinder and extends its lifespan.
- Door rubber pad protects car door from being damaged in collision.
- More lifting pads with different height meets the requirements for light lorries and SUVs.
- Passed 115% dynamic loading test and 150% static loading test .
- CE certificated.
- Symmetric and asymmetric installation types are optional. (For SC model)
| Name | - |
|---|---|
| Rated Load | 3500kg |
| Lifting Height | 1850mm |
| Initial Height | 110mm |
| Lifting Time | ≤50s |
| Lowering Time | ≥20s, ≤40s |
| Passing Width | 2436mm |
| Overall Width | 3400mm |
| Overall Height | 3840mm |
| Motor Power | 2.2kW |
| Motor Voltage | 3 phase/380V or Single phase/220V |
| Working Noise | ≤75dB(A) |
| Working Oil Pressure | 16MPa |
