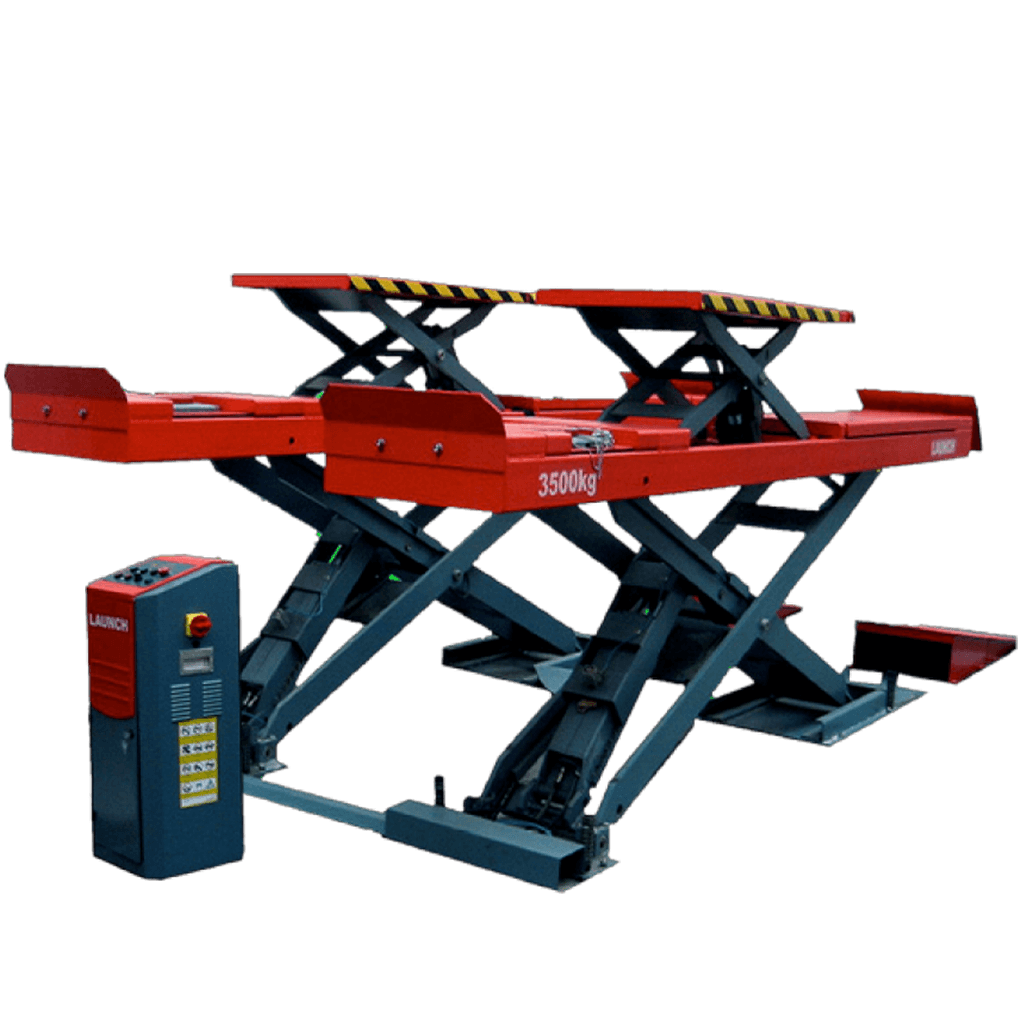

COMPAREBig Scissor Lift With Secondary Lift LAUNCH
The Launch TLT830WA is a professional-grade double-scissor lift specifically designed
for wheel alignment, servicing, and underbody inspection of passenger vehicles and SUVs.
It supports both in-ground and on-ground installation,
features advanced hydraulic safety systems, and is built with ISO and CE-certified structural integrity.
Country of Origin: China
- In-ground and on-ground installation are optional.
- Double scissors lift, with the front wheel turntable positions, rear wheel side sliding plate, and scissor-type secondary lifting, suitable for four-wheel alignment.
- Hydraulic interlocking and anti-explosion safety device make it stable and reliable in operation.
- Bilateral hydraulic synchronizing system ensures high synchronization performance.
- Widened secondary lift’s runway design, more applicable for vehicles with different wheel tracks.
- Travel limit safety device protects the machine from damage.
- Oil hose anti-explosion device.
- CE-STOP function with safety alarm beep automatically warns operators to keep a safe distance when the lift lowers to 400mm above the ground.
- All moving points adopt automatic lubricating oil-free bearings for ensuring long lifespan.
- CE certificated.
| Name | - |
|---|---|
| Rated Load | 3000kg |
| Lifting Height | 1850mm |
| Initial Height | 340mm |
| Lifting Time | ≤60s |
| Lowering Time | ≥20s |
| Runway Width | 605mm |
| Runway Length | 4500mm |
| Distance Between Two Runways | 780mm |
| Secondary Lifting Height | 450mm |
| Secondary Lifting Time | ≤30s |
| Secondary Lowering Time | ≥12s |
