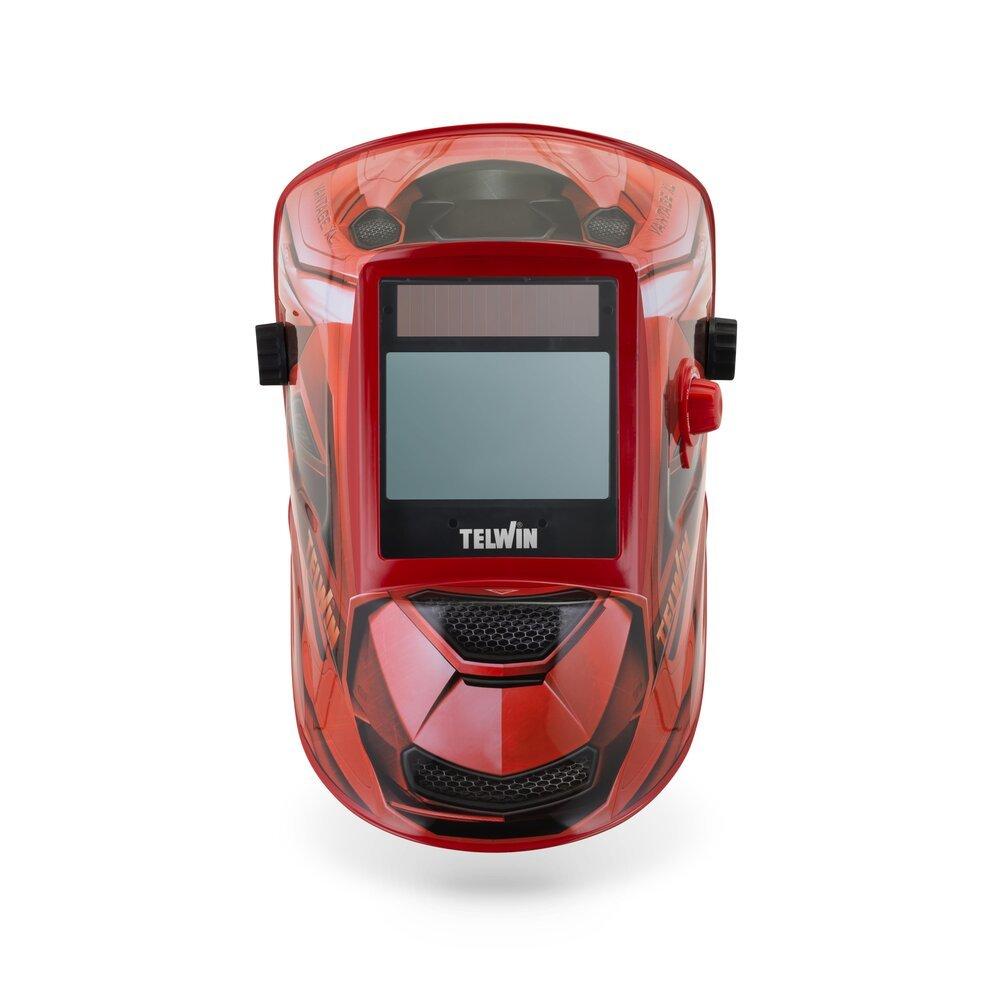

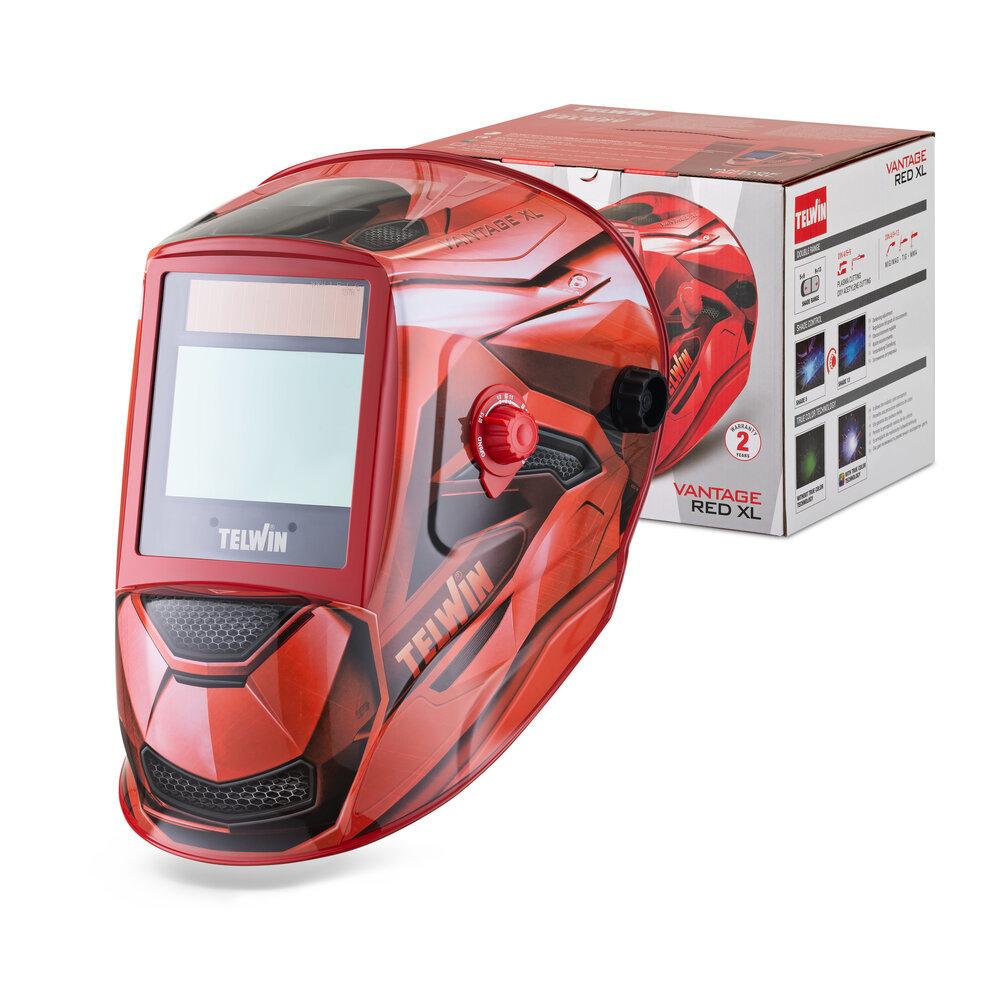

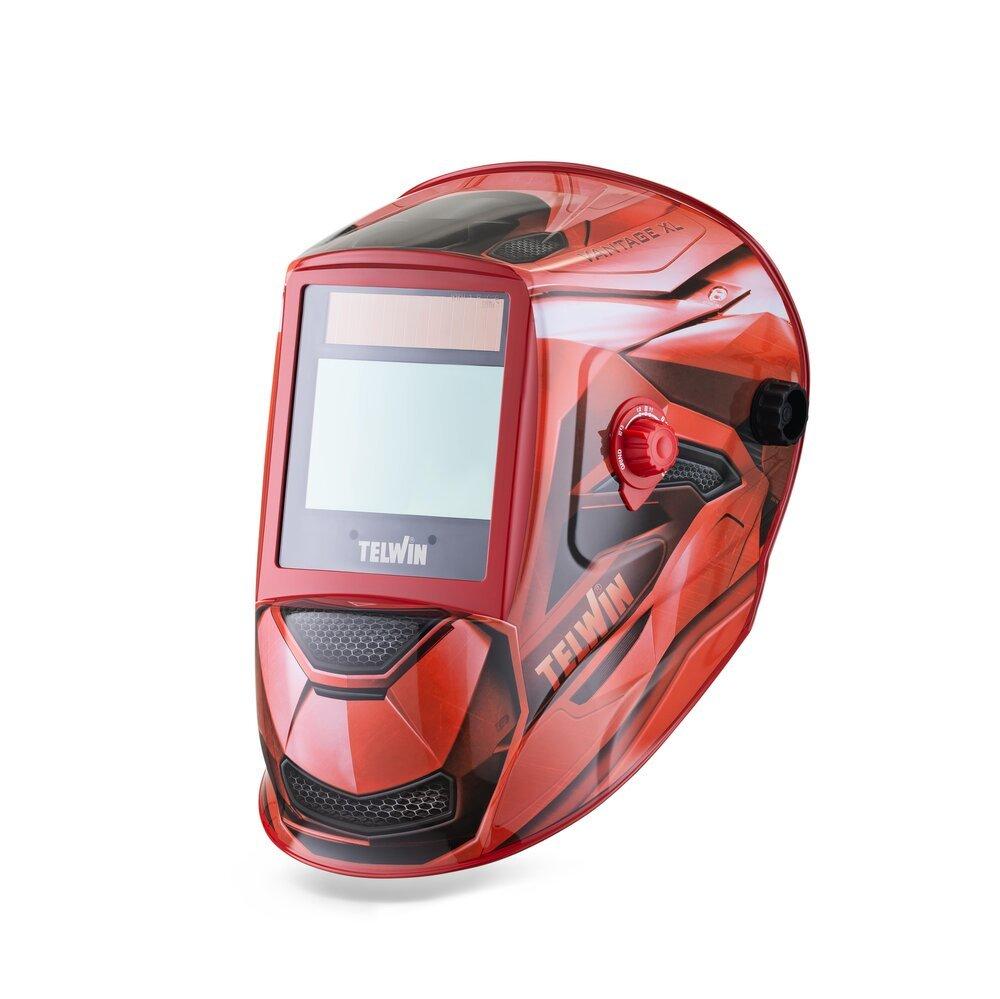

COMPARETelwin Vantage Red XL
The Telwin Vantage Red XL is an automatic self-darkening welding helmet designed for
industrial use and suitable for MMA, MIG-MAG and TIG welding (> 2 A). It features
solar-cell powered LCD filter that darkens upon arc ignition and quickly returns to transparency
when the arc is switched off, allowing hands-free operation without lifting the helmet.
It also includes an adjustable delay time and sensitivity to match the welding process,
True Color technology for more realistic color perception and reduced eye fatigue,
and a Grind mode for safe grinding operations .
- Country of Origin: Italy
- Automatic adjustable darkening filter (DIN 4/5 to 9/9 to 13) .
- True Color technology for vivid, realistic color vision .
- Dual-scale DIN adjustment and sensitivity control for different weld processes .

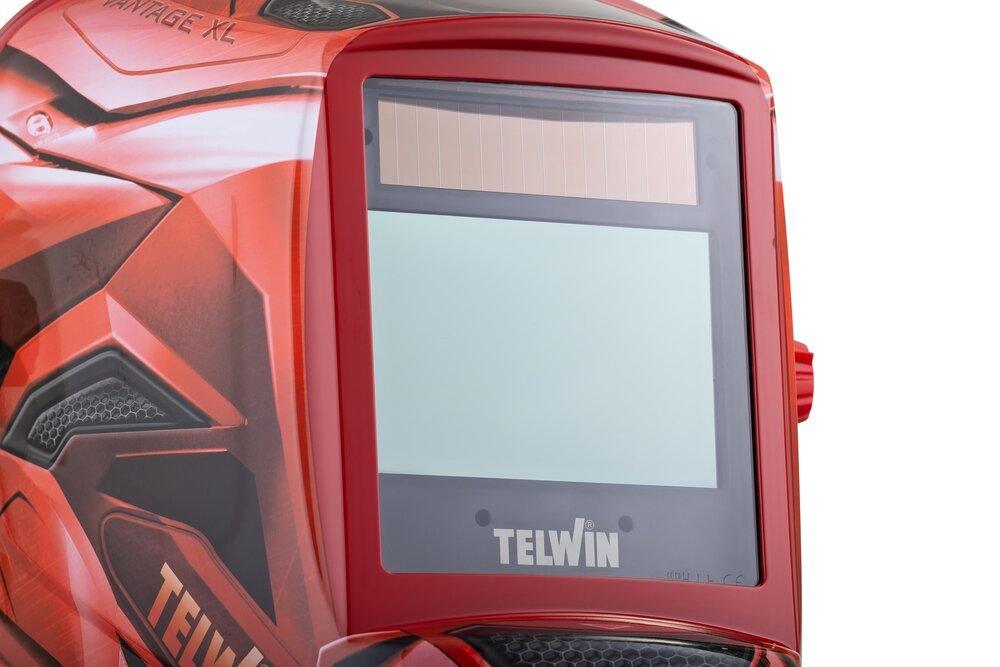

- XL-size viewing area for broader field of view .
- Four sensors for fast arc detection .
- Adjustable delay from dark to light depending on brightness .

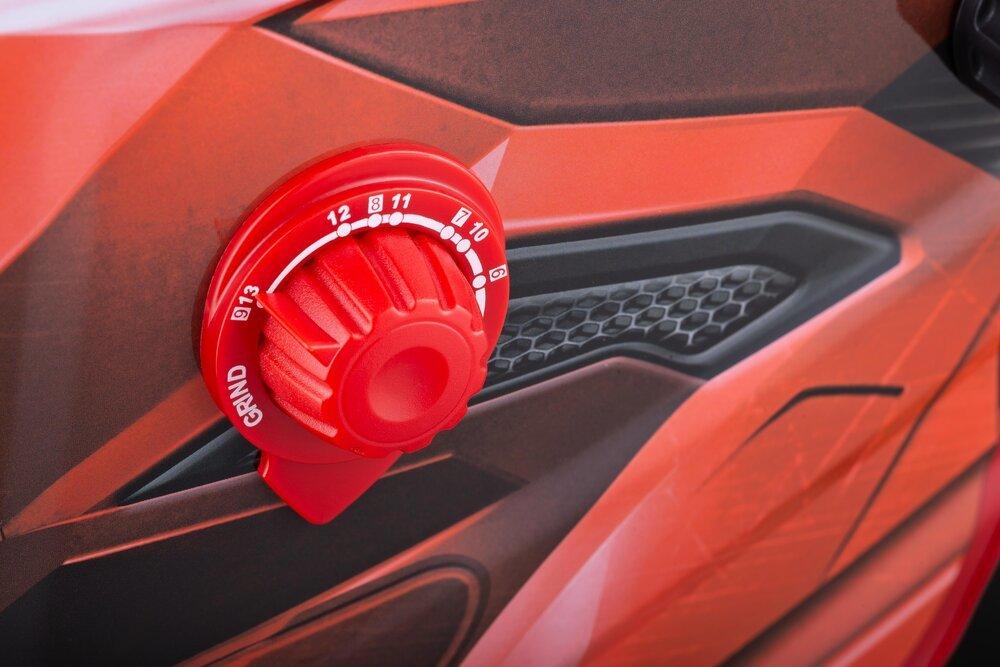

- Grind mode disables darkening for safe grinding .
- Solar-powered operation (no batteries needed) .

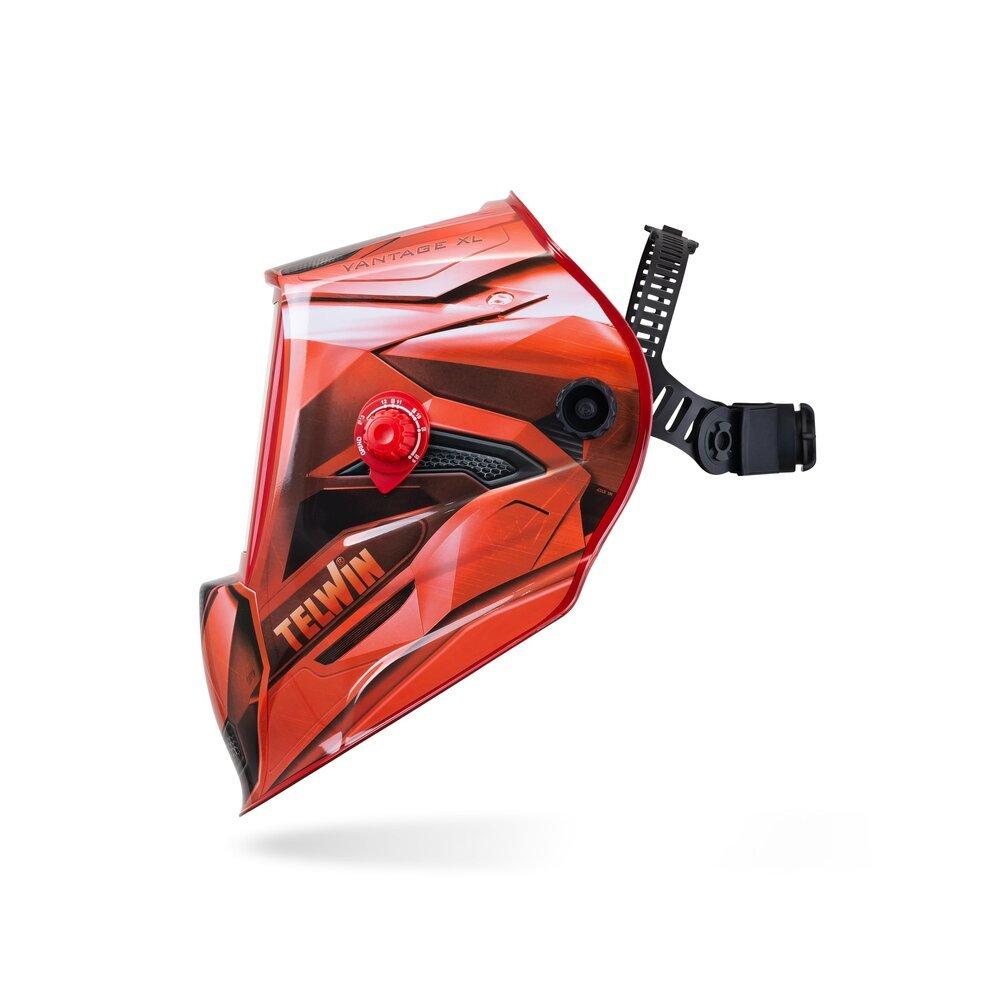

- Lightweight and comfortable with adjustable headgear .
| Name | - |
|---|---|
| TIG HELMET | >2A |
| LUMINOUS STATE | 4DIN |
| VARIABLE STATUS | 5-9/9-13DIN |
| SWITCHING TIME LIGHT-DARK | 0.1MS |
| DELAY FROM DARK TO LIGHT STATE | 0.1-1S |
| OPTIC CLASS | 1/1/1/2 |
| OPERATING TEMP | -5/+55°C |
| SENSORS | 4 |
| VIEWING AREA | 100x67MM |
| DIMENSIONS | 300x240x240 MM |
| WEIGHT | 0.520 kg |
