Brand: TELWIN
COMPARETelwin MAXIMA 230 SYNERGIC Multiprocess Inverter Welding Machine
Model : Digital Puller 5500
Country of Origin : Italy

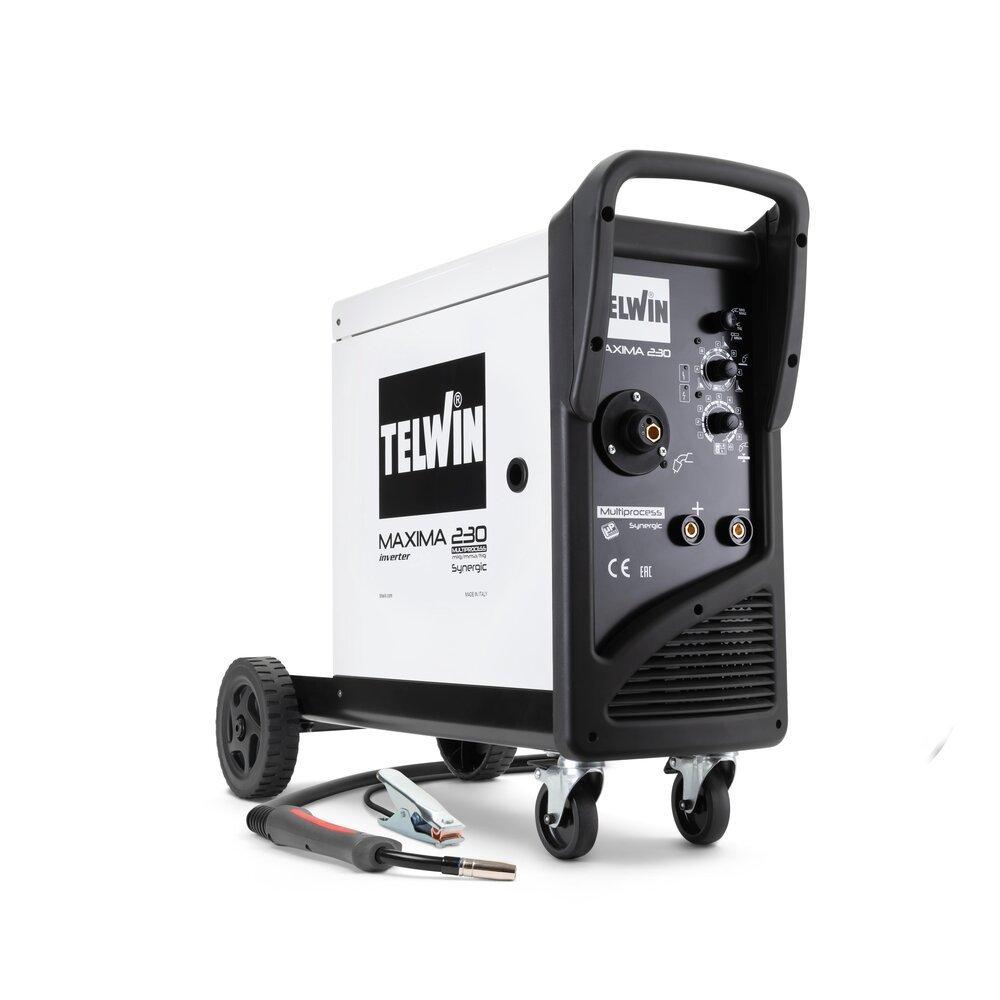

The Telwin MAXIMA 230 SYNERGIC is a professional multiprocess inverter welding machine controlled by a microprocessor for precise and reliable welding performance. It supports MIG-MAG, MIG Brazing, MMA, and TIG DC-LIFT welding processes while featuring an intelligent Synergic control system that automatically adjusts welding parameters according to the selected process and material thickness. Its compact design, energy-efficient inverter technology, generator compatibility, and comprehensive protection systems make it an ideal solution for professional maintenance, fabrication, and installation applications both in workshops and on-site.
Intelligent Synergic Control
Automatically optimizes welding parameters according to welding process, seam type, and material thickness.
Multiprocess Welding Machine
Supports MIG-MAG, MIG Brazing, MMA, and TIG DC-LIFT welding.
Inverter Technology
Delivers excellent welding stability with reduced energy consumption.
Microprocessor Controlled
Ensures precise welding parameter management and consistent arc performance.
Suitable for Multiple Materials
Compatible with steel, stainless steel, aluminum, and brazing applications.
Generator Compatible
Operates with 230V motor generators while tolerating voltage fluctuations up to ±15%.

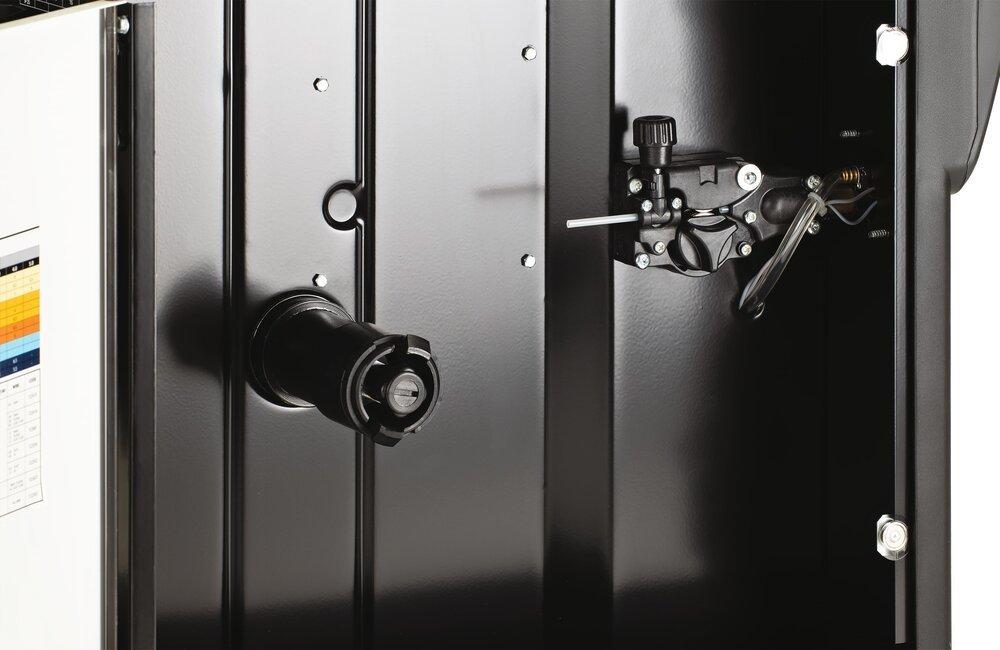

Large Wire Spool Capacity
Supports wire spools up to 15 kg with a maximum diameter of 300 mm.
Euro Torch Connection
Allows quick torch replacement and compatibility with standard welding torches.
Comprehensive Protection Systems
Includes overvoltage, undervoltage, overcurrent, and thermal protection.
Compact & Portable Design
Lightweight construction makes transportation and on-site welding easier.
| Name | - |
|---|---|
| MAIN VOLTAGE | 230 V (Single Phase) |
| MAIN FREQUENCY | 50 / 60 Hz |
| Peak Spot-Welding | — |
| MAX NO_LOAD VOLTEGE | — |
| MAX ABSORBED POWER | 5.0 kW |
| RATED POWER x= 50% | — |
| POWER FACTOR | — |
| MAX SPOT WELDING | — |
| DUTY CYCLE | — |
| CURRENT CONTROL RANGE (DC) | 20 – 220 A |
| CURRENT | 220 A (Max) |
| MAX ABSORBED CURRENT | 32 A |
| ABSORBED CURRENT 60% | — |
| ABSORBED POWER at 60% | — |
| EFFICIENCY | 87% |
| D.USBLE ELECTRODES | Ø 1.6 – 3.2 mm |
| PROTECTION DEGREE | IP23 |
| DIMENSIONS | 825 × 360 × 670 mm |
| WEIGHT | 21 kg |
| INVERTER FREQUENCY | Inverter Technology |
| MAX ELECTRODE POWER | Ø 3.2 mm |
| MAX WELD.FTHICK. ON 2 SHEITHS | Synergic thickness adjustment |
| MAX CUTING THICKNESS | Not Applicable |
| COOLING SASTEM | Fan Cooling |
| DISPLAY | Digital Synergic Control Panel |
| GUN | MT15 MIG Torch (3 m) |
| TECHNOLOGY | Inverter Microprocessor Controlled |
| STANDARDS | MIG-MAG / Brazing / MMA / TIG DC-LIFT |
