Brand: TELWIN

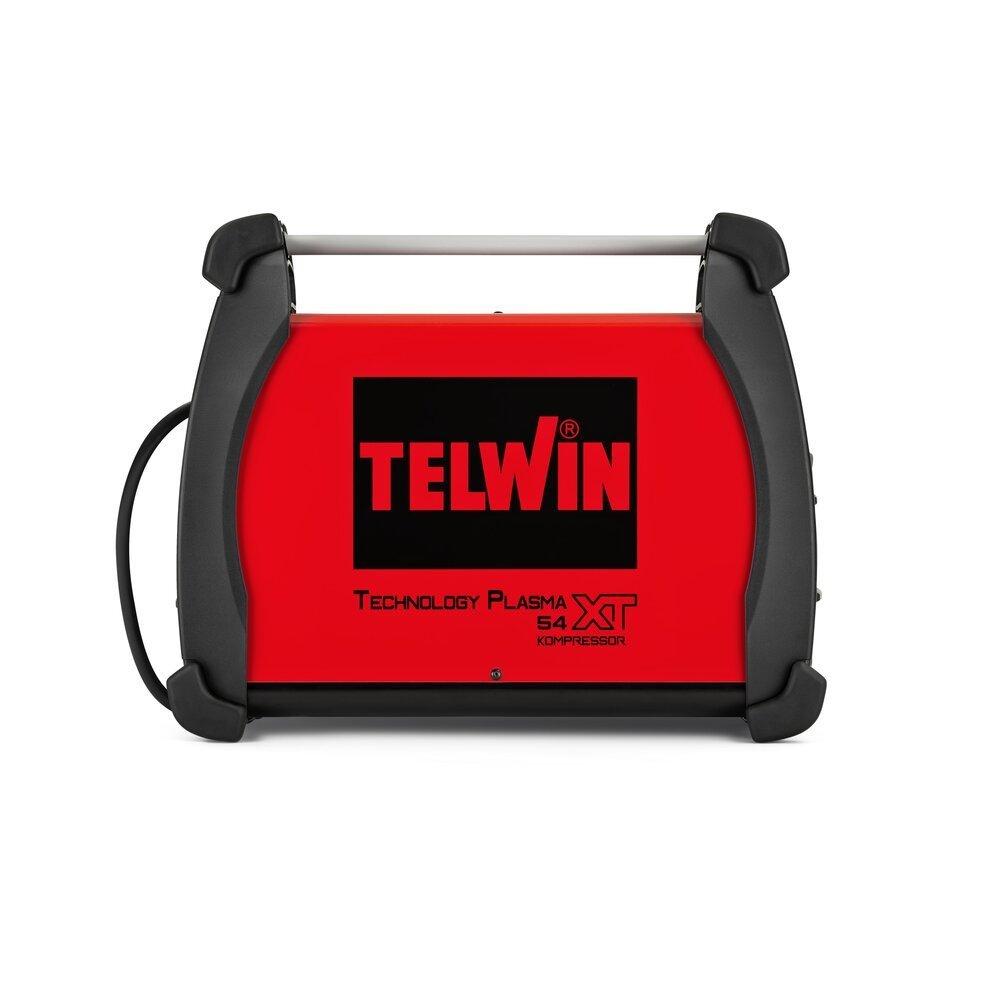

COMPARETelwin Technology Plasma 54 XT Kompressor Plasma Cutting Machine
- Model : echnology Plasma 54 XT Kompressor
- Country of Origin : Italy
The Telwin Technology Plasma 54 XT Kompressor is a professional inverter plasma cutting machine designed to deliver powerful cutting performance with maximum portability. Equipped with a built-in air compressor, it eliminates the need for an external compressed air source, making it ideal for workshops, maintenance facilities, and on-site applications. Featuring advanced Inverter Technology and a Pilot Arc ignition system, it delivers fast, precise, and clean cuts on conductive metals up to 12 mm thick. Its rugged impact-resistant construction, automatic torch cooling, and advanced protection systems ensure reliable performance and long service life.
Built-in Air Compressor
Integrated air compressor eliminates the need for an external compressed air supply, providing greater mobility and convenience.
Advanced Inverter Technology
Delivers stable cutting performance with improved energy efficiency.
Pilot Arc Ignition
Provides quick and reliable arc ignition for smooth, accurate cutting.
Cuts All Conductive Metals
Suitable for cutting steel, stainless steel, galvanized steel, aluminum, copper, and brass with excellent precision.
Up to 12 mm Cutting Capacity
Designed for professional cutting applications with clean and accurate cutting results.
Comprehensive Protection Systems
Includes protection against overvoltage, undervoltage, overcurrent, overheating, and air pressure failure.
Automatic Torch Cooling
Protects the plasma torch during continuous operation and extends its service life.

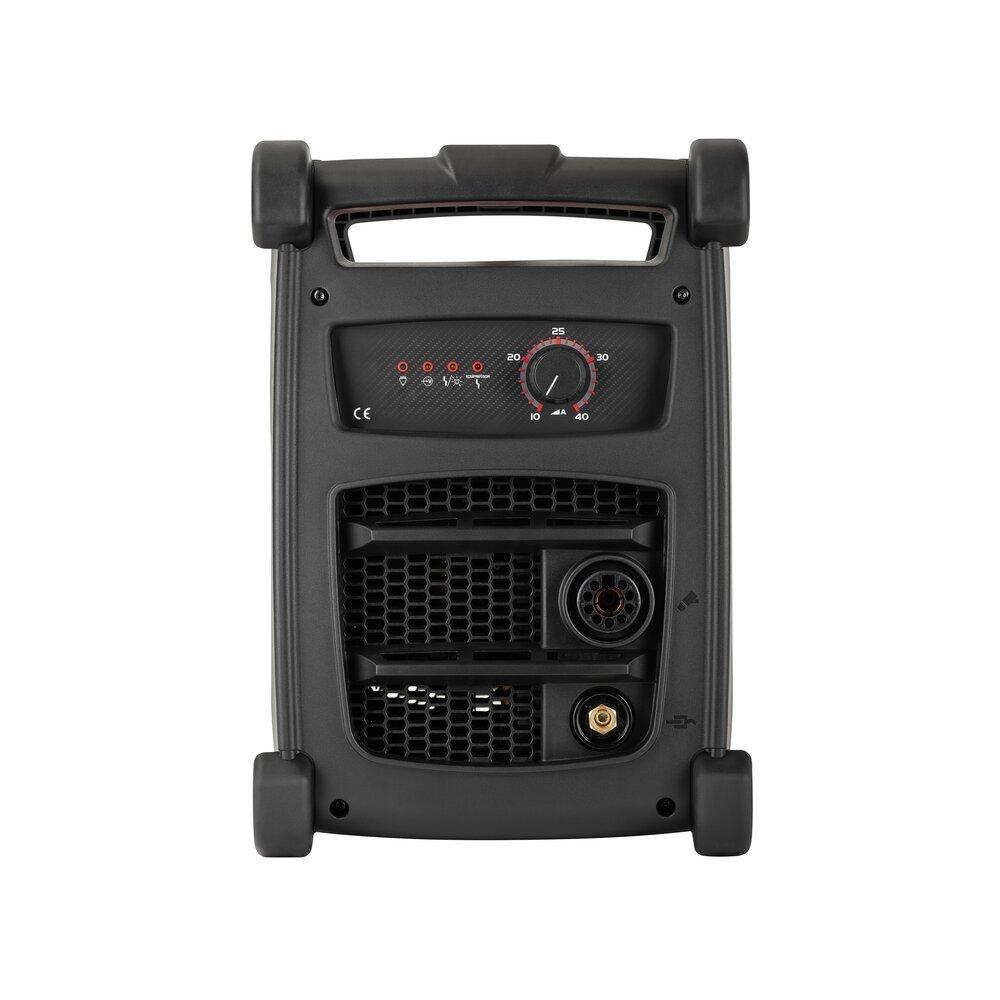

Smart LED Indicators
Displays machine status and alerts the operator when torch consumables require replacement.
Compact & Impact-Resistant Design
Built with a rugged housing and lightweight construction for easy transportation and industrial use.
Ready to Work
Supplied with a 4-meter PK plasma torch and work clamp for immediate operation.
| Name | - |
|---|---|
| MAIN VOLTAGE | 230 V (Single Phase) |
| MAIN FREQUENCY | 50 / 60 Hz |
| Peak Spot-Welding | N/A |
| MAX NO_LOAD VOLTEGE | 313 V |
| MAX ABSORBED POWER | 4.5 kW |
| RATED POWER x= 50% | N/A |
| POWER FACTOR | N/A |
| MAX SPOT WELDING | N/A |
| DUTY CYCLE | 35 A @ 30% |
| CURRENT CONTROL RANGE (DC) | 10–40 A |
| CURRENT | DC Output |
| MAX ABSORBED CURRENT | 27.5 A |
| ABSORBED CURRENT 60% | N/A |
| ABSORBED POWER at 60% | N/A |
| EFFICIENCY | High Efficiency Inverter |
| D.USBLE ELECTRODES | N/A |
| PROTECTION DEGREE | IP23 |
| DIMENSIONS | 470 × 260 × 378 mm |
| WEIGHT | 17.8 kg |
| INVERTER FREQUENCY | Inverter Technology |
| MAX ELECTRODE POWER | N/A |
| MAX WELD.FTHICK. ON 2 SHEITHS | N/A |
| MAX CUTING THICKNESS | 12 mm |
| COOLING SASTEM | Automatic Torch Cooling |
| DISPLAY | LED Indicators |
| GUN | PK Plasma Torch (4 m) |
| TECHNOLOGY | Inverter Plasma with Pilot Arc |
| STANDARDS | Class H Insulation |
