Brand: TELWIN
COMPARETelwin Digital Puller 5500 Digital Dent Pulling System
Model : Digital Puller 5500
Country of Origin : Italy

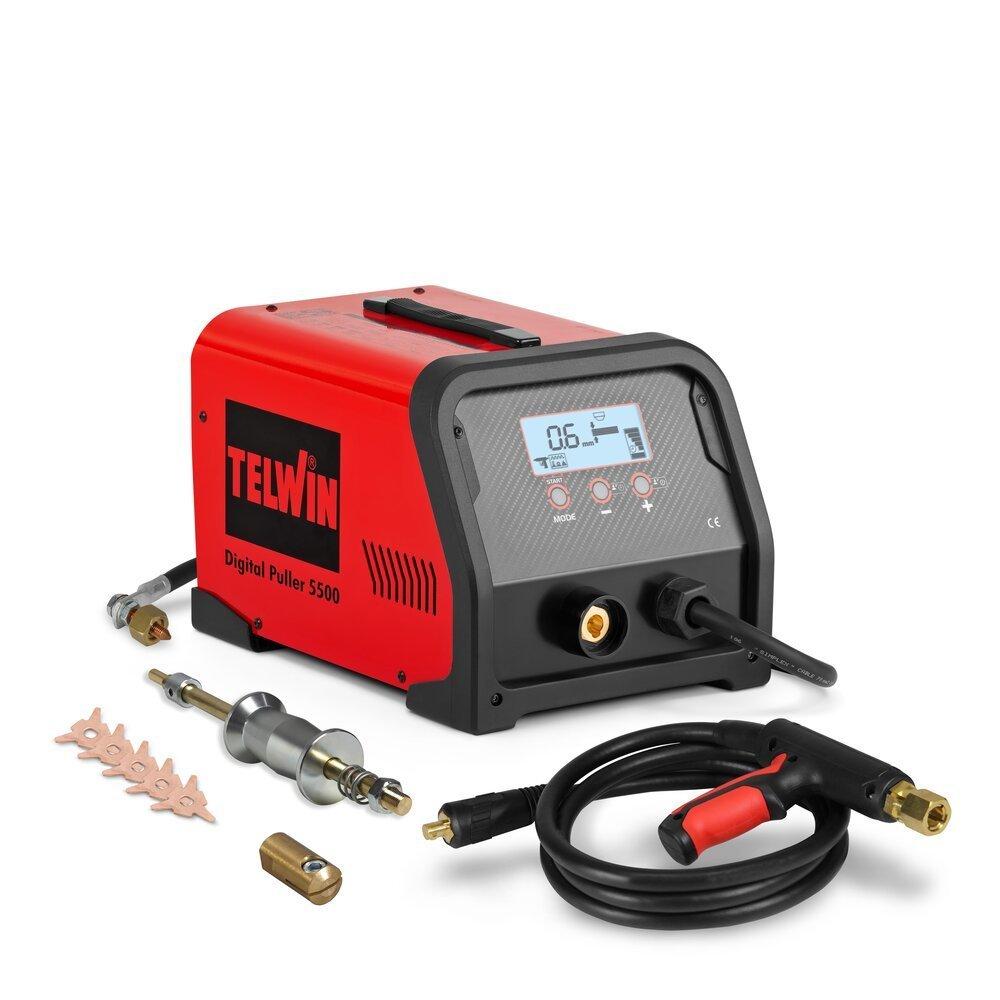

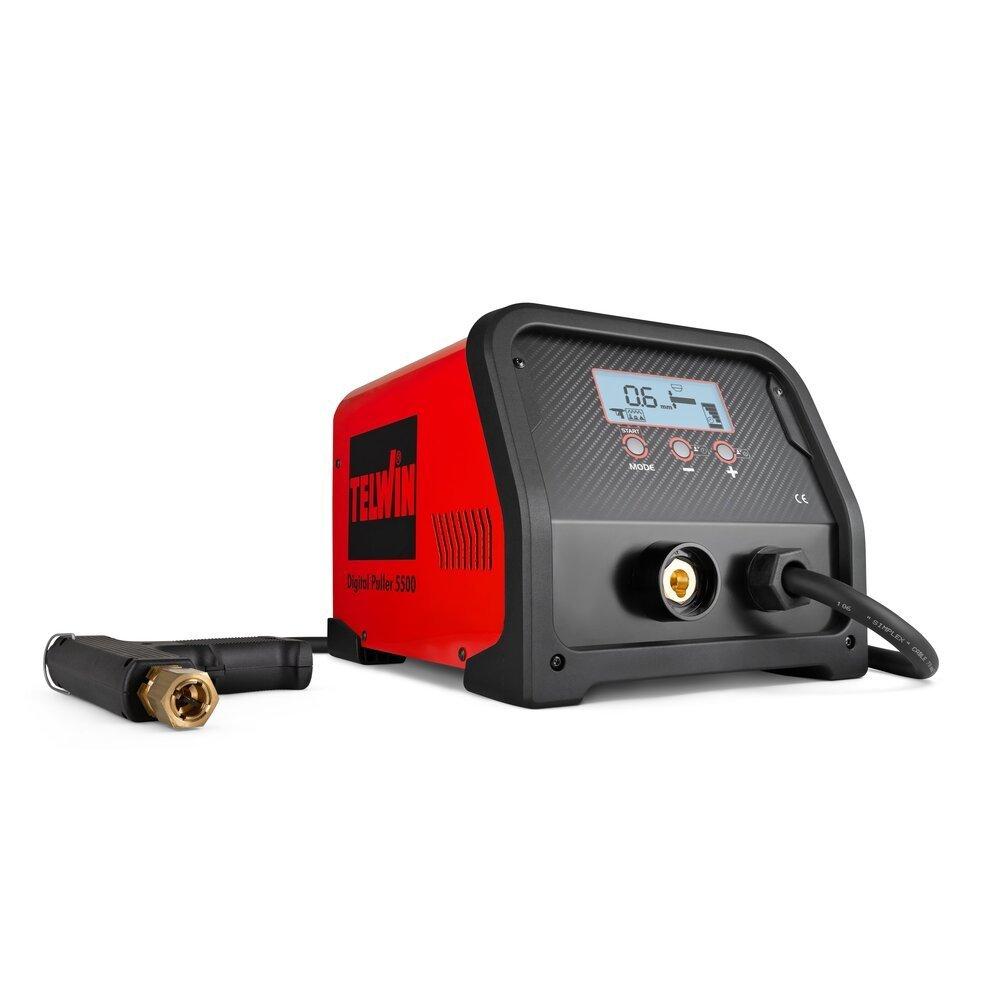

The Telwin Digital Puller 5500 is an advanced electronic dent pulling system designed specifically for professional automotive body repair shops. Powered by a microprocessor-controlled system, it delivers precise spot welding performance for repairing steel body panels. Its multifunction LCD display automatically adjusts welding parameters according to the selected tool and material thickness, simplifying operation while ensuring maximum repair accuracy. The machine comes complete with essential accessories, making it ready for immediate use in collision repair workshops.
Intelligent Microprocessor Control
Provides precise electronic control for stable and consistent spot welding performance.

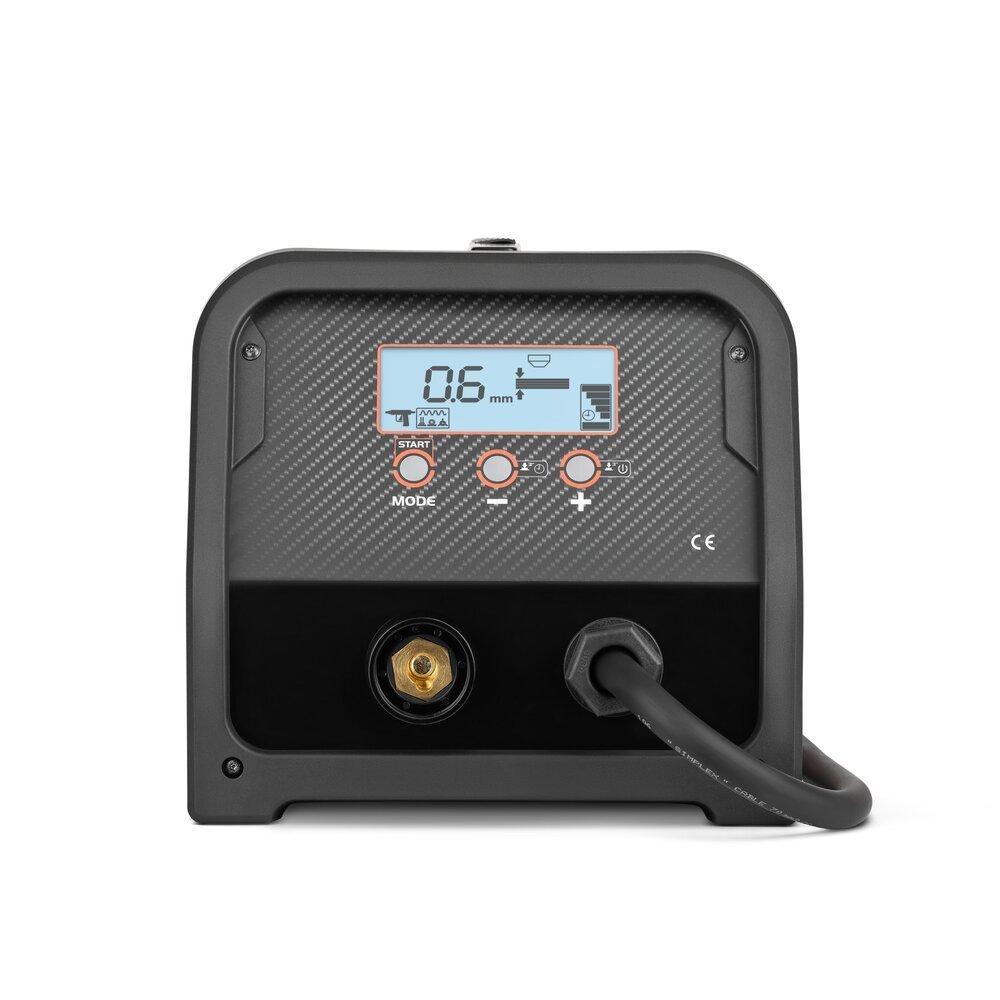

Multifunction LCD Display
Automatically adjusts welding parameters according to the selected tool for faster and easier operation.
Automatic Thickness Adjustment
Optimizes welding settings automatically based on the thickness of the steel panel.
Peak Welding Current up to 3,800 A
Delivers powerful welding performance for secure attachment of dent pulling accessories.
Automatic Spot Welding Gun
Supplied with an automatic welding gun for faster and more efficient repair operations.
Designed for Automotive Body Repair
Engineered specifically for repairing and straightening steel body panels in professional workshops.
Complete Accessory Kit
Includes work cable with grounding clamp, puller, spindle, and pulling stars for comprehensive repair tasks.
Compact Design
Small footprint makes the machine easy to position and store inside busy workshops.
Reliable Protection
Rated IP22 for safe operation in automotive repair environments.
Optional Accessories
Compatible with the optional Telwin Trolley and Studder Box for improved mobility and productivity.
| Name | - |
|---|---|
| MAIN VOLTAGE | 400 V (Two Phase) |
| MAIN FREQUENCY | 50 / 60 Hz |
| Peak Spot-Welding | 3800 A |
| MAX NO_LOAD VOLTEGE | 5.6 V |
| MAX ABSORBED POWER | 10.5 kW |
| RATED POWER x= 50% | 1.8 كيلووات |
| POWER FACTOR | — |
| MAX SPOT WELDING | 2500 A (RMS) |
| DUTY CYCLE | 1.5% |
| CURRENT CONTROL RANGE (DC) | Automatic (Microprocessor Controlled) |
| CURRENT | — |
| MAX ABSORBED CURRENT | — |
| ABSORBED CURRENT 60% | — |
| ABSORBED POWER at 60% | — |
| EFFICIENCY | High Electronic Efficiency |
| D.USBLE ELECTRODES | Spot Welding Accessories |
| PROTECTION DEGREE | IP22 |
| DIMENSIONS | 390 × 260 × 225 mm |
| WEIGHT | 21 kg |
| INVERTER FREQUENCY | — |
| MAX ELECTRODE POWER | — |
| MAX WELD.FTHICK. ON 2 SHEITHS | Automatic According to Material Thickness |
| MAX CUTING THICKNESS | Not Applicable |
| COOLING SASTEM | Air Cooling |
| DISPLAY | Multifunction LCD Display |
| GUN | Automatic Spot Welding Gun |
| TECHNOLOGY | Microprocessor Controlled |
| STANDARDS | CE |
