Brand: TELWIN

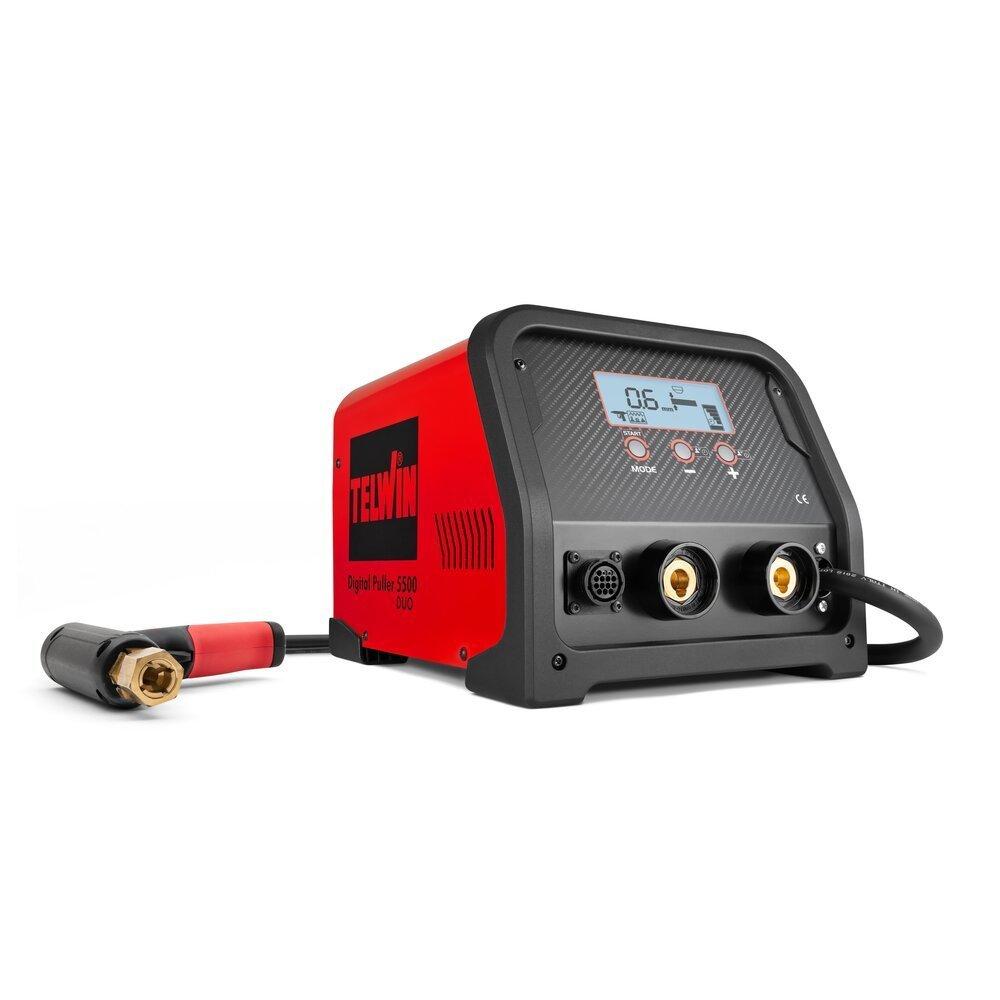

COMPARETelwin Digital Puller 5500 Duo Digital Dent Pulling System
Model : Digital Puller 5500 Duo
Country of Origin : Italy
The Telwin Digital Puller 5500 Duo is an advanced electronic dent pulling system designed specifically for professional automotive body repair shops. Powered by a microprocessor-controlled system, it delivers precise and consistent spot welding performance for repairing steel body panels. Its multifunction LCD display automatically adjusts welding parameters according to the selected tool, simplifying operation while ensuring maximum efficiency. The machine comes complete with professional accessories including automatic and manual welding guns, dent pulling tools, and grounding equipment for comprehensive body repair applications.
Intelligent Microprocessor Control
Advanced electronic control ensures accurate energy delivery and consistent spot welding performance.

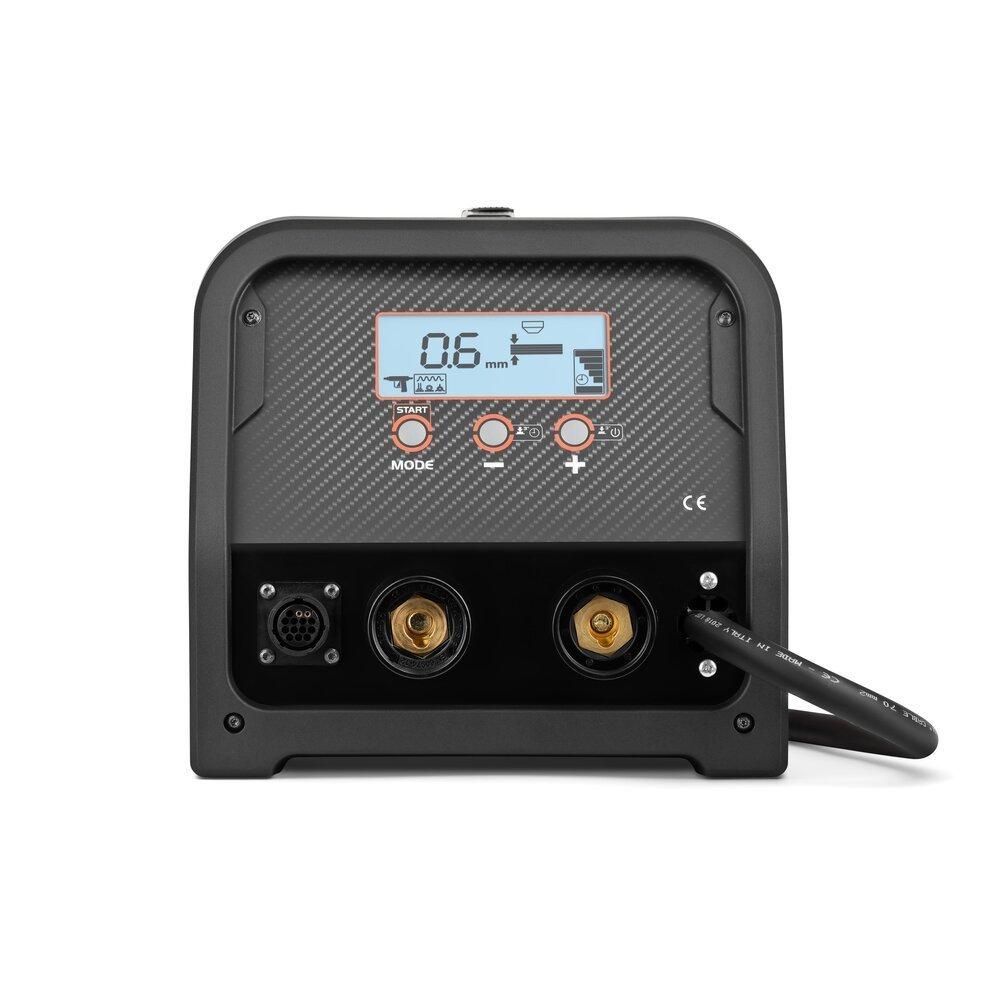

Multifunction LCD Display
Automatically adjusts welding parameters according to the selected tool, reducing setup time and improving productivity.
Peak Welding Current up to 3,800 A
Provides powerful spot welding performance for securely attaching pulling accessories to steel body panels.
Automatic & Manual Welding Guns
Supplied with both automatic and manual welding guns for maximum flexibility during repair operations.
Designed for Automotive Body Repair
Specifically engineered for repairing steel body panels in professional collision repair workshops.
Automatic Welding Parameter Adjustment
Optimizes welding time and output automatically based on the selected accessory.

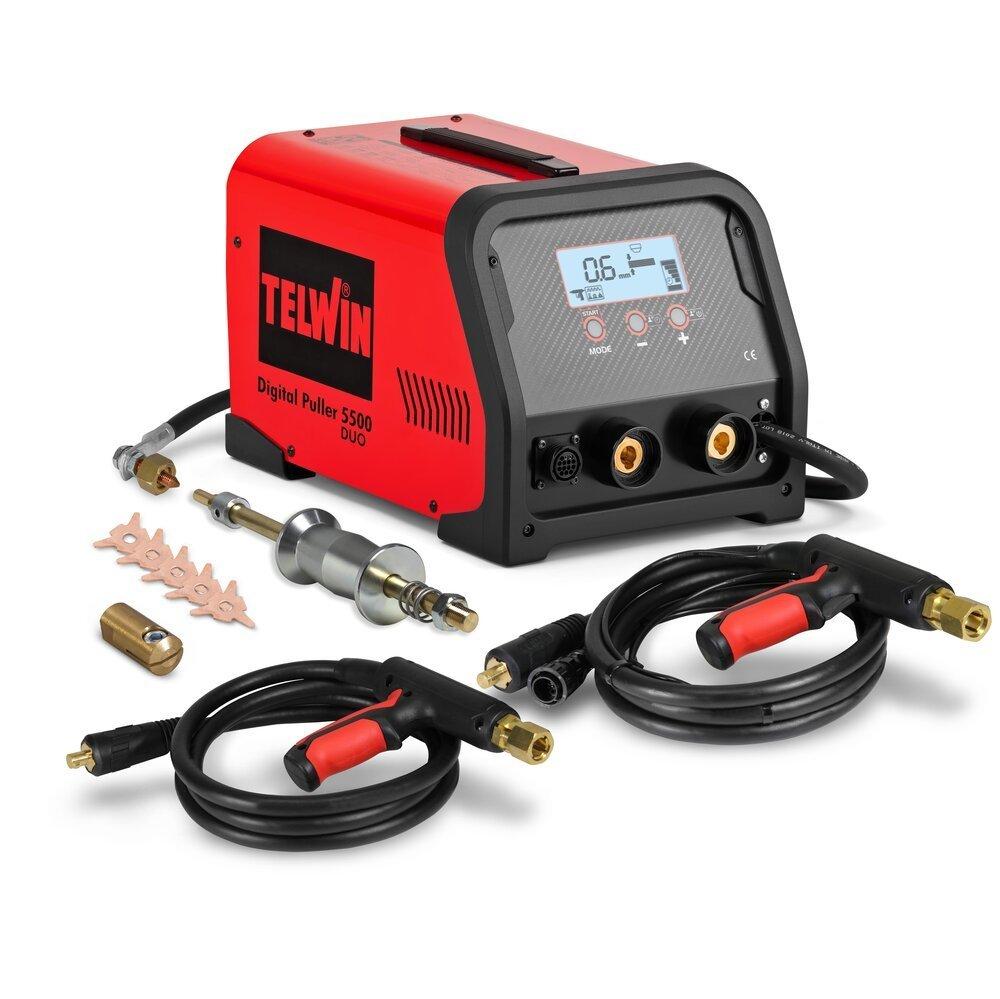

Complete Professional Accessory Kit
Includes dent puller, pulling stars, pulling mandrel, three-pin washers, grounding cable, and essential repair accessories.
Compact Design
Space-saving dimensions make the machine easy to position and store inside busy workshops.
Enhanced Safety Protection
Features IP22 protection rating and Class H insulation for reliable operation in workshop environments.
Optional Trolley Compatibility
Compatible with Telwin's optional trolley for easier transportation around the workshop.
| Name | - |
|---|---|
| MAIN VOLTAGE | 230 V (Single Phase) |
| MAIN FREQUENCY | 50 / 60 Hz |
| Peak Spot-Welding | 3800 A |
| MAX NO_LOAD VOLTEGE | 5.6 V |
| MAX ABSORBED POWER | 10.5 kW |
| RATED POWER x= 50% | 1.8 kW |
| POWER FACTOR | 0.8 |
| MAX SPOT WELDING | 2500 A (RMS) |
| DUTY CYCLE | 1.5% |
| CURRENT CONTROL RANGE (DC) | Automatic Microprocessor Control |
| CURRENT | — |
| MAX ABSORBED CURRENT | 16 A Fuse |
| ABSORBED CURRENT 60% | — |
| ABSORBED POWER at 60% | — |
| EFFICIENCY | High Efficiency Microprocessor Control |
| D.USBLE ELECTRODES | Spot Welding Accessories |
| PROTECTION DEGREE | IP22 / Class H |
| DIMENSIONS | 390 × 260 × 225 mm |
| WEIGHT | 24 kg |
| INVERTER FREQUENCY | — |
| MAX ELECTRODE POWER | — |
| MAX WELD.FTHICK. ON 2 SHEITHS | Steel Body Panels |
| MAX CUTING THICKNESS | Not Applicable |
| COOLING SASTEM | Air Cooling |
| DISPLAY | Multifunction LCD Display |
| GUN | Automatic & Manual Spot Welding Guns |
| TECHNOLOGY | Microprocessor Controlled Spot Welding |
| STANDARDS | CE |
