Brand: HAMMER

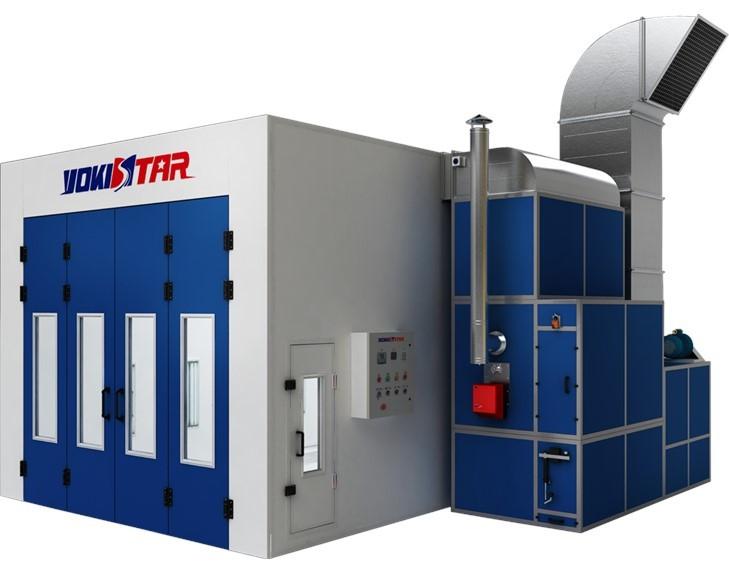

COMPAREHAMMER ESB-TB9 9M
Ensures stable and optimal performance for automotive painting, suitable for passenger cars, light trucks, and minibuses, delivering powerful and efficient painting results.
High-quality components make the booth more efficient, saving energy, time, and cost.
Equipped with a large number of high-efficiency ceiling and side lighting units, ensuring shadow-free illumination during painting.
High-quality control unit for temperature and lighting adjustment, with emergency stop function.
Resistant to high temperatures and electrical overload, providing advanced safety standards.
High-efficiency heat exchanger allows the booth to reuse hot air, reducing diesel consumption and helping to reach the required temperature efficiently.
Powerful air turbines ensure ideal air circulation and optimal painting performance.
- Country of Origin: China
- Spray Booth Floor:Floor Components
Two rows of galvanized steel grilles, each bent 10 mm, dimensions 6900 × 760 mm (L × W).
Load Capacity: 600 kg per wheel.
- Floor Filter: Made of fiberglass wool
Type: PA-50, EN 779, Grade G3
Area: 10.5 m²
- Booth Structure
Internal Dimensions: 9200 × 4500 × 3500 mm (L × W × H)
External Dimensions: 9344 × 6396 × 4100 mm (L × W × H)
- Main Entrance Door
Dimensions: 3600 × 3400 mm (W × H), 4 units.
Made of pressed steel with protective edge covers and tempered glass windows inside round steel frames.
- Service Door
Dimensions: 800 × 2000 mm.
Fitted with tempered glass window inside round steel frame.
- Walls
Panel Thickness: 70 mm
Panel Width: 1150 mm
Insulation: EPS thermal insulation, interlocking design.
Covered on both sides with 0.426 mm thick steel sheets.
- Ceiling
Insulation: EPS thermal insulation.
Dimensions: 1150 mm width × 50 mm thickness.
Interlocking design, covered on both sides with 0.426 mm thick steel sheets.
- Lighting System
Ceiling Lights: 12 units (6 on the left, 6 on the right).
Each unit contains 4 × 36W fluorescent lamps.
Side Lights: 12 units (6 on each side).
Each unit contains 4 × 36W fluorescent lamps, mounted vertically.
- Ceiling Filter
Type: SP-600 G, Grade F5 (EN 779).
Mounted on an oil-painted treated surface.
- Air Preparation Unit
Dimensions: 2200 × 1600 × 2400 mm (L × W × H).
- Structure
50 × 50 mm galvanized steel frame, thickness 1.5 mm.
- PU thermal insulation
Motors & Fans:
2 motors, each 7.5 kW, belt-driven, European standard couplings.
2 centrifugal fans, dual air inlet.
Total Airflow Capacity: 40,000 m³/h.
- Control
Pneumatically-operated air gate for switching between fresh air intake (spraying) and closed circulation (drying).
- Heat Exchanger
Made of stainless steel, 1.5 mm thickness.
Equipped with explosion protection vent.
- Fitted with chimney
3 m stainless steel.
Additional 3 m galvanized steel with rain cover.
Burner Type: Diesel-powered Riello G5S (Italy).
Thermal Power: 260,000 kcal/h.
Heat Output: 232 kW.
- Air Preparation Filters
Primary Filter: EN 779 G3, Type C16-300.
Secondary Filter: Glass wool, EN 779 G3, Type PA-50.
- Exhaust Unit
Dimensions: 1600 × 1600 × 1850 mm (L × W × H).
- Structure
50 × 50 mm galvanized steel frame, thickness 1.5 mm.
Triple-path aluminum air duct.
- Motor & Fan
1 centrifugal fan.
Motor power: 11 kW, belt-driven, European standard couplings.
- Control Panel
Temperature control.
Timer control.
Drying time control.
- Pressure gauge
Indicators: Drying, Spraying, Malfunction.
Switches: Spray, Drying, Left-side lighting, Right-side lighting.
Emergency stop button.
Main power switch.
| Name | - |
|---|---|
| Structure | 50 × 50 mm size |
| Dimensions | 2200 × 1600 × 2400 mm (L × W × H) |
| Internal Dimensions | 9200 × 4500 × 3500 mm (L × W × H) |
| External Dimensions | 9344 × 6396 × 4100 mm (L × W × H) |
| Main Entrance | 3600 × 3400 mm (W × H), 4 units of this dimension |
| Service Door | One unit, 800 × 2000 mm, equipped with a tempered glass window inside a circular metal frame |
| Walls | Panel thickness 70 mm, panel width 1150 mm |
| Insulation | Mineral wool, thickness 0.426 mm, covered on both sides with iron sheet |
| Roof | Mineral wool, thickness 0.426 mm, covered on both sides with iron sheet |
| Ceiling Lighting | 12 units, each 36 W |
| Side Lighting | 12 units, each 36 W, mounted vertically |
| Heat Exchanger | Made of stainless steel, thickness 1.5 mm, equipped with a safety opening to prevent explosion, provided with a chimney. Capacity: 232 kW |
| Burner Type | Diesel-operated, Riello G5S (Italian), with thermal power up to 260,000 kcal/h |
| Exhaust Unit Dimensions | 1600 × 1600 × 1850 mm (L × W × H) |
