Brand: HAMMER
COMPAREHAMMER ESB-O2 7m
High-quality components make the cabin more efficient, saving energy, time, and money.

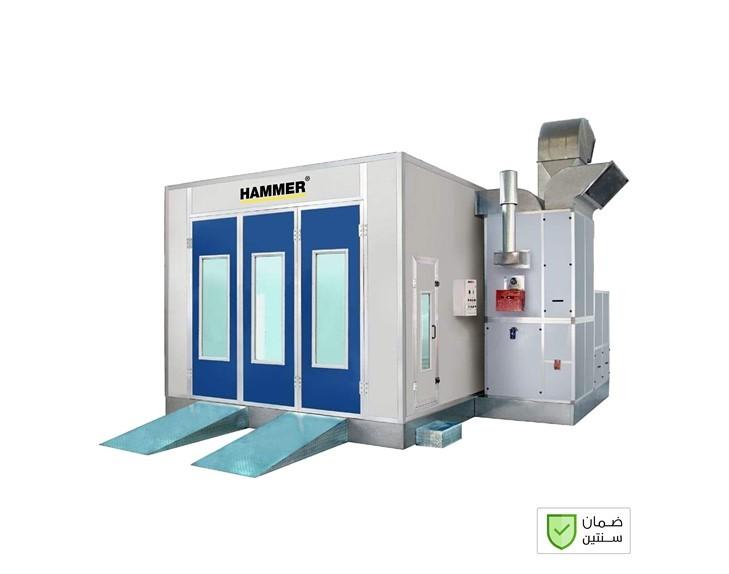

The ESB-O2 spray booth ensures stable and optimal performance for the car painting process, suitable for passenger cars and light
trucks, delivering strong and effective painting results.The cabin features a high-efficiency top and side lighting system that
guarantees shadow-free illumination during the painting process.
It is equipped with a high-quality control unit for temperature and lighting control, along with an emergency stop function.
The system is resistant to high temperatures and electrical overloading, providing advanced safety standards.
A high-efficiency heat exchanger allows the cabin to reuse hot air, which reduces diesel consumption and helps reach the required
temperature efficiently.Air turbines ensure a clean environment and optimal performance during the painting process.
- Country of Origin: China
- Floor Components
Height: 300 mm
Two rows of galvanized surface grilles and three rows of checkered galvanized steel
Two ramps, each size 520 × 2000 mm (W × H)
- Floor Filter
Made of fiberglass
Area: 10.35 m²
Type: PA-50, EN 779, Grade G3
- Dimensions
Internal dimensions: 6,900 × 3,900 × 2,650 mm (L × W × H)
External dimensions: 7,000 × 5,350 × 3,400 mm (L × W × H)
- Main Entrance
3 units, each size 3000 × 2600 mm
Made of pressed steel with edge covers, equipped with tempered glass window inside a circular metal frame
- Service Door
1 unit, size 700 × 2000 mm
Equipped with tempered glass window inside a circular metal frame
- Walls
Panel thickness: 50 mm, panel width: 1000 mm
Insulation type: Rockwool thermal insulation
- Roof
Interlocked panels, covered on both sides with 0.426 mm thick steel sheets
- Lighting System
Ceiling lighting: 10 units (5 on each side), each unit with 2 × 36W lamps
High-quality roof filter: Mounted on surface treated with oil-based paint
Type: SP-600 G, Grade F5, EN779
- Air Preparation Unit
Dimensions: 1,700 × 1,250 × 2,200 mm
Frame: 1.5 mm galvanized steel, with triple-path aluminum air duct
- Intake Fans
2 turbines, each 3 kW, total power 6 kW
Total capacity: 21,000 m³/h
- Exhaust Fan
1 turbine, 5.5 kW motor
Total capacity: 18,000 m³/h
- Burner
Diesel type Riello G20
- Heat Exchanger
Stainless steel, 1.5 mm thickness, equipped with safety protection against explosion
With chimney, capacity 200 kW
- Air Preparation Filters
Pre-filter: EN779 G3 Grade, C16-300
Fiberglass filter: PA-50, EN779, Grade G3
- Exhaust Unit
Dimensions: 1,250 × 1,250 × 1,500 mm
Frame: 1.5 mm galvanized steel, triple-path aluminum air duct
Motor and fan (1 turbine): 5.5 kW, belt-driven with European specifications
- Control Panel
Temperature control
Time control
Drying time control
Pressure gauge
Drying indicator, spraying indicator, fault indicator
Spray switch, drying switch
Right-side and left-side lighting switches
Emergency stop switch
Main power switch
- Electrical Supply
Motors: 3-phase, 380V, 50Hz
Lighting: Single-phase, 220V, 50Hz
| Name | - |
|---|---|
| Structure | • Made of galvanized steel, thickness 1.5 mm • Tri-directional aluminum air duct system |
| Burners | • Riello G20 (Italian), diesel-operated • Heating capacity: 200,000 kcal/h |
| Dimensions | 1,700 * 1,250 * 2,200 mm |
| INTERNAL DIMENSIONS | 6,900 × 3,900 × 2,650 mm |
| EXTERNAL DIMENSIONS | 7,000 × 5,350 × 3,400 mm |
| MAIN DOOR | 3 units, each 3,000 × 2,600 mm |
| SERVICE DOOR | 1 unit, 700 × 2,000 mm |
| WALLS | • Panel thickness: 50 mm • Panel width: 1,000 mm • Thermal insulation: 0.426 mm mineral wool with interlocking joint system, covered on both sides with galvanized steel sheets. |
| CEILING | • 0.426 mm mineral wool insulation with interlocking system, covered on both sides with galvanized steel sheets |
| TOP LIGHTING | 10 units (5 on the left, 5 on the right), each unit contains 4 lamps, 36W each. |
| SIDE LIGHTING | 10 units (5 on the left, 5 on the right), each unit contains 2 lamps, 36W each. |
| HEAT EXCHANGER | • Made of stainless steel, thickness 1.5 mm • Equipped with an explosion protection opening • Includes 2 chimneys: one 200 kW stainless steel chimney (2 m), and one galvanized steel chimney (3 m) with rain protection cover |
| Insulation | Made with an interlocking system, the thermal insulation is covered on both sides with steel sheets of 0.426 mm thickness |
