Brand: HAMMER
COMPAREHUMMER YS-TB15 15M

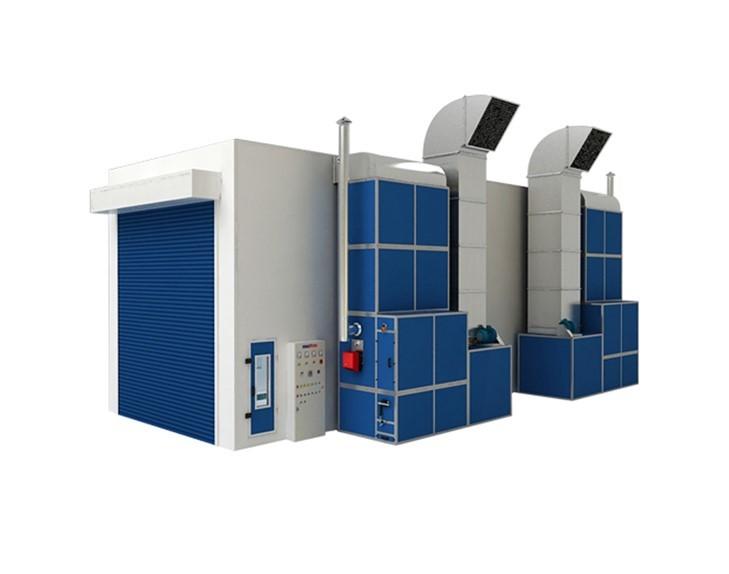

YS – TB 15 Bus Spray Booth guarantees stable and optimal performance for automotive painting.
It is suitable for passenger cars, pickup trucks, and buses, delivering powerful and efficient painting results.
High–quality components make the booth more efficient, energy–saving, time–saving, and cost–effective.
The booth features a highly efficient top and side lighting system, ensuring shadow–free illumination during the painting process.
Equipped with a high–quality control unit for adjusting temperature, lighting, and emergency stop functions.
Designed with protection against overheating and electrical overcurrent, providing advanced safety standards.
A high–efficiency heat exchanger allows the booth to reuse hot air, reducing diesel consumption and helping achieve the required temperature effectively.
Powerful air turbines ensure an ideal environment and outstanding performance for the painting process.
- Country of Origin: China
- Floor Structure
Two rows of grilles made from galvanized steel bar 30 x 4 mm, thickness 10 mm.
Loading capacity: 600 kg/wheel.
Dimensions: 12 pcs, 650 x 760 mm (LxW).
Frame: square steel tubes 80 x 40 mm.
- Floor Filter
Material: fiberglass.
Area: 19.2 m².
Type: PA-50, Grade G3, EN 779.
- Cabin Dimensions
Internal: 15000 x 5000 x 5000 mm (LxWxH).
External: 15144 x 6896 x 5600 mm (LxWxH).
- Main Entrance
Electric gate, 4000 mm (W) x 4600 mm (H).
Made of aluminum alloy with PU insulation.
- Service Door
2 units, each 800 x 2000 mm.
Equipped with tempered glass window in a round metal frame.
- Wall Panels
Thickness: 70 mm.
Width: 1150 mm.
- Insulation
EPS rock wool, sandwich panel type, covered both sides with 0.426 mm pre-coated steel.
- Roof Panels
EPS rock wool panels, thickness 50 mm, width 1150 mm.
Covered both sides with 0.426 mm pre-coated steel.
- Lighting System
Ceiling lights: 18 units (9 left + 9 right), each unit 4 x 36W LED lamps.
Side lights: 22 units (11 left + 11 right), each unit 4 x 36W LED lamps.
- Ceiling Filter
Type: Sp-600G, Grade F5, EN 779.
High-quality filter housed in oil-painted frame.
- Air Handling Unit (AHU)
Dimensions: 2200 x 1600 x 2400 mm.
Equipped with 4 turbines.
Motors: 2 x 7.5 kW (total 15 kW).
Fan capacity: 42,000 m³/h.
Drive: belt & pulley system with European standard bearings.
- Air control gate
pneumatically operated (fresh air for spraying / closed loop for baking).
- Heat Exchanger & Burner
Material: stainless steel, thickness 1.5 mm.
Equipped with explosion-proof safety flap.
Burner type: Riello RG55, diesel-powered, Italian origin.
Heating capacity: 260,000 Kcal/h.
- Exhaust chimney
3 m stainless steel, 1 mm thickness, rain cap.
- AHU Filters
Pre-filter: C16-300, Grade G3, EN 774.
Fiberglass filter: PA-50, Grade G3, EN 779.
- Exhaust Unit
Dimensions: 1600 x 1600 x 1850 mm.
Structure: galvanized steel frame 50x50 mm with EPS insulation.
Equipped with 2 turbines.
Motor: 11 kW, belt & pulley system, European standard bearings.
Fan capacity: 36,000 m³/h.
Exhaust filters: fiberglass filter PA-50, Grade G3, EN 779 + activated carbon cartridge filters (M-type).
Manual control air gate, pneumatically operated.
- Control Panel
Temperature control.
Spray & bake cycle timers.
Drying time control.
Pressure gauge.
Spray mode indicator.
Baking mode indicator.
Voltage & current meters.
Lighting switches (right/left).
Spray ON/OFF, Bake ON/OFF switches.
Alarm system, emergency stop.
- Power Supply
Motors: 3 Phase, 380V, 50Hz.
Lighting: 1 Phase, 220V, 50Hz.
| Name | - |
|---|---|
| Internal Dimensions | 15000 × 5000 × 5000 mm |
| External Dimensions | 15144 × 6896 × 5600 mm |
| Main Entrance | Electric gate, dimensions 4000 mm (width) × 4600 mm (height). Made of aluminum alloy with PU insulation |
| Service Door | 800 × 2000 mm, equipped with thermal glass window inside a circular metal frame ×2. |
| Ceiling Lighting | 18 lighting units (9 on the right + 9 on the left). Each unit contains 4 LED lamps, 36W each. |
| Side Lighting | 22 lighting units (11 on the right + 11 on the left). Each unit contains 4 LED lamps, 36W each. |
| Heat Exchanger | Made of stainless steel, thickness 1.5 mm. Equipped with explosion-proof protection vent. Equipped with chimney, 232 kW capacity, stainless steel, thickness 1 mm, with rain protection cover. |
| Burner Type | Type: Diesel-fired, Italian made. Thermal Capacity: 260,000 Kcal/h. |
