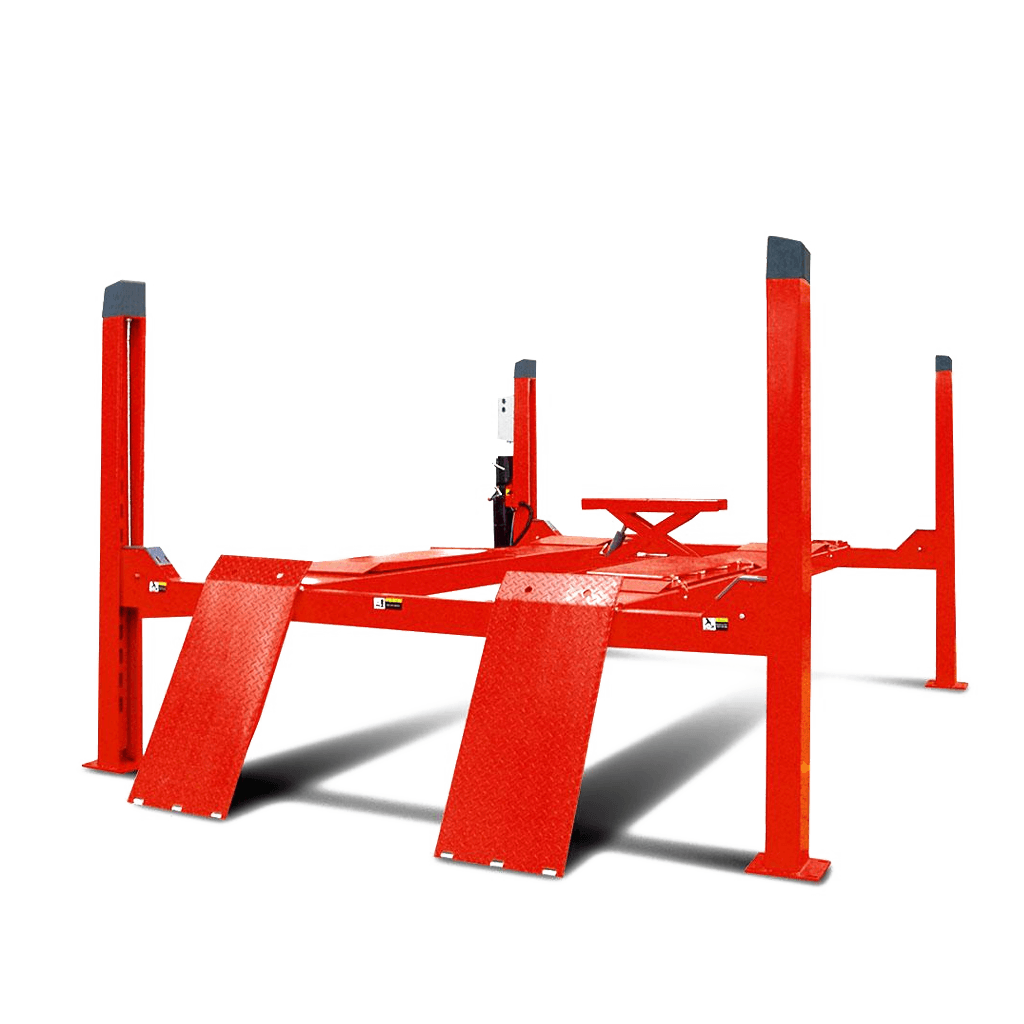

COMPAREWheel Alignment 4 Post Lift TLT440W
The TLT440W is a robust four-post hydraulic lift, featuring a hydraulic cylinder paired
with a steel cable synchronization system.
This design ensures stable and smooth lifting and lowering,
supporting a hefty 4000 kg load capacity.
Ideal for professional workshops, the TLT440W provides precise vehicle leveling,
ease of use, and excellent structural integrity.
Country of Origin: China
- Two-layer concealed plate structure, excellent synchronizing performance with the horizontal precision of 1mm.
- Front wheel turn plate's position is adjustable and rear wheel sliding plate is extended for various vehicle type.
- Deployed with rolling jack with small scissor hydraulic lifting and lowering. Can be moved back and forth and easy to adjustment tire.
- Positioning level's accuracy is adjustable, distance between platforms is adjustable, wheel base in certain scope is adjustable.
- Driven by hydraulic cylinder, full-scope mechanical safety locking by locking latch, manual lowering.
- Cable rupture safety system, effectively protects vehicle from overturn.
- Four connected steel cables force synchronized movement of the lift, effectively prevent vehicles from sloping.
- Cylinder travel limit device effectively protects cylinder and extends its lifespan.
- Electric controlled lifting and lowering type is optional.
- The installation position of turntable and side slip plate can be moved backwards and forwards.
- Applicable for vehicles with different wheel base.
- CE certificated.
| Name | - |
|---|---|
| Rated Load | 4000kg |
| Lifting Height | 1850mm |
| Initial Height | 220mm |
| Lifting Time | ≤60s |
| Lowering Time | ≥20s, ≤40s |
| Max Drive-on Width | 3045mm |
| Platform Length | 4240mm |
| Platform Width | 500mm |
| Overall Width | 3445mm |
| Overall Height | 2172mm |
| Motor Power | 2.2kW |
| Motor Voltage | 3 phase/380v or Single phase/220V |
| Platform Length Secondary | 915~1450mm |
| Secondary Platform Width | 215mm |
| Secondary Lifting Time | ≤45s |
| Secondary Lowering Time | ≥10s, ≤20s |
| Secondary Lifting Load | 2000kg |
