Brand: TELWIN

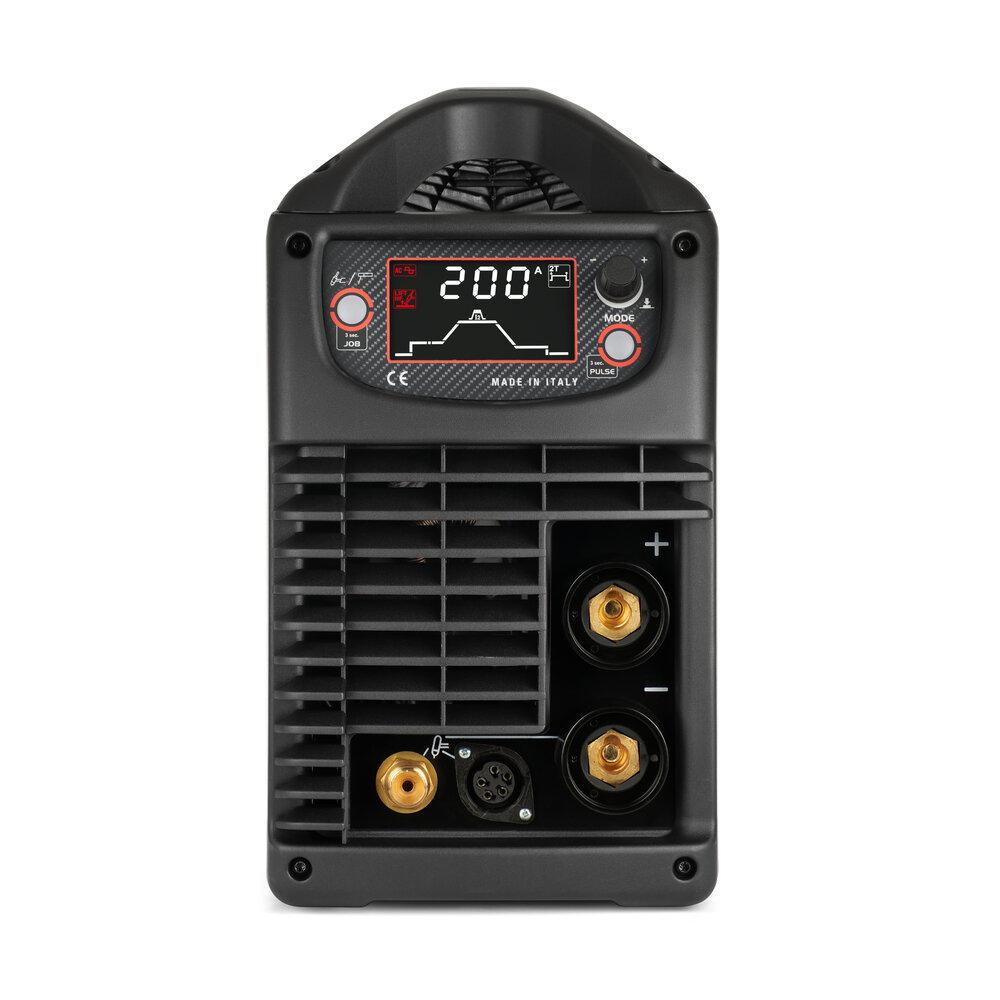

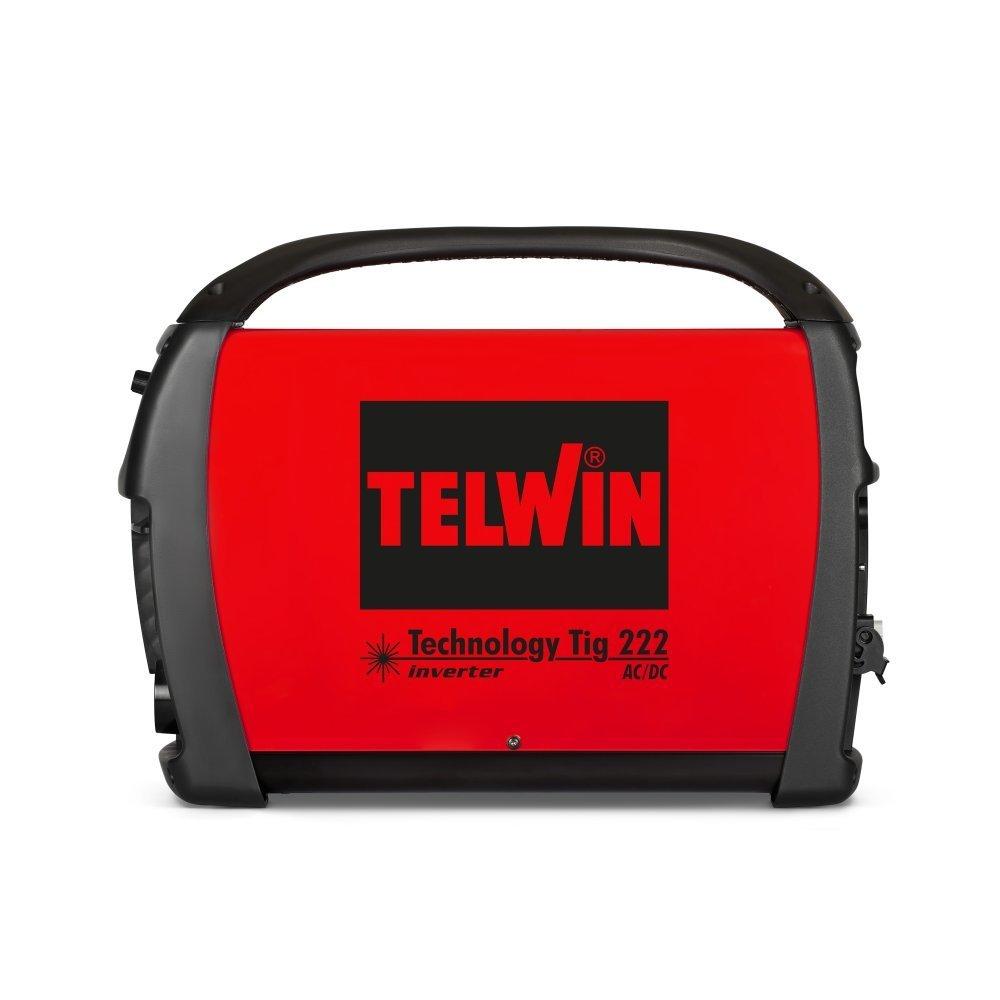

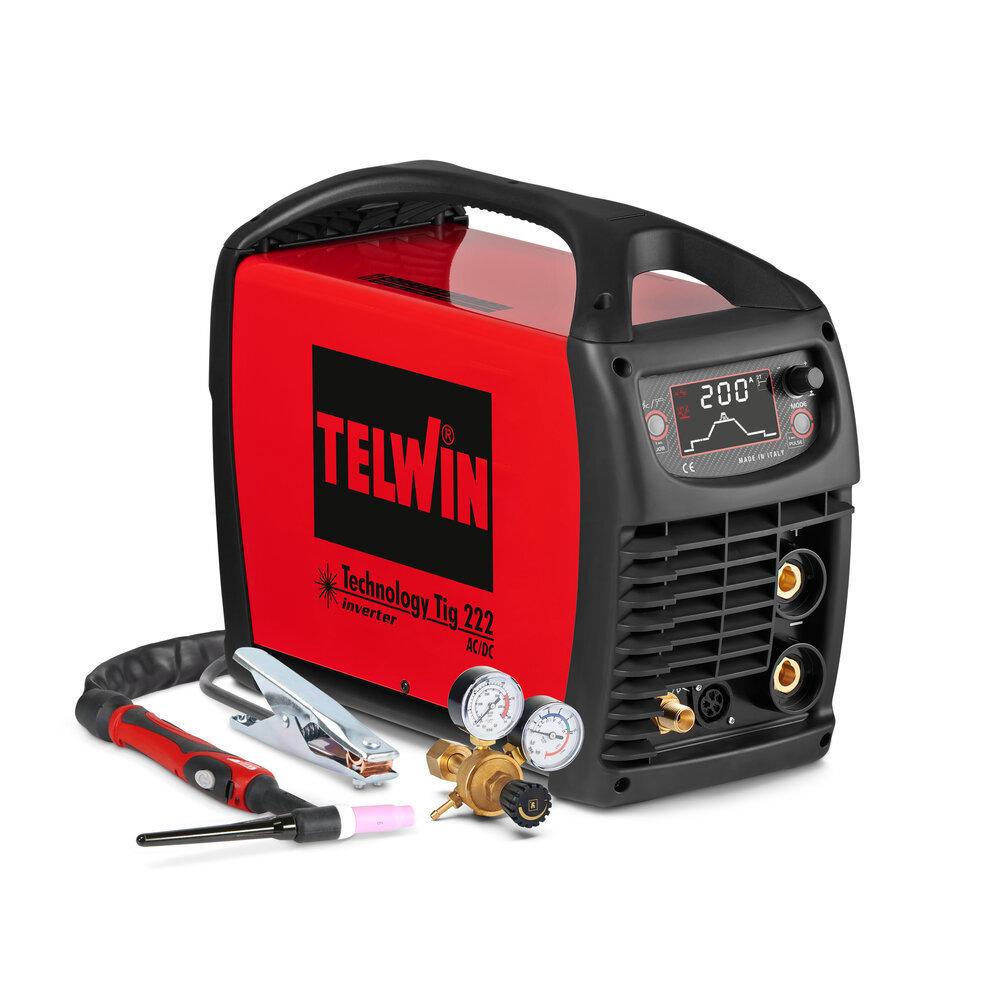

COMPARETechnology TIG 222 AC/DC Professional TIG & MMA Inverter Welding Machine
Model: Technology TIG 222 AC/DC
Country of Origin: Italy
The Technology TIG 222 AC/DC by Telwin is a professional inverter welding machine designed for precision TIG and MMA welding applications. It supports TIG AC/DC HF, TIG Lift, TIG Pulse, MMA, and MMA Pulse, making it ideal for welding aluminum, stainless steel, steel, copper, titanium, magnesium, and their alloys.
Featuring an intuitive LCD display, advanced MIX AC-DC, THINSPOT, and Easy Pulse technologies, the machine provides exceptional arc stability, reduced heat distortion, and superior welding quality across a wide range of materials.
Professional TIG AC/DC Welding
Supports TIG AC/DC with both HF and Lift ignition for high-quality welding on all conductive metals.
MIX AC-DC Technology
Preheats heavy workpieces before AC welding to improve weld penetration and stability.
THINSPOT Technology
Provides fast and accurate TIG spot welding for ultra-thin sheet metals with minimal distortion.
Pulse & Easy Pulse Functions
Improve arc stability while reducing heat input and material deformation.

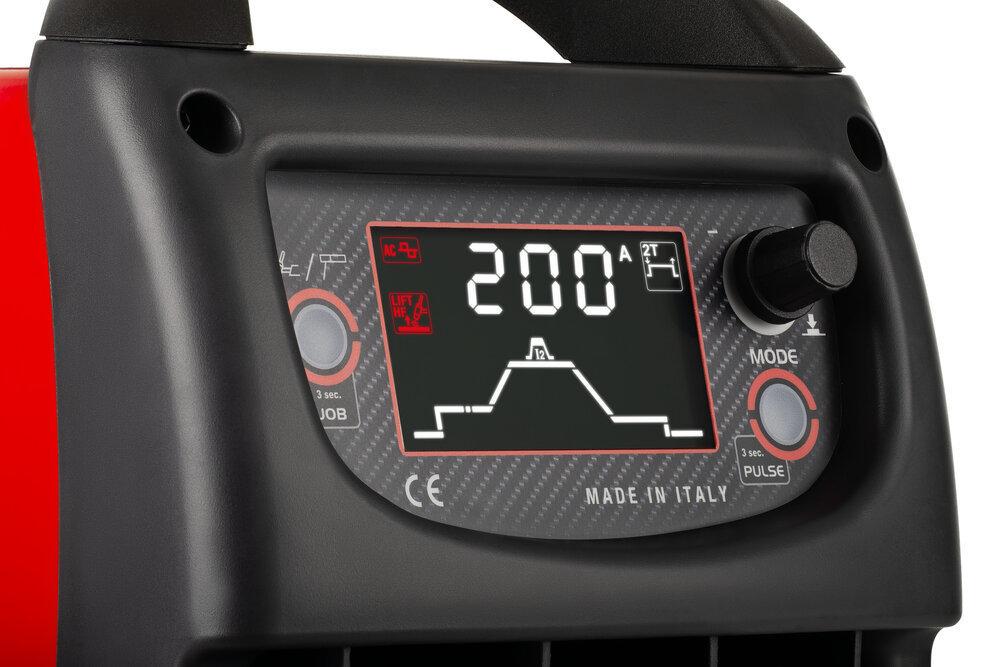

LCD Control Panel
Allows quick parameter adjustment with real-time display of welding settings.
Memory Function
Stores up to 10 customized welding programs for fast job setup.
Air Tunnel Cooling System
Protects internal electronic components from dust and contaminants, extending machine lifespan.
Advanced MMA Welding
Supports both conventional MMA and MMA Pulse welding for outstanding performance with basic electrodes.
Comprehensive Protection
Equipped with thermal, overvoltage, undervoltage, and overcurrent protection systems.
Stable Operation
Maintains reliable performance even with power fluctuations of up to ±15%.
| Name | - |
|---|---|
| MAIN VOLTAGE | 230 V (Single Phase) |
| MAIN FREQUENCY | 50 / 60 Hz |
| Peak Spot-Welding | - |
| MAX NO_LOAD VOLTEGE | 66 V |
| MAX ABSORBED POWER | 5.2 kW |
| RATED POWER x= 50% | - |
| POWER FACTOR | - |
| MAX SPOT WELDING | 200 A |
| DUTY CYCLE | 200 A @ 35% / 130 A @ 60% |
| CURRENT CONTROL RANGE (DC) | 5 – 200 A |
| CURRENT | DC / AC |
| MAX ABSORBED CURRENT | - |
| ABSORBED CURRENT 60% | - |
| ABSORBED POWER at 60% | - |
| EFFICIENCY | 82% |
| D.USBLE ELECTRODES | 1.6 – 4.0 mm |
| PROTECTION DEGREE | IP23 |
| DIMENSIONS | 470 × 190 × 350 mm |
| WEIGHT | 16.55 kg |
| INVERTER FREQUENCY | Inverter Technology |
| MAX ELECTRODE POWER | - |
| MAX WELD.FTHICK. ON 2 SHEITHS | - |
| MAX CUTING THICKNESS | - |
| COOLING SASTEM | Air Tunnel Cooling |
| DISPLAY | LCD Display |
| GUN | TIG Torch (Optional) |
| TECHNOLOGY | TIG AC/DC، HF Start، Lift TIG، Pulse، Easy Pulse، THINSPOT، MIX AC-DC، MMA Pulse |
| STANDARDS | EN60974-1 |
