Brand: TELWIN

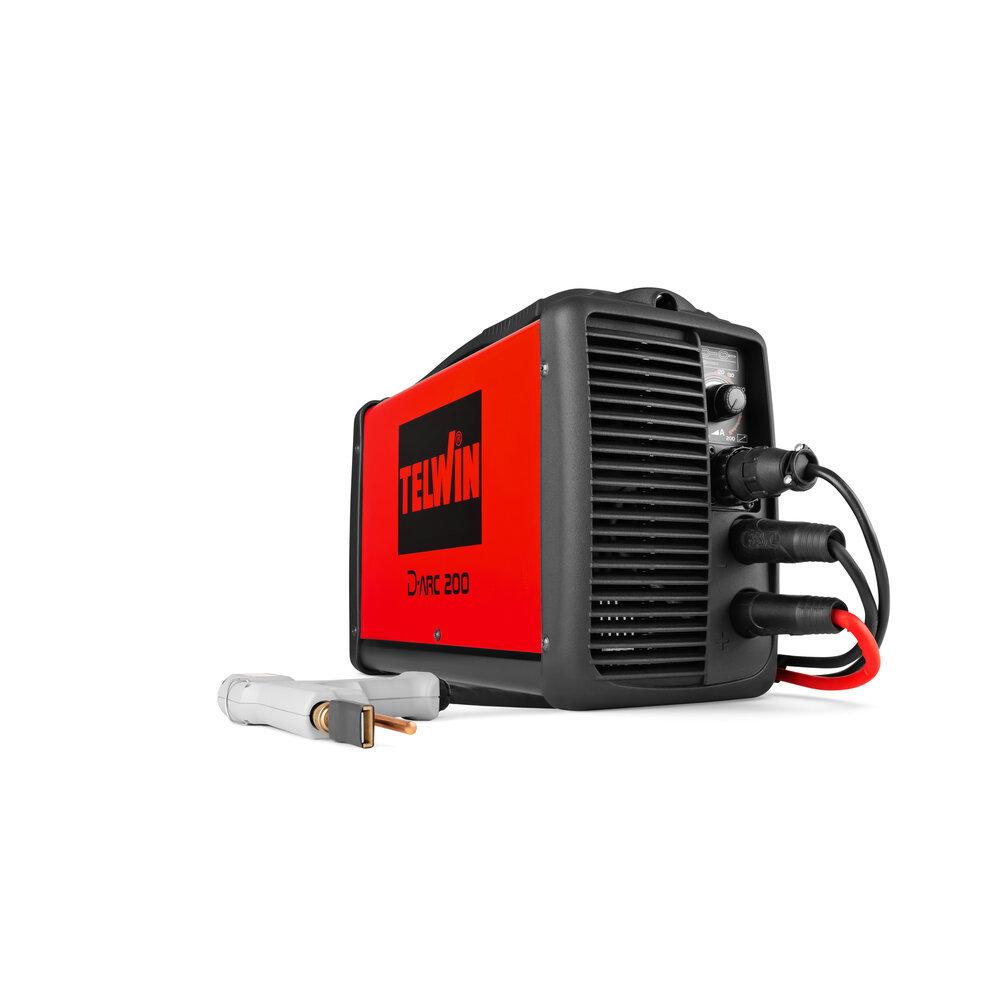

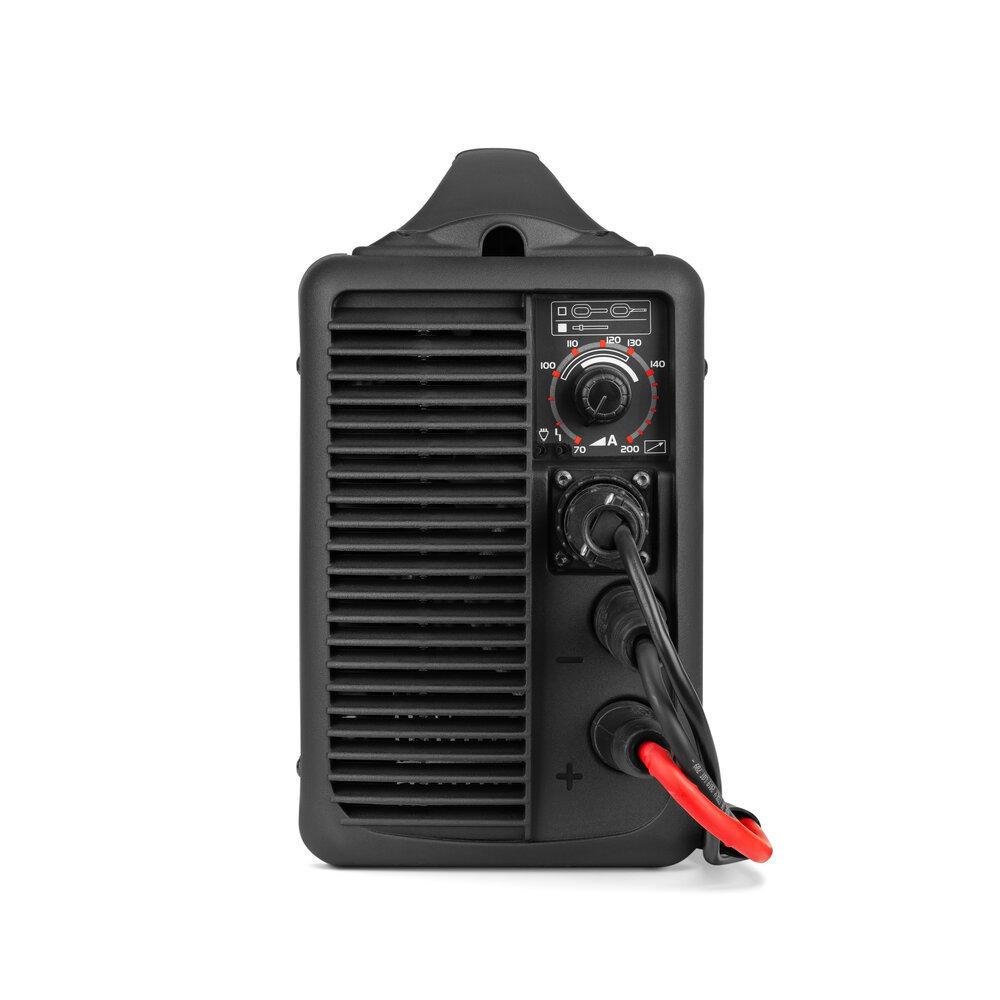

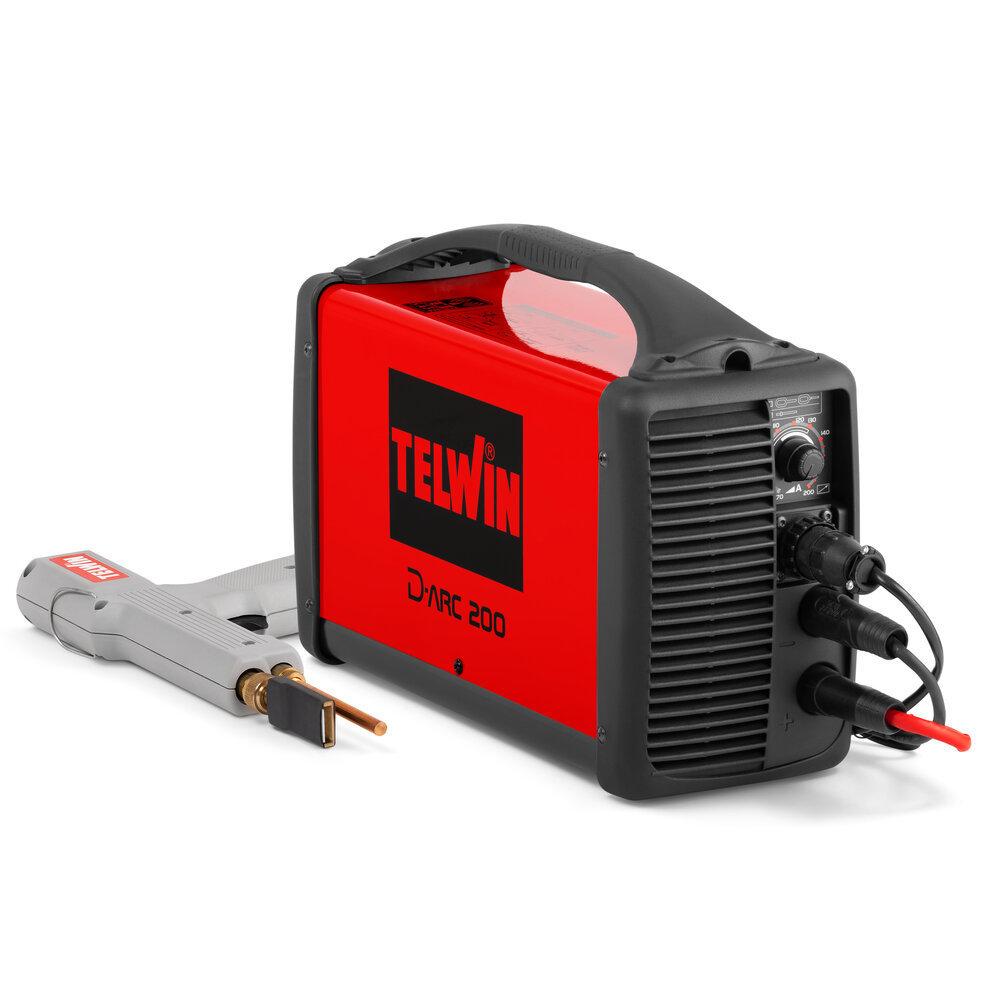

COMPARED-ARC 200 Aluminum Dent Repair Welding System
Model: D-ARC 200
Country of Origin: Italy
The D-ARC 200 by Telwin is a professional electronic system designed specifically for aluminum body repair applications. Using advanced Drawn Arc Technology, it quickly and accurately welds pull rings and studs onto aluminum panels without the need for shielding gas, making it the ideal solution for modern body shops.
Controlled by a microprocessor, the unit provides stable welding performance with adjustable current settings, while its compact design and ergonomic welding gun ensure maximum operator comfort and mobility.
Advanced Drawn Arc Technology
Designed for fast and accurate welding of pull rings and studs on aluminum body panels for efficient dent repair.
Gas-Free Welding
Performs welding operations without shielding gas, reducing operating costs and simplifying the repair process.
Intelligent Microprocessor Control
Provides precise welding current adjustment and stable arc performance for professional repair quality.
Designed for Aluminum Body Repair
Specially developed for automotive body shops working with aluminum vehicle panels.
Lightweight & Compact
Compact construction with a weight of only 7.4 kg, making transportation around the workshop effortless.
Ergonomic Welding Gun
Supplied with a lightweight ergonomic welding gun and integrated ground connection for comfortable operation.
Pull Ring & Stud Welding
Supports both aluminum pull rings and welding studs used during dent pulling operations.
Standard Power Supply
Operates on 230V single-phase power, making it suitable for most workshops.
High Efficiency
Offers 92% efficiency for reliable performance and optimized energy consumption.
Ready to Use
Supplied with a welding gun, cable assembly, and 50 aluminum pull rings for immediate operation.
| Name | - |
|---|---|
| MAIN VOLTAGE | 230 V (Single Phase) |
| MAIN FREQUENCY | 50 / 60 Hz |
| Peak Spot-Welding | 200 A |
| MAX NO_LOAD VOLTEGE | 80 V |
| MAX ABSORBED POWER | 6.3 kW |
| RATED POWER x= 50% | — |
| POWER FACTOR | 0.7 |
| MAX SPOT WELDING | 200 A |
| DUTY CYCLE | 2% |
| CURRENT CONTROL RANGE (DC) | Adjustable up to 200 A |
| CURRENT | 200 A Max |
| MAX ABSORBED CURRENT | — |
| ABSORBED CURRENT 60% | — |
| ABSORBED POWER at 60% | — |
| EFFICIENCY | 92% |
| D.USBLE ELECTRODES | Not Applicable |
| PROTECTION DEGREE | IP23 |
| DIMENSIONS | 385 × 150 × 265 مم |
| WEIGHT | 7.4 كجم |
| INVERTER FREQUENCY | — |
| MAX ELECTRODE POWER | Not Applicable |
| MAX WELD.FTHICK. ON 2 SHEITHS | Not Applicable |
| MAX CUTING THICKNESS | Not Applicable |
| COOLING SASTEM | تبريد هوائي |
| DISPLAY | LED Indicators |
| GUN | مسدس لحام D-ARC مريح |
| TECHNOLOGY | تقنية القوس المسحوب بتحكم معالج دقيق |
| STANDARDS | EN 60974-1 |
