Brand: TELWIN
COMPAREInverspotter 13500 X AQUA Resistance Spot Welding Machine |
Model: Inverspotter 13500 X AQUA
Country of Origin: Italy

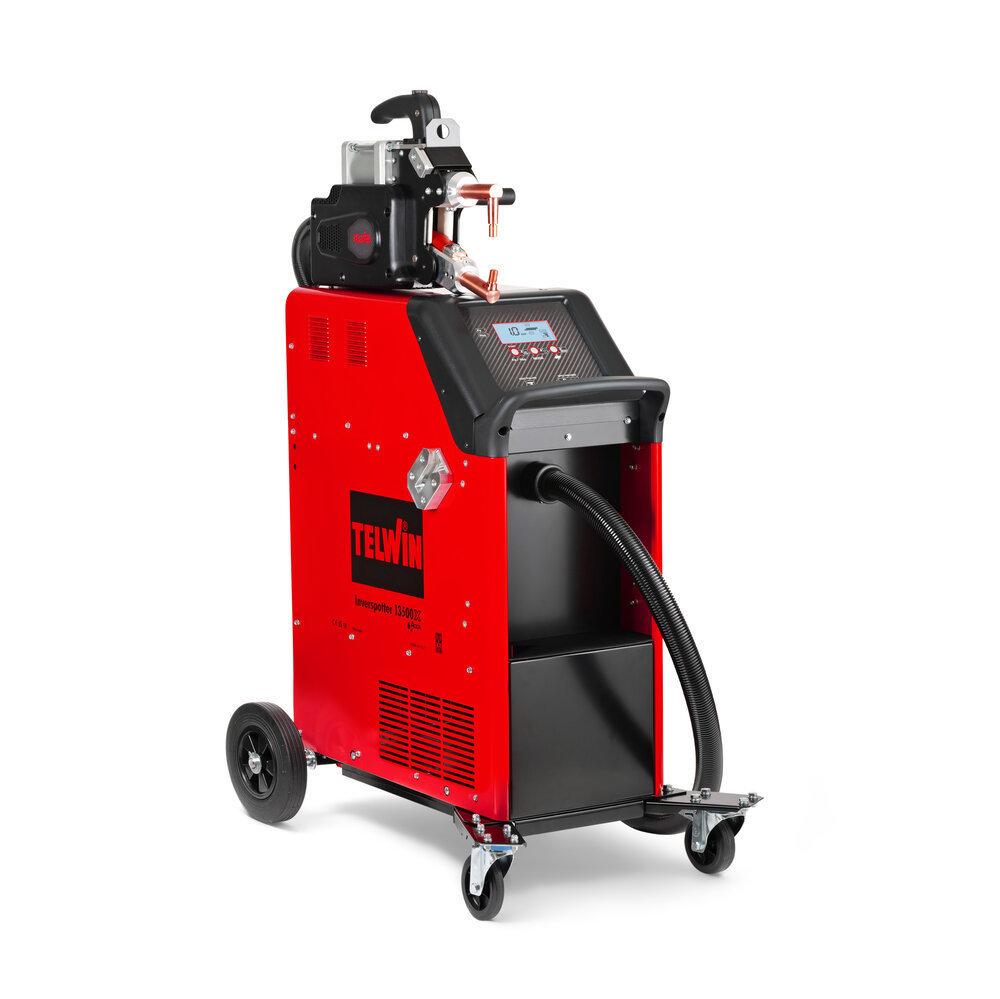

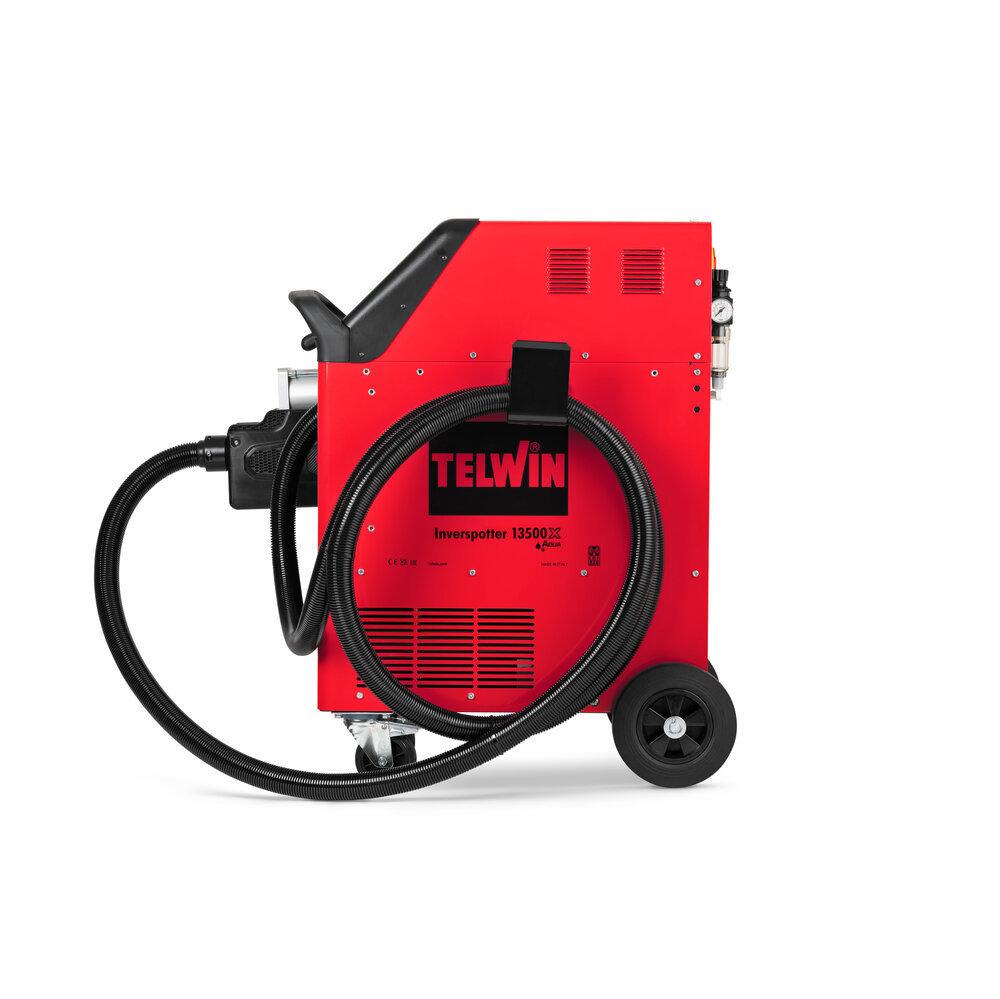

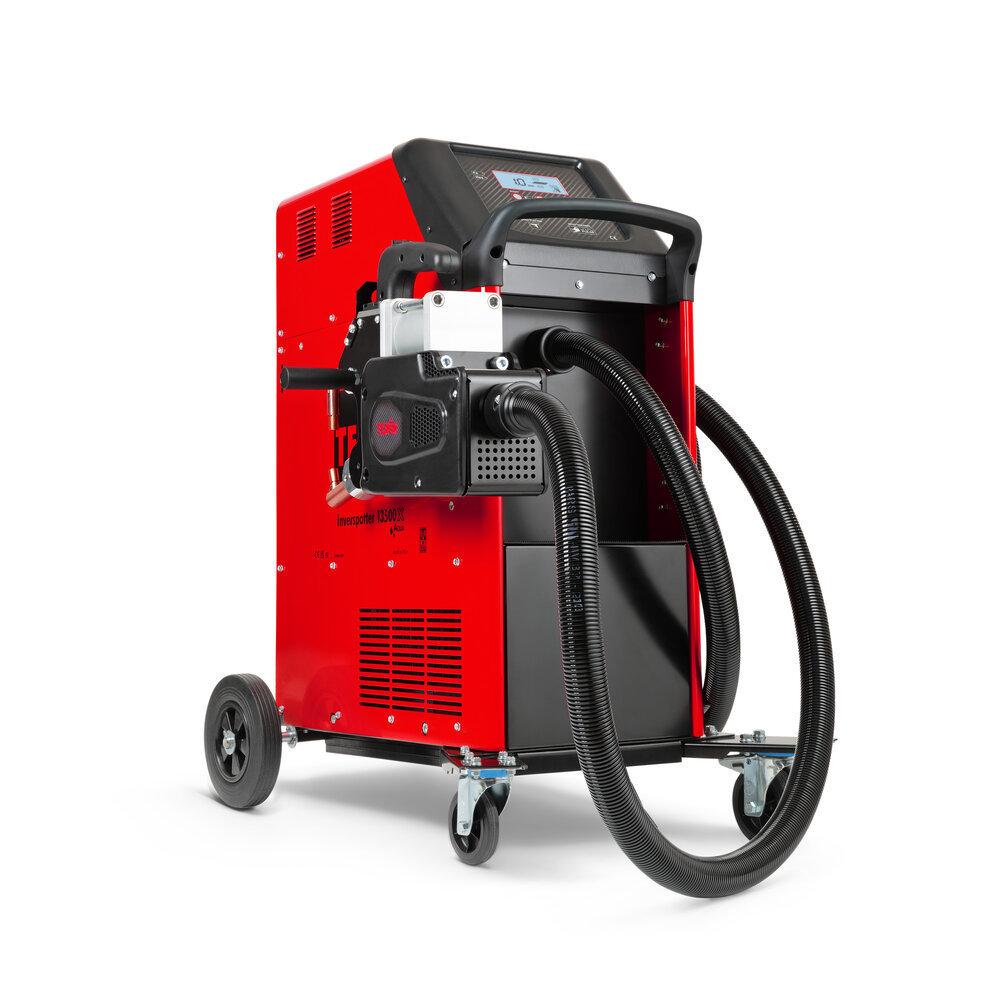

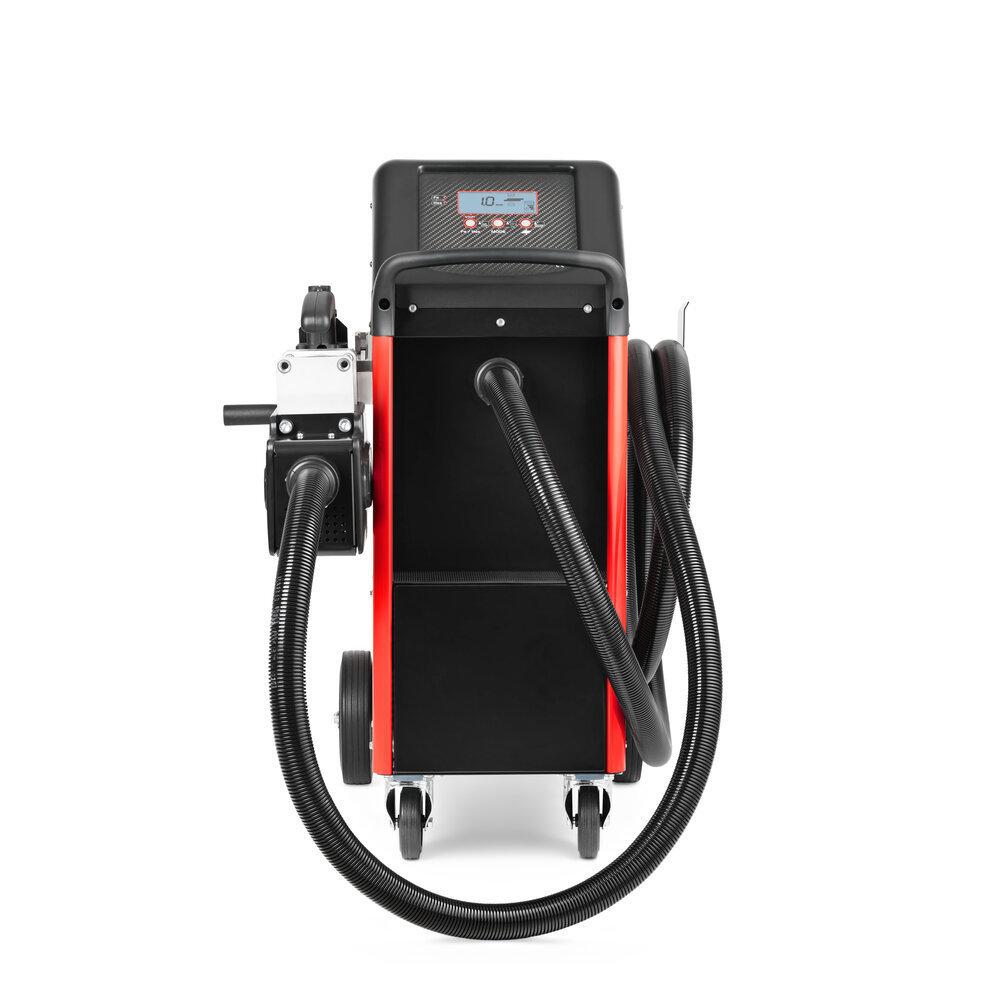

The Inverspotter 13500 X AQUA is a professional inverter resistance spot welding machine designed for automotive body repair and industrial applications. It features MFDC inverter technology, an integrated AQUA liquid cooling system, and a digital LCD control panel for precise, fast, and reliable spot welding on modern high-strength steels and galvanized panels.
MFDC Inverter Technology
Utilizes Medium Frequency Direct Current (MFDC) inverter technology to deliver high welding performance with improved energy efficiency.
AQUA Liquid Cooling System
Integrated liquid cooling unit cools both the welding gun and cables, ensuring stable performance during continuous heavy-duty operation.
POWER GUN Technology
Power circuits are integrated inside the welding gun, allowing lightweight 5-meter cables for greater operator mobility and reduced magnetic fields.
LCD Digital Control Panel
Backlit LCD display automatically adjusts welding parameters according to selected tool and material thickness while allowing manual parameter adjustment.
Squeeze & Spot Function
Ensures current is released only after proper electrode pressure is achieved, improving weld quality and reducing operator errors.
Intelligent Welding Programs
Includes dedicated programs for steel, high-strength steel (HSS), boron steel, and galvanized panels with continuous and pulse spot welding modes.
Automatic Cooling Control
Automatically monitors and controls cooling of the welding gun and cables for maximum reliability and component protection.
High Welding Performance
Produces up to 12,000 A welding current with electrode force up to 400 daN, making it suitable for modern vehicle body repairs.
| Name | - |
|---|---|
| MAIN VOLTAGE | 400 V (3 Phase) |
| MAIN FREQUENCY | 50 / 60 Hz |
| Peak Spot-Welding | 12,000 A |
| MAX NO_LOAD VOLTEGE | 9 V |
| MAX ABSORBED POWER | - |
| RATED POWER x= 50% | 8 kW |
| POWER FACTOR | - |
| MAX SPOT WELDING | 12,000 A |
| DUTY CYCLE | 50% |
| CURRENT CONTROL RANGE (DC) | Automatic / Adjustable |
| CURRENT | MFDC Welding Current |
| MAX ABSORBED CURRENT | - |
| ABSORBED CURRENT 60% | - |
| ABSORBED POWER at 60% | - |
| EFFICIENCY | High Efficiency Inverter |
| D.USBLE ELECTRODES | Standard Spot Welding Electrodes |
| PROTECTION DEGREE | IP20 |
| DIMENSIONS | 790 × 450 × 900 mm |
| WEIGHT | 74 kg |
| INVERTER FREQUENCY | 5,000 Hz |
| MAX ELECTRODE POWER | 400 daN |
| MAX WELD.FTHICK. ON 2 SHEITHS | 3 + 3 mm |
| MAX CUTING THICKNESS | - |
| COOLING SASTEM | AQUA Liquid Cooling |
| DISPLAY | Backlit LCD Display |
| GUN | Liquid-Cooled POWER GUN |
| TECHNOLOGY | MFDC Inverter Resistance Spot Welding |
| STANDARDS | Industrial / Automotive Body Repair |
