Brand: TELWIN
COMPARETechnomig 225 Dual Synergic Multi-Process Inverter Welding Machine
Model: Technomig 225 Dual Synergic
Country of Origin: Italy

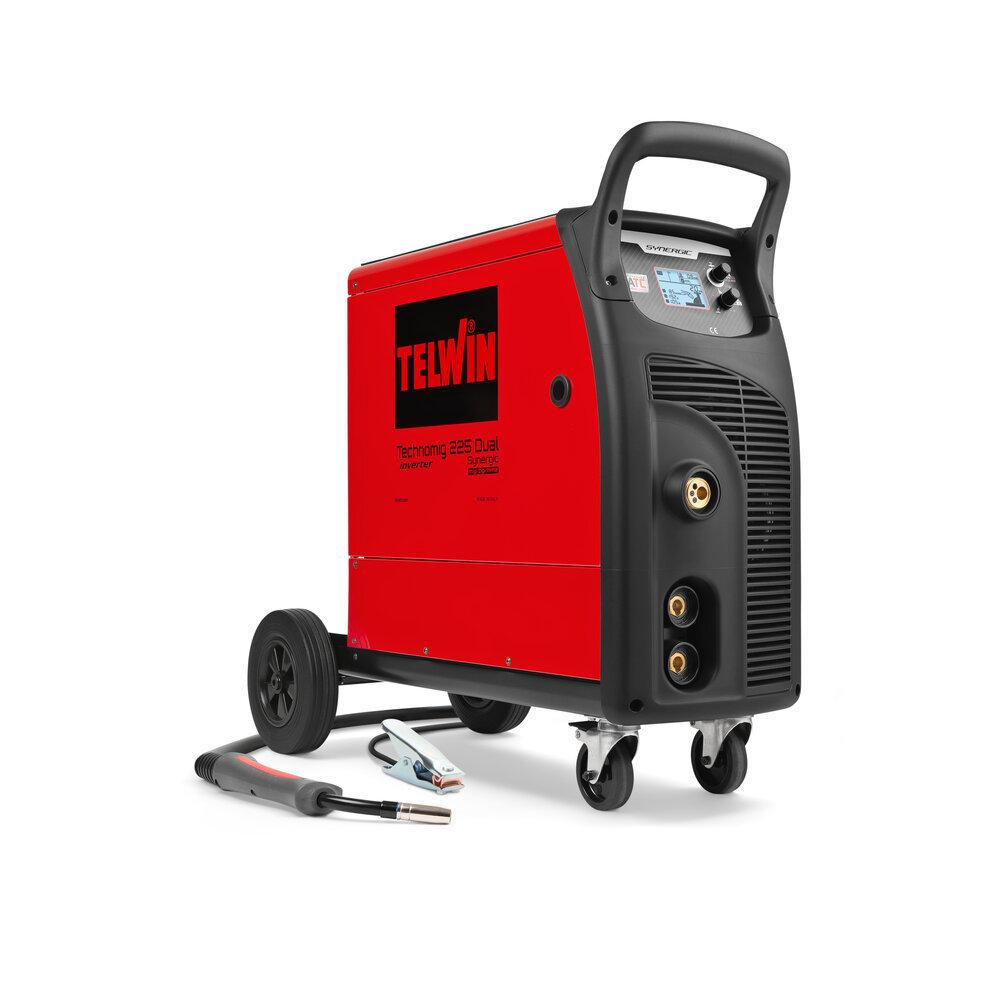

The Technomig 225 Dual Synergic is a professional multi-process inverter welding machine designed for maintenance, fabrication, automotive body repair, and industrial applications. It supports MIG-MAG, FLUX, BRAZING, MMA, and TIG DC-Lift welding processes, featuring OneTouch LCD Synergy, ATC technology, and intelligent microprocessor control for fast setup, precise welding, and outstanding performance on steel, stainless steel, aluminum, and galvanized sheets.
Multi-Process Welding
Supports MIG-MAG, FLUX, BRAZING, MMA, and TIG DC-Lift welding in one compact machine.
OneTouch LCD Synergy
Automatically sets the ideal welding parameters through an intuitive LCD interface with 27 pre-programmed synergic curves.
ATC Technology
Advanced Thermal Control improves arc stability and delivers excellent results when welding thin sheet metal.
Intelligent LCD Display
Graphic LCD screen displays voltage, current, wire speed, and welding parameters for simple operation.
Manual Arc Adjustment
Allows users to manually fine-tune arc length and welding characteristics according to their application.
Advanced MMA Functions
Includes Arc Force, Hot Start, and Anti-Stick technologies for smoother electrode welding.
Multiple Material Compatibility
Suitable for welding steel, stainless steel, aluminum, flux-cored wire, and brazing galvanized sheets.
Comprehensive Protection System
Equipped with thermal protection, over-voltage, under-voltage, over-current protection, and VRD safety system for MMA welding.
Generator Compatible
Operates safely with generators supporting ±15% voltage fluctuation.

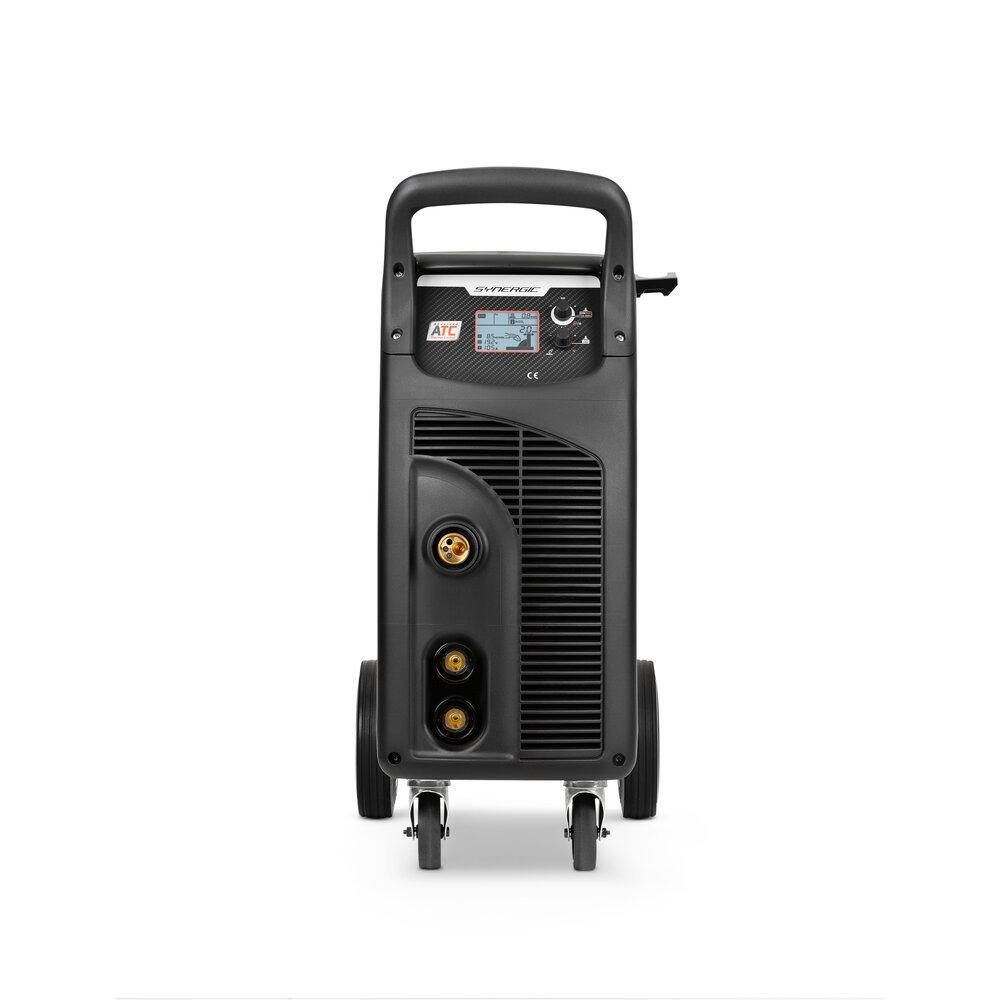

Compact & Mobile Design
Features integrated wheels and a lightweight compact body for easy transportation around the workshop.
| Name | - |
|---|---|
| MAIN VOLTAGE | 230 V (Single Phase) |
| MAIN FREQUENCY | 50 / 60 Hz |
| Peak Spot-Welding | — |
| MAX NO_LOAD VOLTEGE | — |
| MAX ABSORBED POWER | 5 kW |
| RATED POWER x= 50% | — |
| POWER FACTOR | — |
| MAX SPOT WELDING | — |
| DUTY CYCLE | 180 A @ 20% |
| CURRENT CONTROL RANGE (DC) | 20–220 A |
| CURRENT | 220 A (Max) |
| MAX ABSORBED CURRENT | — |
| ABSORBED CURRENT 60% | — |
| ABSORBED POWER at 60% | — |
| EFFICIENCY | 84% |
| D.USBLE ELECTRODES | Ø 1.6–3.2 mm |
| PROTECTION DEGREE | IP23 |
| DIMENSIONS | 795 × 375 × 730 mm |
| WEIGHT | 29.6 kg |
| INVERTER FREQUENCY | Inverter Technology |
| MAX ELECTRODE POWER | — |
| MAX WELD.FTHICK. ON 2 SHEITHS | — |
| MAX CUTING THICKNESS | — |
| COOLING SASTEM | Fan Cooling |
| DISPLAY | Graphic LCD Display |
| GUN | MT15 MIG Torch (3 m) |
| TECHNOLOGY | OneTouch LCD Synergy, ATC, Inverter |
| STANDARDS | EN60974-1 |
