Brand: TELWIN
COMPARETechnomig 233 Treo Multi-Process Inverter Welding Machine with 3 Torches
Model: Technomig 233 Treo
Country of Origin: Italy
The Technomig 233 Treo by Telwin is a professional multi-process inverter welding machine designed for automotive body repair, fabrication, and industrial applications. It supports MIG-MAG, FLUX, BRAZING, MMA, and TIG DC-Lift welding processes and features an innovative 3 Torches system, allowing operators to switch instantly between different welding wires without changing torches or wire spools. Combined with One Touch Synergy, ATC technology, and a color LCD display, it delivers fast setup, excellent welding quality, and maximum productivity.

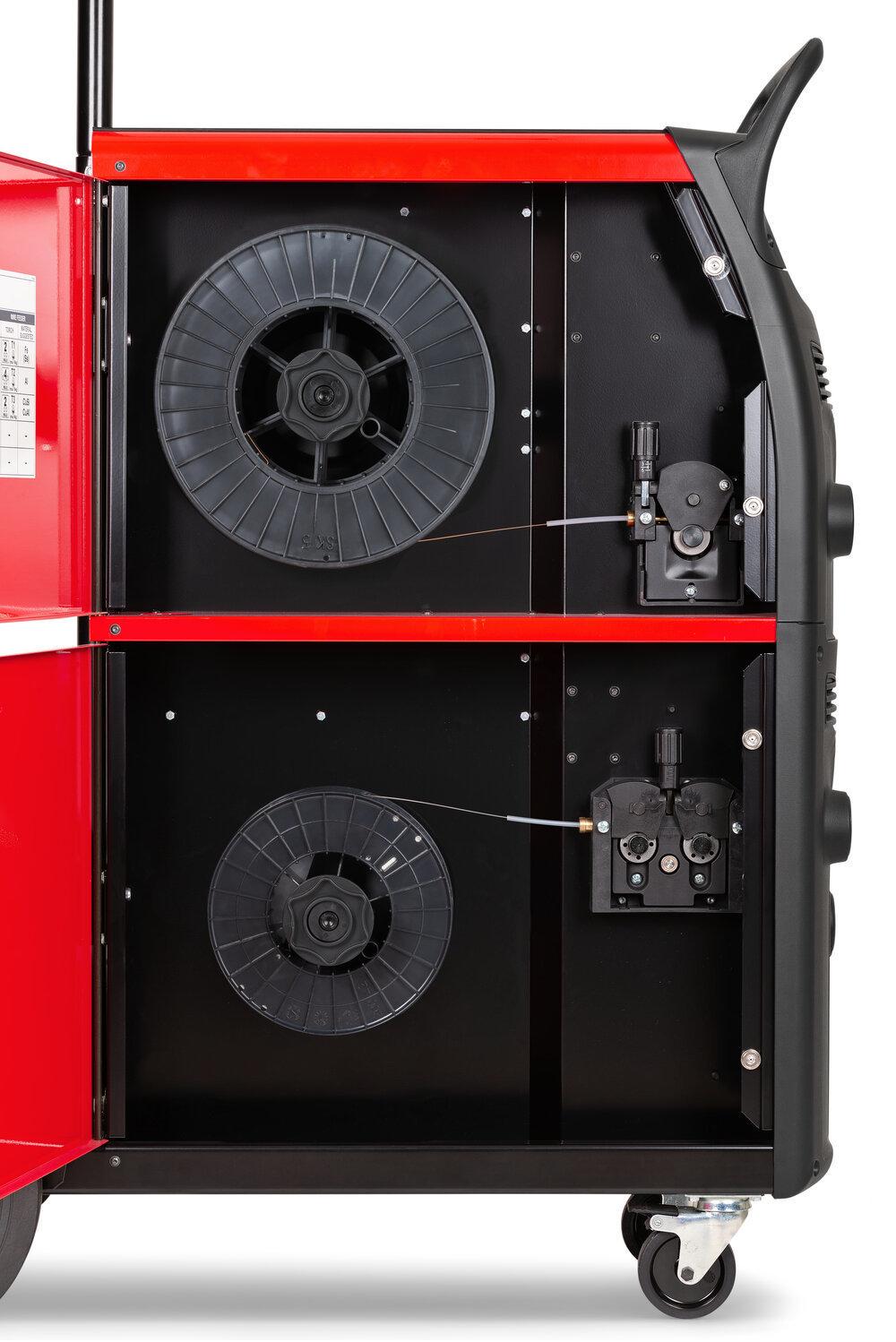

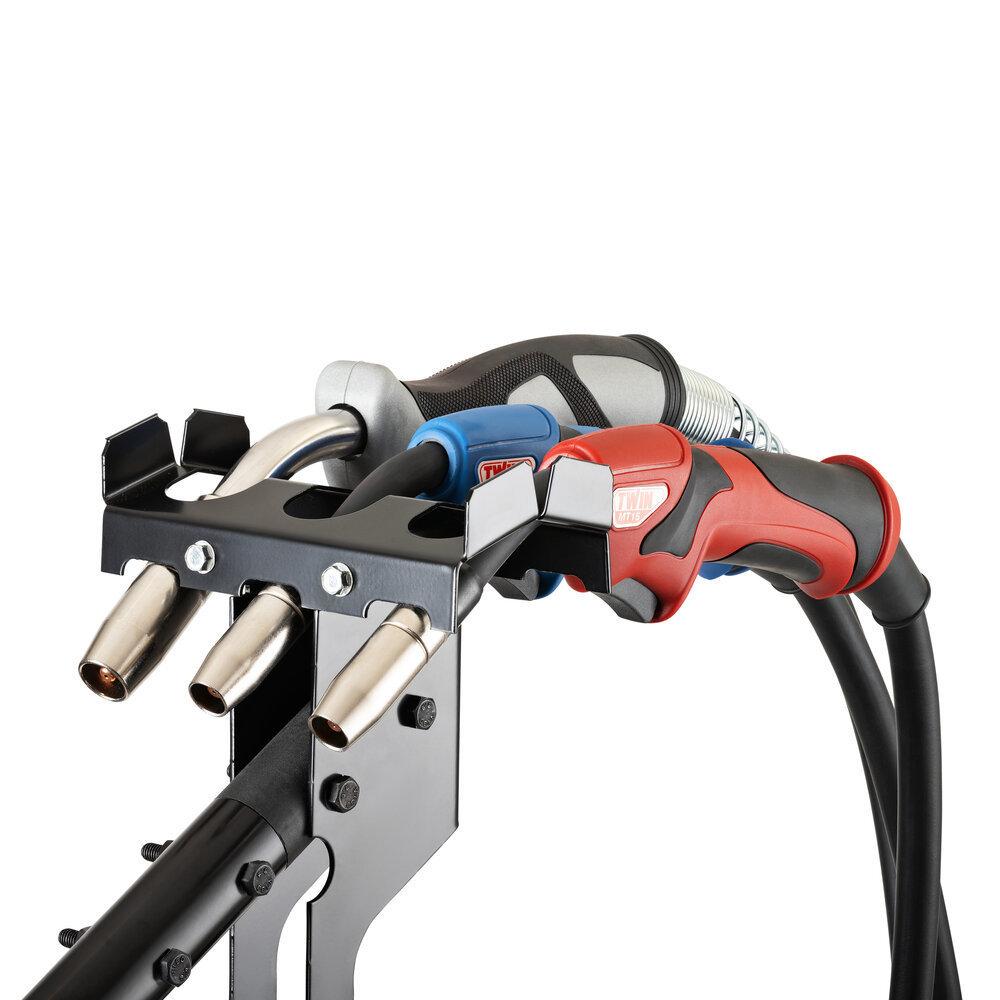

3 Torches System
Three independent torches and wire feeders allow instant switching between different welding materials and wire sizes.
Multi-Process Welding
Supports MIG-MAG, FLUX, BRAZING, MMA, and TIG DC-Lift welding in a single machine.
One Touch Synergy
Automatically optimizes welding parameters according to the selected material and thickness.
Advanced Thermal Control (ATC)
Provides precise arc control for superior weld quality, especially on thin sheet metals.

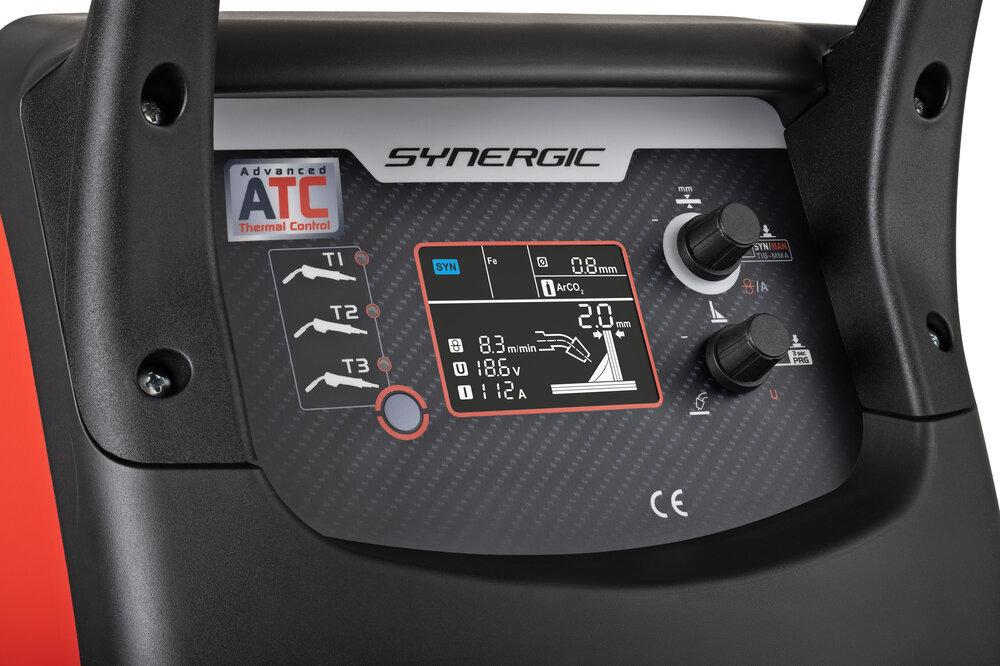

Color LCD Display
Displays welding parameters and machine settings clearly for easy operation.
Automatic Torch Recognition
Automatically detects the active torch and applies the appropriate welding parameters.
Advanced Parameter Adjustment
Includes 27 synergic curves with adjustable wire feed speed, arc length, burn-back time, and post-gas settings.
Comprehensive Protection Systems
Equipped with overvoltage, undervoltage, overcurrent, and thermal protection systems.
Practical Mobile Design
Heavy-duty wheels and an integrated torch holder provide excellent mobility and workshop convenience.
| Name | - |
|---|---|
| MAIN VOLTAGE | 230 V (Single Phase) |
| MAIN FREQUENCY | 50/60 Hz |
| Peak Spot-Welding | - |
| MAX NO_LOAD VOLTEGE | 52 V |
| MAX ABSORBED POWER | 5 kW |
| RATED POWER x= 50% | - |
| POWER FACTOR | - |
| MAX SPOT WELDING | 220 A |
| DUTY CYCLE | 180 A @ 20% / 100 A @ 60% |
| CURRENT CONTROL RANGE (DC) | 20–220 A |
| CURRENT | DC |
| MAX ABSORBED CURRENT | - |
| ABSORBED CURRENT 60% | - |
| ABSORBED POWER at 60% | - |
| EFFICIENCY | 85% |
| D.USBLE ELECTRODES | 1.6 – 4.0 mm |
| PROTECTION DEGREE | IP23 |
| DIMENSIONS | 870 × 530 × 1665 mm |
| WEIGHT | 61 kg |
| INVERTER FREQUENCY | Inverter Technology |
| MAX ELECTRODE POWER | - |
| MAX WELD.FTHICK. ON 2 SHEITHS | - |
| MAX CUTING THICKNESS | - |
| COOLING SASTEM | Air Cooling |
| DISPLAY | Color LCD Display |
| GUN | 3 MIG Torches |
| TECHNOLOGY | One Touch Synergy, ATC, Multiprocess Inverter |
| STANDARDS | EN60974-1 |
